/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, FF-Face, W22/00736ET3YAL132SFF-W22 WEG 10HP/7.5kW IEC Tru-Metric Electric Motor, 3600RPM

Product ID: 00736ET3YAL132SFF-W2

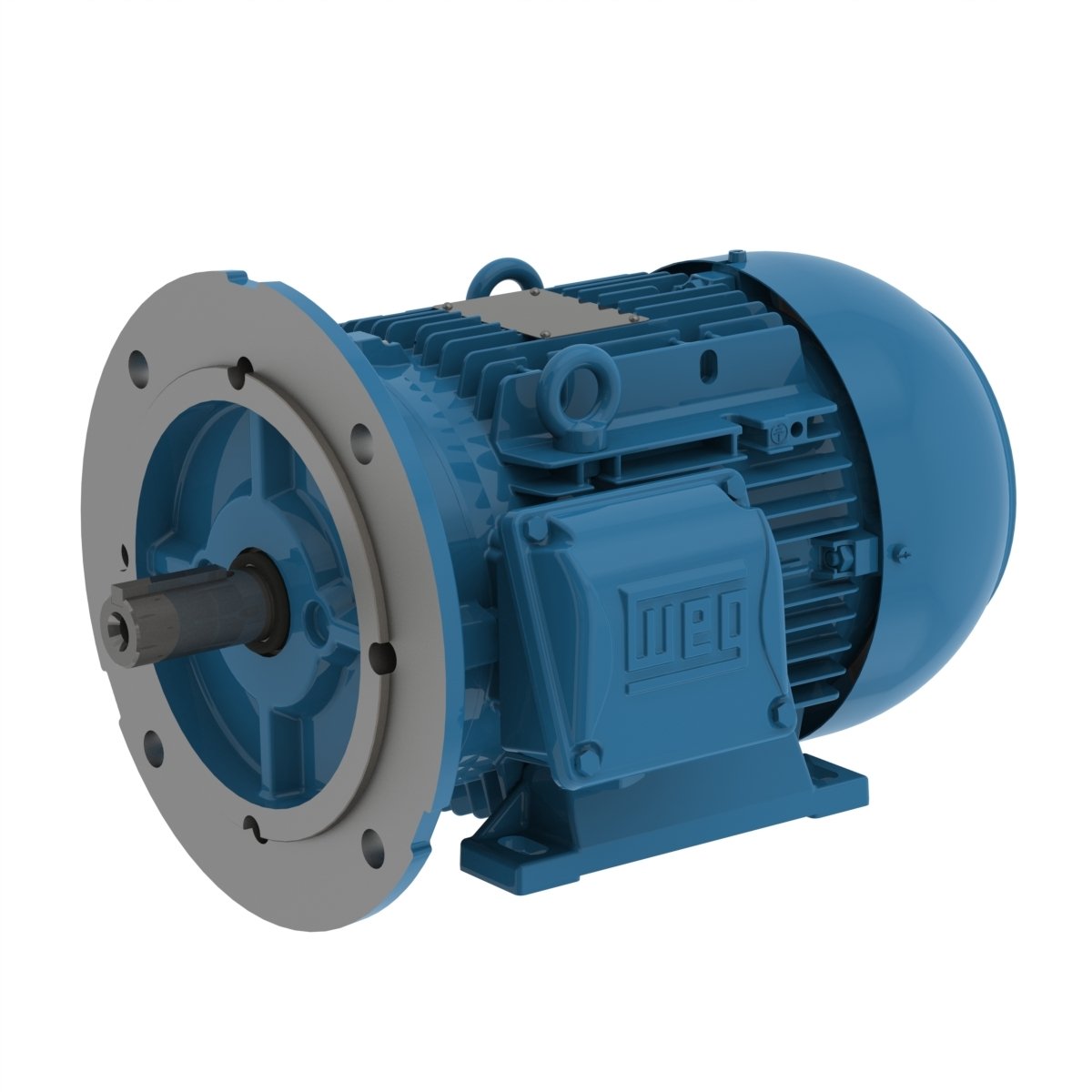

00736ET3YAL132SFF-W22 WEG 10HP/7.5kW IEC Tru-Metric Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736ET3YAL132SFF-W22

Selected accessories will also be added to cart

$1,028.25 / Each

Quantity:

IC411-TEFC, IP55, 132S Frame, 460/380-415VAC 3-Phase 50/60Hz, 14052130, Foot Mounted, FF-Flange, 38mm Keyed Shaft, Aluminum Frame, Multimounting

Details
Purchase Components

Electric Motors

Frame	132S
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2925 rpm
Slip	2.50 %
Rated voltage	380 V
Rated current	14.3 A
L. R. Amperes	122 A
LRC	8.5
No load current	4.70 A
Rated torque	17.7 ft.lb
Locked rotor torque	260 %
Breakdown torque	300 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.5980 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	158 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.6	90.6	90.6

Power factor

50%	75%	100%
0.74	0.84	0.88

Frame	132S
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	400 V
Rated current	13.9 A
L. R. Amperes	118 A
LRC	8.5
No load current	5.20 A
Rated torque	17.7 ft.lb
Locked rotor torque	300 %
Breakdown torque	340 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.5980 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	158 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.1	90.5	90.8

Power factor

50%	75%	100%
0.69	0.80	0.86

Frame	132S
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2940 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	13.8 A
L. R. Amperes	117 A
LRC	8.5
No load current	5.60 A
Rated torque	17.6 ft.lb
Locked rotor torque	330 %
Breakdown torque	370 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.5980 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	158 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.6	90.3	90.8

Power factor

50%	75%	100%
0.65	0.77	0.83

Frame	132S
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3540 rpm
Slip	1.67 %
Rated voltage	460 V
Rated current	12.3 A
L. R. Amperes	119 A
LRC	9.7
No load current	4.80 A
Rated torque	14.6 ft.lb
Locked rotor torque	330 %
Breakdown torque	440 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.5980 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	158 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	89.5	90.2

Power factor

50%	75%	100%
0.68	0.79	0.85

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM32x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
