/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/C-Face, Foot Mount/00736ET3E184TC-S WEG 7.5HP General Purpose Electric Motor, 3600RPM

Product ID: 00736ET3E184TC-S

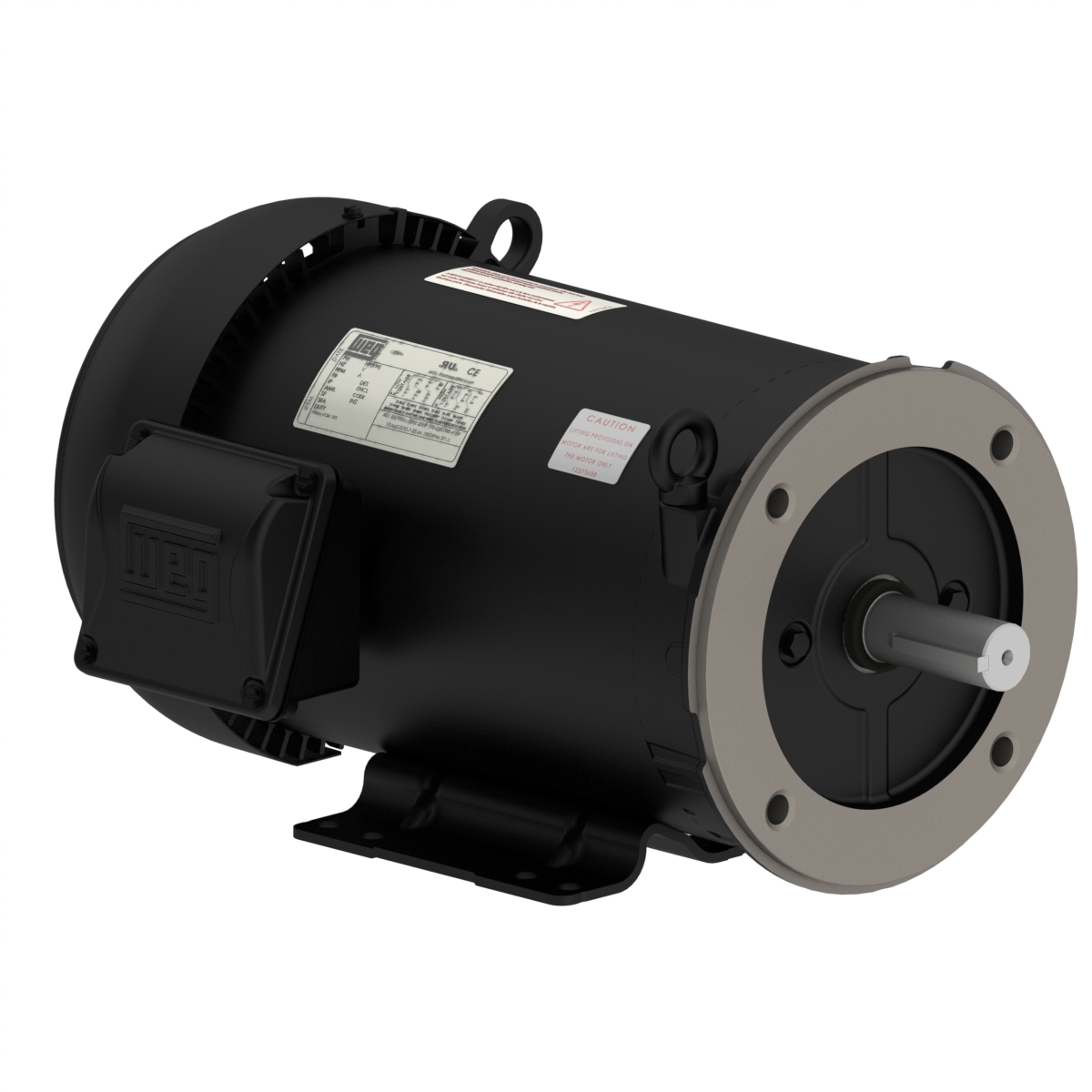

00736ET3E184TC-S WEG 7.5HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736ET3E184TC-S

Selected accessories will also be added to cart

$738.75 / Each

Quantity:

IC411 - TEFC, IP55, 182TC/184TC Frame. 208-230/460V 3-Phase 60Hz, 12837722, C-Face, Foot Mount, NEMA Premium Efficiency, 1-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	182/4TC
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3480 rpm
Slip	3.33 %
Rated voltage	208-230/460 V
Rated current	19.0-17.1/8.57 A
L. R. Amperes	146-132/66.0 A
LRC	7.7x(Code H)
No load current	5.24-6.07/3.04 A
Rated torque	11.2 ft.lb
Locked rotor torque	270 %
Breakdown torque	360 %
Locked rotor time	34s (cold) 19s (hot)

Moment of inertia (J)	0.1913 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	94.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.77	0.86	0.90

Frame	182/4TC
Output	5.5 HP (4 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2895 rpm
Slip	3.50 %
Rated voltage	190/380 V
Rated current	15.3/7.65 A
L. R. Amperes	129/64.3 A
LRC	8.4x(Code J)
No load current	5.98/2.99 A
Rated torque	9.84 ft.lb
Locked rotor torque	310 %
Breakdown torque	380 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	0.1913 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	65.0 dB(A)
Approx. weight³	94.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.4	90.0	89.3

Power factor

50%	75%	100%
0.74	0.84	0.89

Frame	182/4TC
Output	5.5 HP (4 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	220/415 V
Rated current	13.8/7.29 A
L. R. Amperes	129/68.5 A
LRC	9.4x(Code K)
No load current	6.70/3.55 A
Rated torque	9.79 ft.lb
Locked rotor torque	390 %
Breakdown torque	470 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.1913 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	65.0 dB(A)
Approx. weight³	94.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.9	89.8

Power factor

50%	75%	100%
0.66	0.78	0.85

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
