/Products/Electric Motors/3 Phase/WEG/Saw Arbor/Left Hand Thread/00736ES3ESA80LL WEG 7.5HP Saw Arbor Electric Motor, 3600RPM

Product ID: 00736ES3ESA80LL

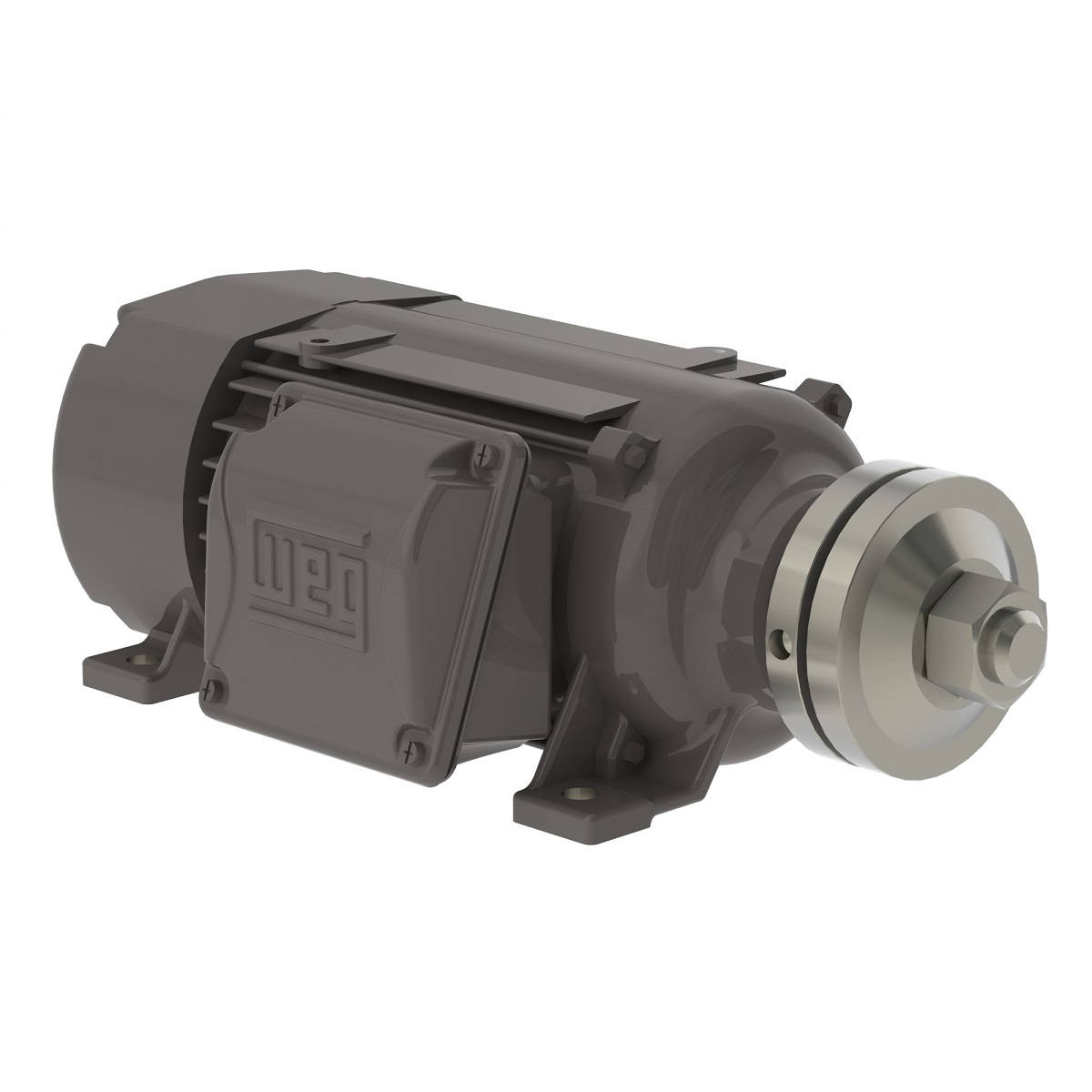

00736ES3ESA80LL WEG 7.5HP Saw Arbor Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736ES3ESA80LL

Selected accessories will also be added to cart

$1,231.50 / Each

Quantity:

IC411 - TEFC, IP54, 80L/MS Frame, 208-230/460VAC 60Hz 3 Phase, 13574406, M30x3.5mm LH Threads

Details
Purchase Components

Electric Motors

Frame	80L/MS
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3490 rpm
Slip	3.06 %
Rated voltage	208-230/460 V
Rated current	21.6-19.5/9.76 A
L. R. Amperes	199-179/89.8 A
LRC	9.2
No load current	7.59-8.80/4.40 A
Rated torque	11.3 ft.lb
Locked rotor torque	400 %
Breakdown torque	459 %
Locked rotor time	9s (cold) 5s (hot)

Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S6
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP54
Enclosure	IC411 - TEFC
Mounting	B3R(D)
Rotation¹	CW
Noise level²	62.0 dB(A)
Approx. weight³	120 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.2	87.0	87.4

Power factor

50%	75%	100%
0.64	0.75	0.81

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	RWG(Rp) 1"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 7022 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
