Product ID: 00736AP3EGD184TZ-S

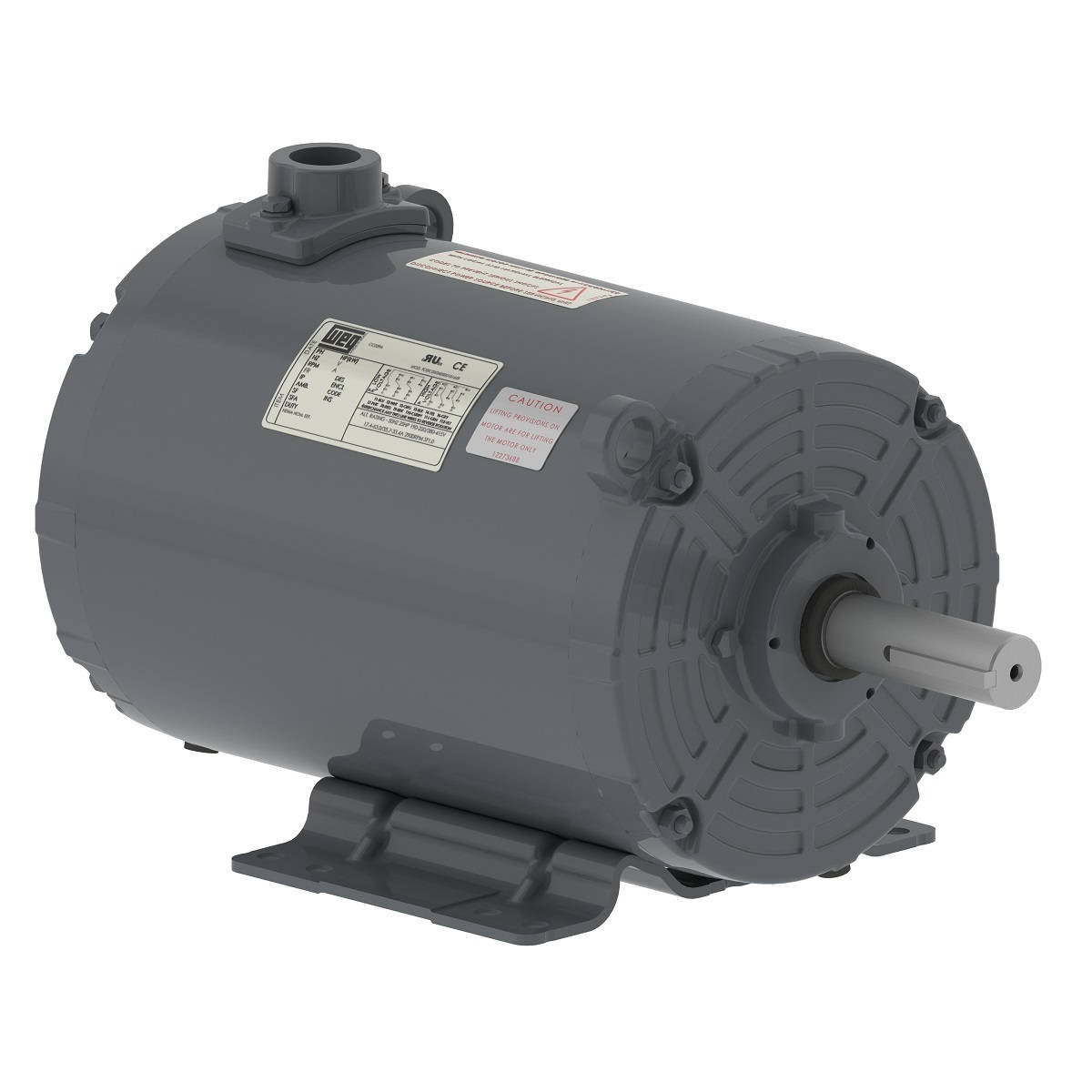

00736AP3EGD184TZ-S WEG 5/7.5HP Grain Dryer Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736AP3EGD184TZ-S

Selected accessories will also be added to cart

$699.75 / Each

Quantity:

3600RPM, RS-Epact, 182TZ/184TZ Frame, 208-230/460VAC 60Hz 3-Phase, IC410-TEAO, 13237739, Foot Mounted, Rolled Steel, 1-1/8" Shaft

Details
Purchase Components

Electric Motors

Frame	182/4TZ
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3535 rpm
Slip	1.81 %
Rated voltage	208-230/460 V
Rated current	14.3-12.9/6.45 A
L. R. Amperes	160-144/72.2 A
LRC	11.2x(Code N)
No load current	0.000-7.32/3.66 A
Rated torque	7.33 ft.lb
Locked rotor torque	390 %
Breakdown torque	520 %

Locked rotor time	18s (cold) 10s (hot)
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-3
Rotation¹	CCW
Approx. weight³	69.1 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
83.6	86.7	87.8

Power factor

50%	75%	100%
0.61	0.74	0.82

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting
Grounding Lugs	Superior
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermostat - 2 wires 1 per phase 155°C
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
