/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/JM Close-Coupled Pump/JM, ODP/00718OT3H213JM-S WEG 7.5HP JM Close-Coupled Pump Electric Motor, 1800RPM

Product ID: 00718OT3H213JM-S

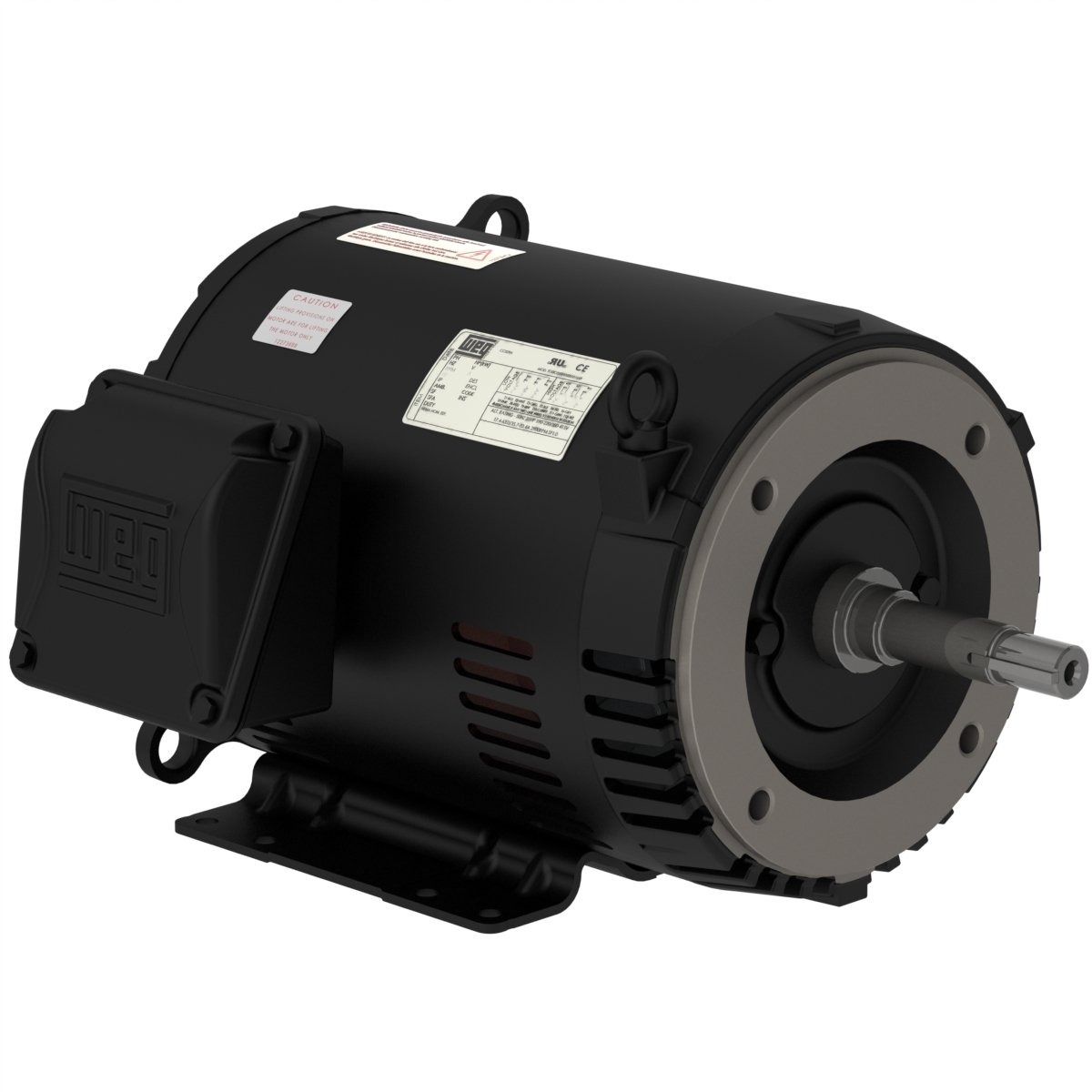

00718OT3H213JM-S WEG 7.5HP JM Close-Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00718OT3H213JM-S

Selected accessories will also be added to cart

$840.00 / Each

Quantity:

IC01 - ODP, 213JM/215JM Frame, 575VAC 3-Phase 60Hz, 12676981, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	213/5JM
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1770 rpm
Slip	1.67 %
Rated voltage	575 V
Rated current	7.40 A
L. R. Amperes	53.3 A
LRC	7.2x(Code H)
No load current	3.51 A
Rated torque	22.0 ft.lb
Locked rotor torque	240 %
Breakdown torque	320 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	1.03 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	125 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	90.2	91.0

Power factor

50%	75%	100%
0.65	0.77	0.82

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
