/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/00718ET3Y132M-W22 WEG 10HP/7.5kW IEC TRU-Metric Electric Motor, 1800RPM

Product ID: 00718ET3Y132M-W22

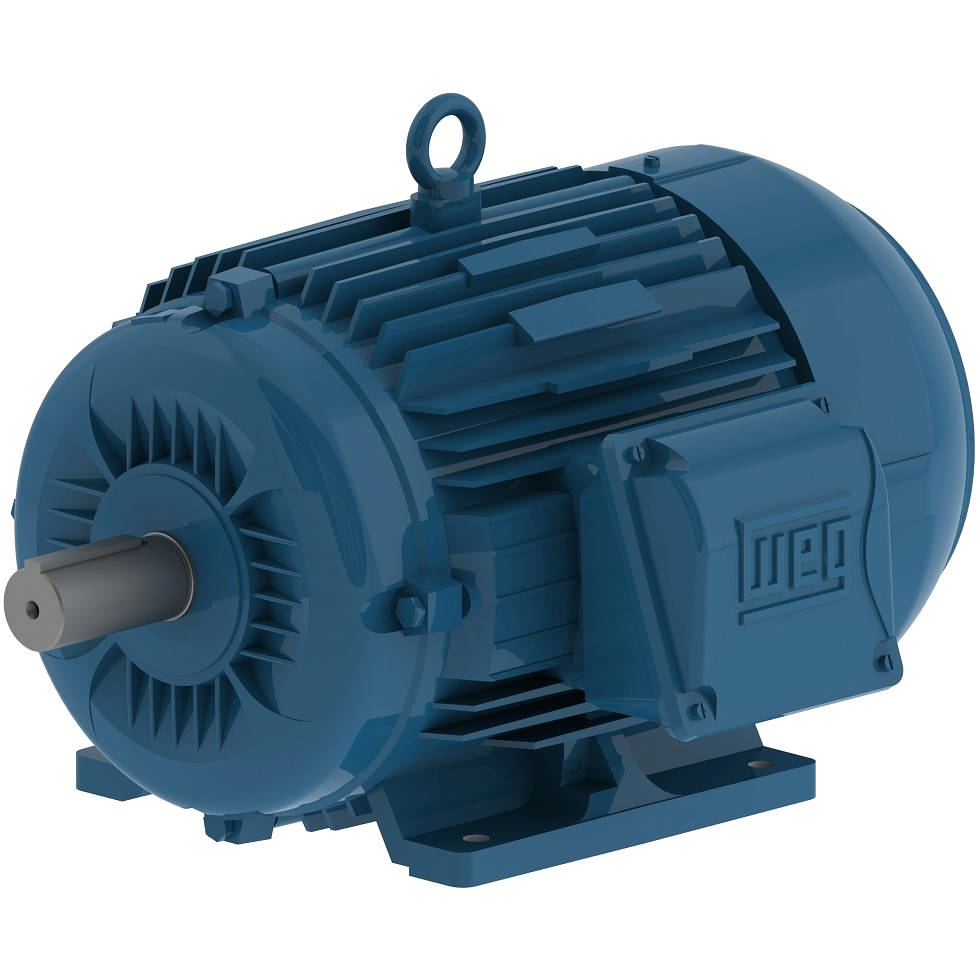

00718ET3Y132M-W22 WEG 10HP/7.5kW IEC TRU-Metric Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00718ET3Y132M-W22

Selected accessories will also be added to cart

$851.25 / Each

Quantity:

IC411 - TEFC, IP55, 132M Frame, 460/380-415VAC 60Hz 3 Phase, 11564381, B3L(E) Mounting, Foot Mounted, Cast Iron Frame, 38mm Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	132M
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1770 rpm
Slip	1.67 %
Rated voltage	460 V
Rated current	12.4 A
L. R. Amperes	130 A
LRC	10.5
No load current	6.30 A
Rated torque	29.7 ft.lb
Locked rotor torque	270 %
Breakdown torque	430 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	1.52 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	58.0 dB(A)
Approx. weight³	178 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	91.7

Power factor

50%	75%	100%
0.65	0.77	0.83

Frame	132M
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	380 V
Rated current	14.4 A
L. R. Amperes	122 A
LRC	8.5
No load current	6.20 A
Rated torque	36.0 ft.lb
Locked rotor torque	220 %
Breakdown torque	300 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	1.52 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	178 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.4	91.5	91.2

Power factor

50%	75%	100%
0.72	0.82	0.86

Frame	132M
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	400 V
Rated current	14.1 A
L. R. Amperes	134 A
LRC	9.5
No load current	6.70 A
Rated torque	35.8 ft.lb
Locked rotor torque	250 %
Breakdown torque	340 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	1.52 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	178 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.5	91.5

Power factor

50%	75%	100%
0.68	0.79	0.84

Frame	132M
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	13.7 A
L. R. Amperes	137 A
LRC	10.0
No load current	7.20 A
Rated torque	35.7 ft.lb
Locked rotor torque	280 %
Breakdown torque	370 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	1.52 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	178 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.5	91.4	91.7

Power factor

50%	75%	100%
0.64	0.76	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM32x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
