/Products/Electric Motors/3 Phase/WEG/Farm Duty/Irrigation Duty/00718ET3EID213TC-W22 WEG 7.5HP Irrigation Duty Electric Motor, 1800RPM

Product ID: 00718ET3EID213TC-W22

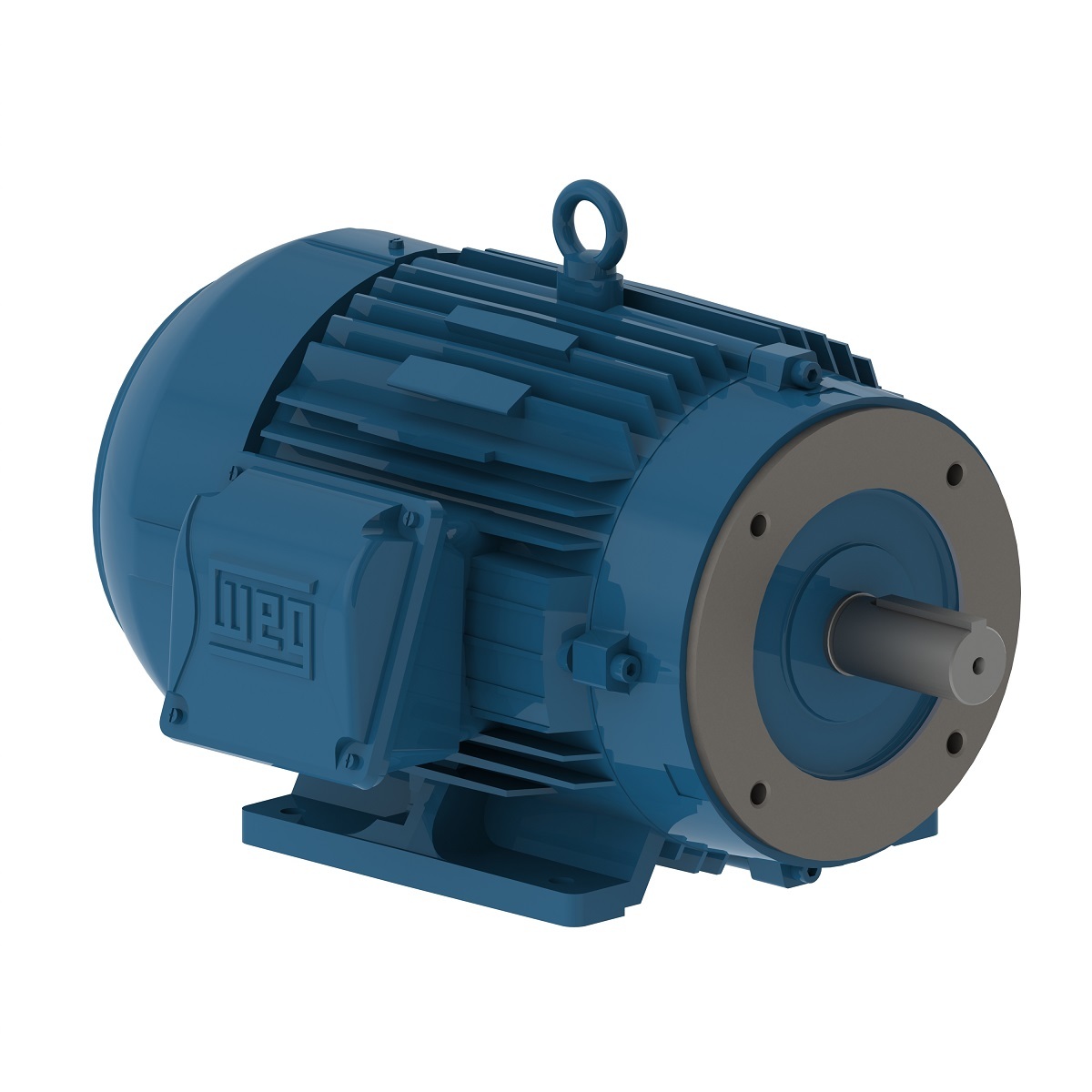

00718ET3EID213TC-W22 WEG 7.5HP Irrigation Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00718ET3EID213TC-W22

Selected accessories will also be added to cart

$901.50 / Each

Quantity:

IC411 - TEFC, 213TC/215TC Frame, 208-230/460VAC 60Hz, 380VAC 50Hz 3-Phase, C-Face, Foot Mount, Cast Iron Frame, 12809031, NEMA Premium Efficiency, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	208-230/460 V
Rated current	19.9-18.4/9.18 A
L. R. Amperes	141-130/65.2 A
LRC	7.1x(Code H)
No load current	7.59-8.80/4.40 A
Rated torque	22.0 ft.lb
Locked rotor torque	220 %
Breakdown torque	310 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	1.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	58.0 dB(A)
Approx. weight³	170 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	91.0	91.7

Power factor

50%	75%	100%
0.66	0.76	0.82

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	11.0 A
L. R. Amperes	61.6 A
LRC	5.6x(Code F)
No load current	4.00 A
Rated torque	26.7 ft.lb
Locked rotor torque	170 %
Breakdown torque	240 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	1.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	170 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	89.5	89.6

Power factor

50%	75%	100%
0.72	0.81	0.85

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	10.5 A
L. R. Amperes	65.1 A
LRC	6.2x(Code G)
No load current	4.30 A
Rated torque	26.6 ft.lb
Locked rotor torque	190 %
Breakdown torque	270 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	1.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	170 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	90.2	90.2

Power factor

50%	75%	100%
0.69	0.78	0.84

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	10.3 A
L. R. Amperes	69.0 A
LRC	6.7x(Code H)
No load current	4.55 A
Rated torque	26.6 ft.lb
Locked rotor torque	210 %
Breakdown torque	290 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	1.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	170 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	90.2	90.2

Power factor

50%	75%	100%
0.66	0.76	0.82

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Cast Iron
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
