/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/JM, TEFC/00712ET3E254JM-S WEG 7.5HP JM Close Coupled Pump Electric Motor, 1200RPM

Product ID: 00712ET3E254JM-S

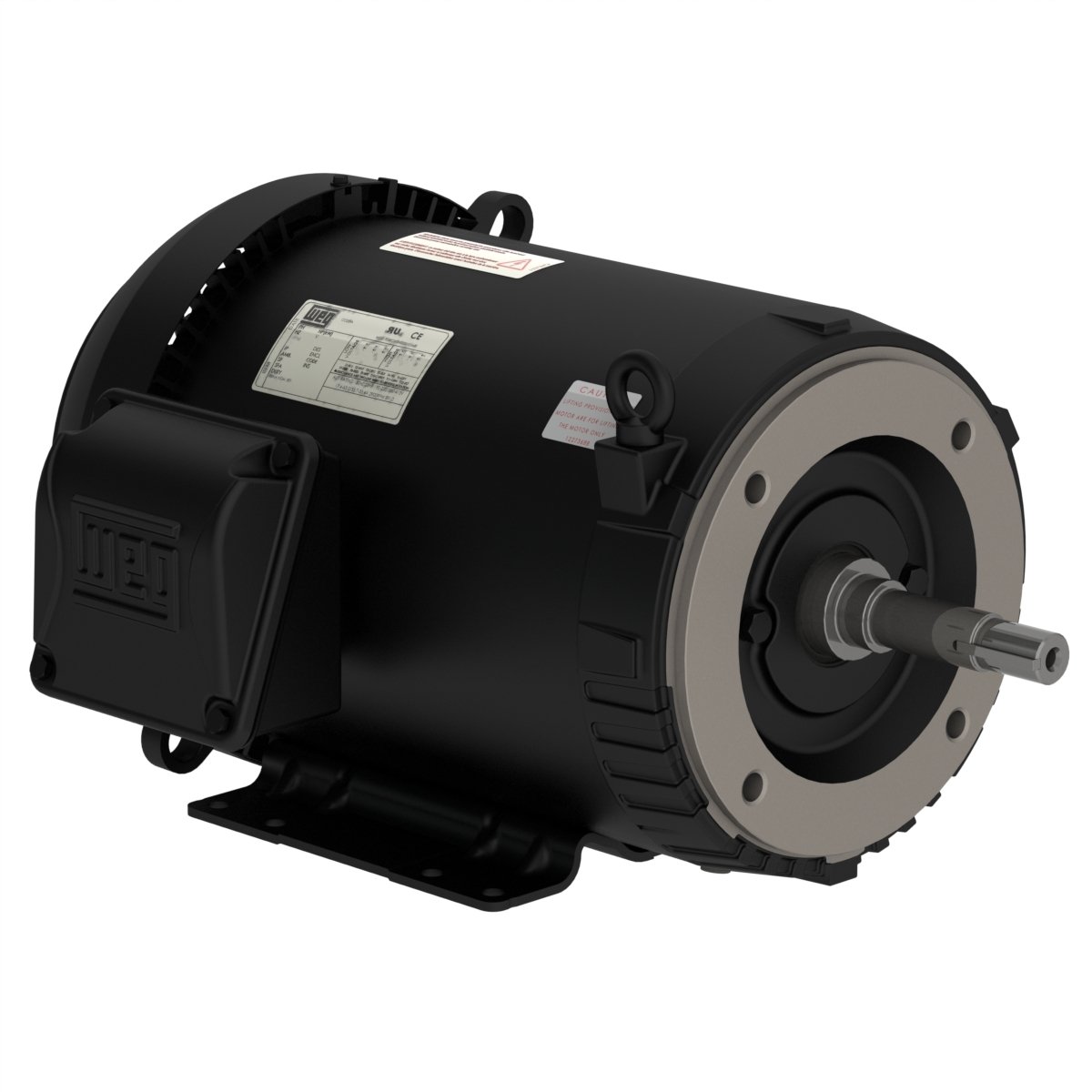

00712ET3E254JM-S WEG 7.5HP JM Close Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00712ET3E254JM-S

Selected accessories will also be added to cart

$1,841.25 / Each

Quantity:

IC411 - TEFC, IP55, 254JM/256JM Frame, 208-230/460VAC 3-Phase 50/60Hz, 12880366, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	254/6JM
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	208-230/460 V
Rated current	22.1-20.0/9.98 A
L. R. Amperes	119-108/53.9 A
LRC	5.4x(Code G)
No load current	8.66-10.1/5.03 A
Rated torque	33.1 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	75s (cold) 42s (hot)

Moment of inertia (J)	2.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	224 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	89.5	91.0

Power factor

50%	75%	100%
0.58	0.70	0.76

Frame	254/6JM
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	965 rpm
Slip	3.50 %
Rated voltage	190/380 V
Rated current	24.0/12.0 A
L. R. Amperes	101/50.4 A
LRC	4.2x(Code D)
No load current	9.92/4.96 A
Rated torque	40.3 ft.lb
Locked rotor torque	150 %
Breakdown torque	180 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	2.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	224 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.9	89.5	88.0

Power factor

50%	75%	100%
0.65	0.75	0.79

Frame	254/6JM
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	220/415 V
Rated current	21.3/11.3 A
L. R. Amperes	109/57.6 A
LRC	5.1x(Code F)
No load current	10.6/5.64 A
Rated torque	39.9 ft.lb
Locked rotor torque	190 %
Breakdown torque	220 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	2.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	224 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.4	89.8	89.0

Power factor

50%	75%	100%
0.58	0.70	0.76

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	1.732"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Superior
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
