/Products/Electric Motors/3 Phase/WEG/Compressor Duty/00536OS3ECD56-S WEG 5HP Compressor Duty Electric Motor, 3600RPM

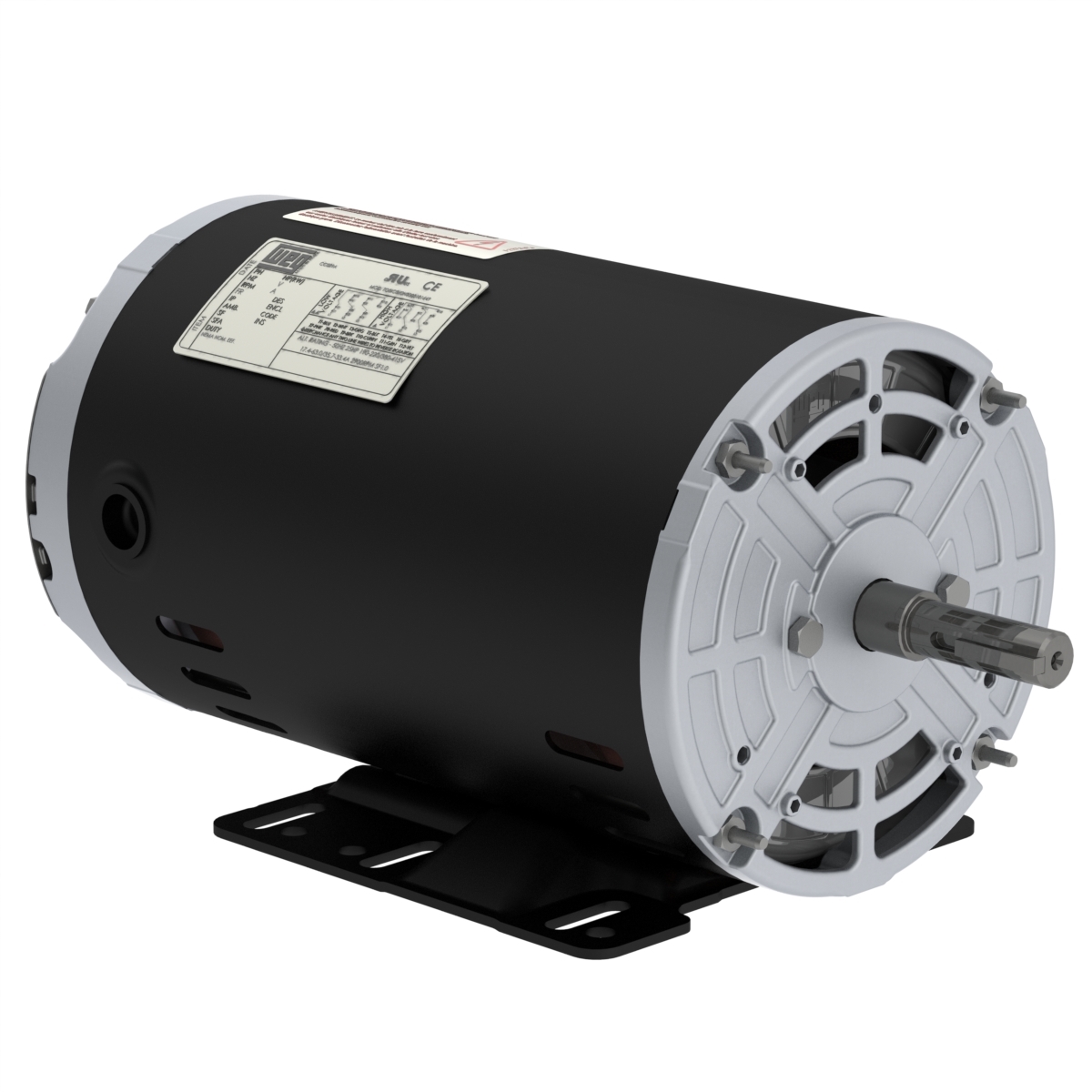

00536OS3ECD56-S WEG 5HP Compressor Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00536OS3ECD56-S

00536OS3ECD56-S WEG 5HP Compressor Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536OS3ECD56-S

Selected accessories will also be added to cart
$309.00 / Each
Quantity:
IC01-ODP, 56H Frame, 208-230/460V, 60 Hz, 3-Phase

Electric Motors

Frame 56H
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3390 rpm
Slip 5.83 %
Rated voltage 208-230/460 V
Rated current 14.2-12.8/6.40 A
L. R. Amperes 78.1-70.4/35.2 A
LRC 5.5x(Code G)
No load current 0.000-4.80/2.40 A
Rated torque 7.64 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 9s (cold) 5s (hot)
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle S3
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 34.3 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.0  81.0  79.0

Power factor

50% 75% 100%
0.79  0.88  0.92

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6204 ZZ   6202 ZZ
Sealing Without Bearing Seal  Without Bearing Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
133 lb  167 lb
