/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, FF-Face, W22/00536ET3YAL132SFF-W22 WEG 7.5HP/5.5kW IEC Tru-Metric Electric Motor, 3600RPM

Product ID: 00536ET3YAL132SFF-W2

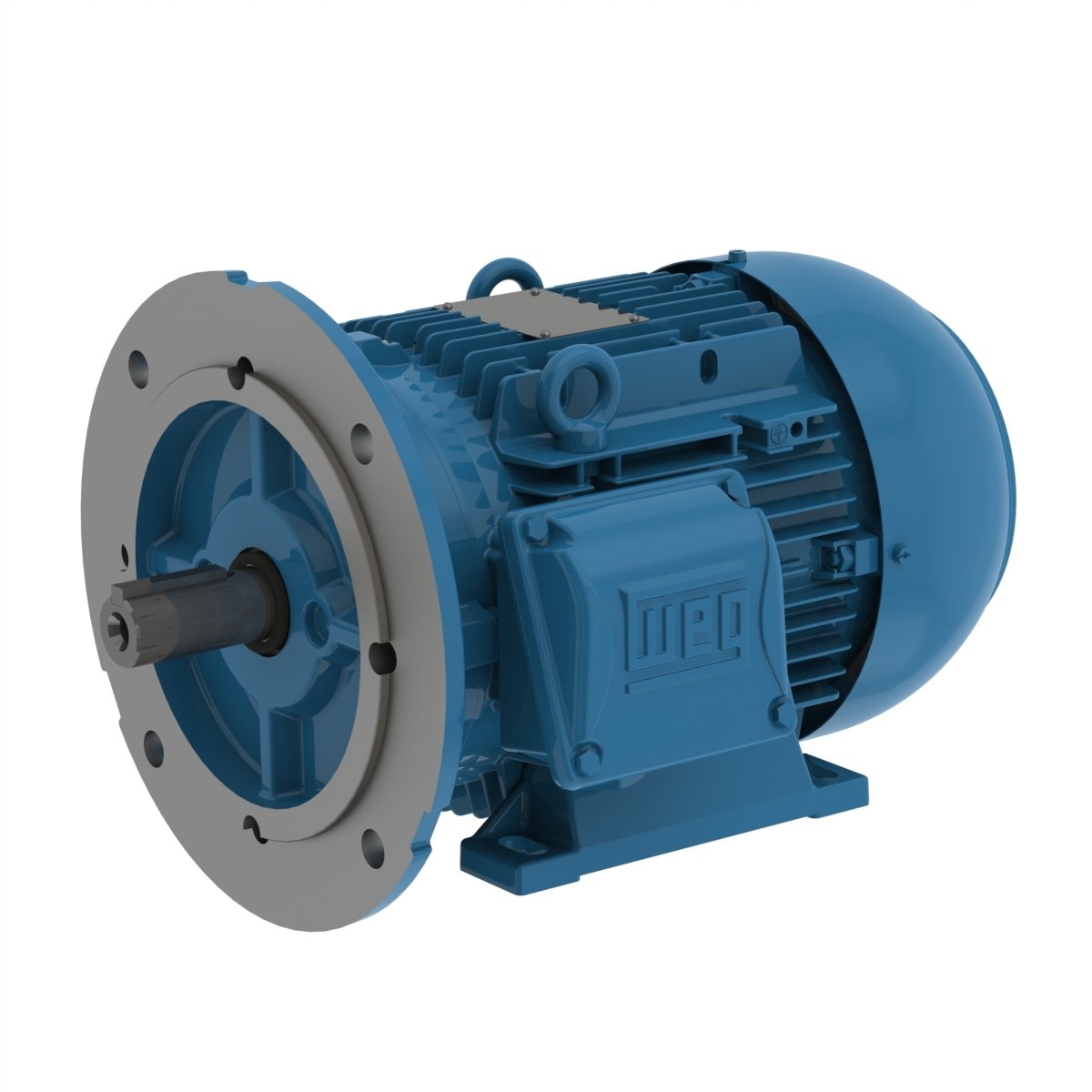

00536ET3YAL132SFF-W22 WEG 7.5HP/5.5kW IEC Tru-Metric Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536ET3YAL132SFF-W22

Selected accessories will also be added to cart

$917.25 / Each

Quantity:

IC411-TEFC, IP55, 132S Frame, 460/380-415VAC 3-Phase 50/60Hz, 13984840, Foot Mounted, FF-Flange, 38mm Keyed Shaft, Aluminum Frame, Multimounting

Details
Purchase Components

Electric Motors

Frame	132S
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2930 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	10.5 A
L. R. Amperes	83.0 A
LRC	7.9
No load current	3.75 A
Rated torque	13.3 ft.lb
Locked rotor torque	260 %
Breakdown torque	330 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.5126 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	135 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.7	89.7	89.7

Power factor

50%	75%	100%
0.76	0.85	0.89

Frame	132S
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	400 V
Rated current	10.1 A
L. R. Amperes	87.9 A
LRC	8.7
No load current	4.10 A
Rated torque	13.2 ft.lb
Locked rotor torque	290 %
Breakdown torque	370 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.5126 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	135 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.3	89.7	90.0

Power factor

50%	75%	100%
0.72	0.82	0.87

Frame	132S
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2940 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	10.0 A
L. R. Amperes	93.0 A
LRC	9.3
No load current	4.40 A
Rated torque	13.2 ft.lb
Locked rotor torque	320 %
Breakdown torque	409 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.5126 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	135 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.8	89.6	90.1

Power factor

50%	75%	100%
0.68	0.79	0.85

Frame	132S
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3545 rpm
Slip	1.53 %
Rated voltage	460 V
Rated current	8.97 A
L. R. Amperes	86.1 A
LRC	9.6
No load current	3.80 A
Rated torque	11.0 ft.lb
Locked rotor torque	320 %
Breakdown torque	430 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.5126 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	135 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	89.5	89.5

Power factor

50%	75%	100%
0.69	0.80	0.86

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM32x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
