/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Foot Mount, AEGIS Ring/00518ET3V184T-SG WEG 5HP General Purpose Electric Motor,1800RPM

Product ID: 00518ET3V184T-SG

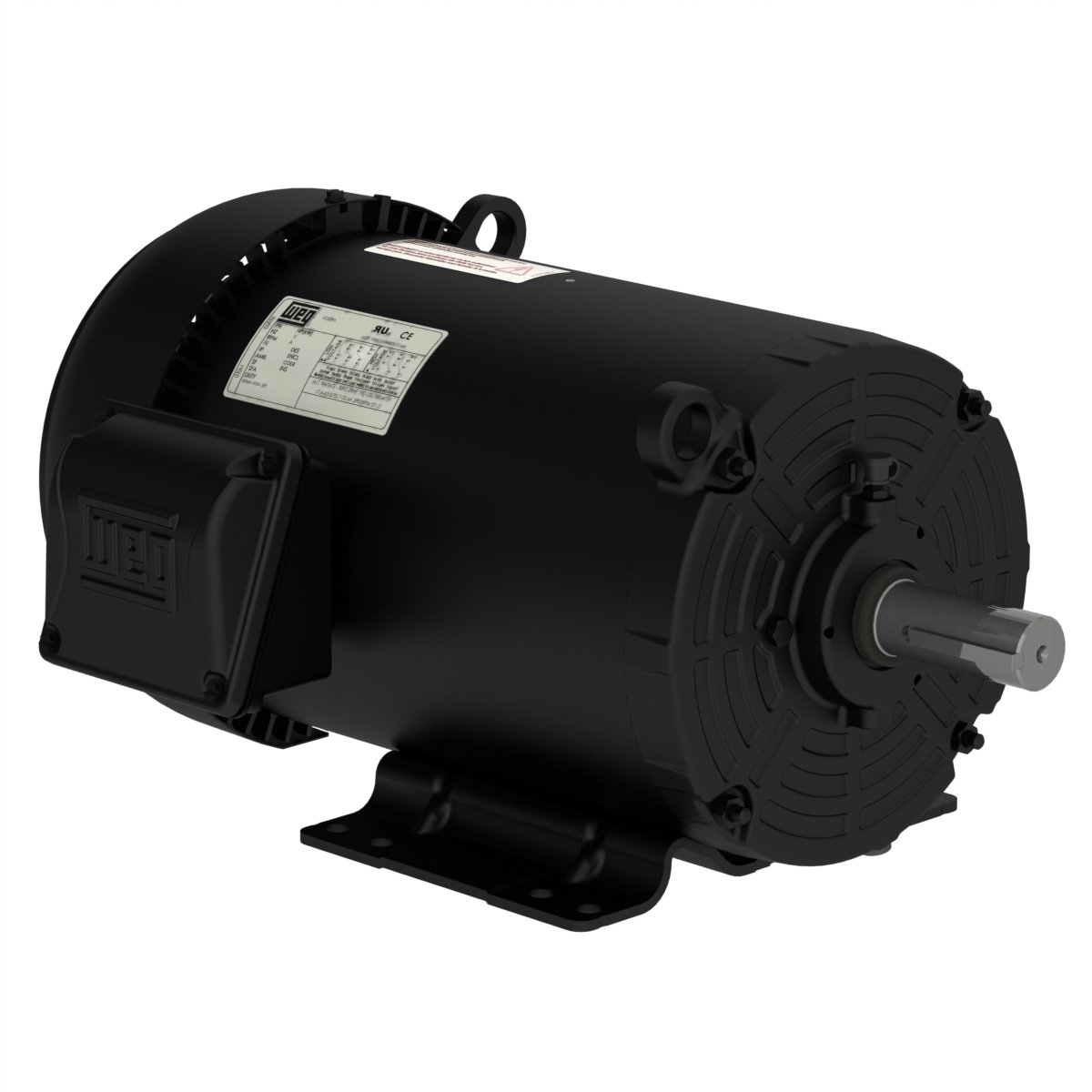

00518ET3V184T-SG WEG 5HP General Purpose Electric Motor,1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518ET3V184T-SG

Selected accessories will also be added to cart

$631.50 / Each

Quantity:

IC411 - TEFC 182T/184T Frame, 200/400VAC 60Hz, 12793335, Rolled Steel NEMA Premium Efficiency, Foot Mount, AEGIS Shaft Grounding Ring, 1-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	182/4T
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1750 rpm
Slip	2.78 %
Rated voltage	200/400 V
Rated current	14.9/7.46 A
L. R. Amperes	104/52.2 A
LRC	7.0x(Code J)
No load current	7.92/3.96 A
Rated torque	14.8 ft.lb
Locked rotor torque	220 %
Breakdown torque	300 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	0.3080 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	76.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.60	0.73	0.80

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
