/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/00518ET3EAL132S-W22 WEG 7.5HP/5.5kW IEC TRU-Metric Electric Motor, 1800RPM

Product ID: 00518ET3EAL132S-W22

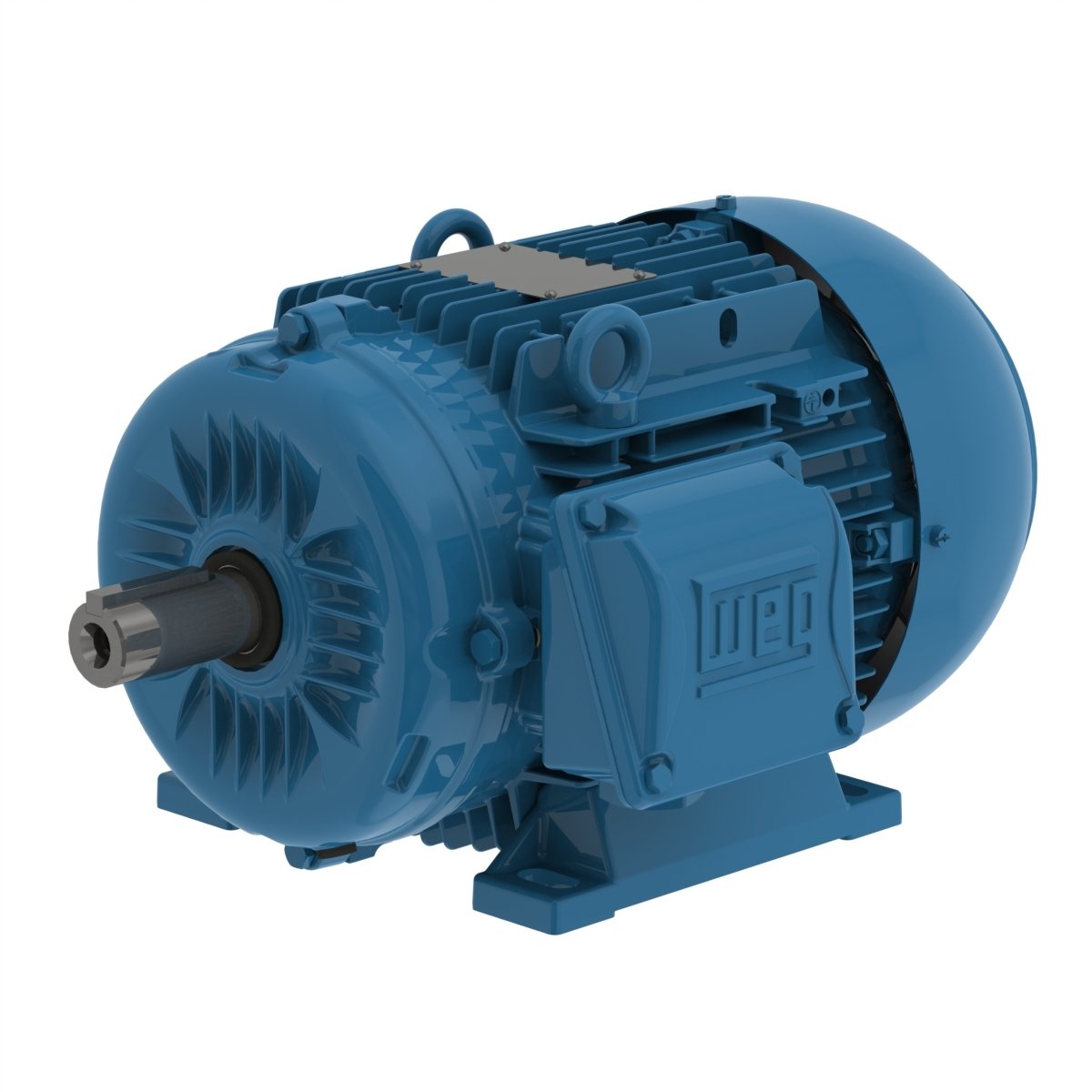

00518ET3EAL132S-W22 WEG 7.5HP/5.5kW IEC TRU-Metric Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518ET3EAL132S-W22

Selected accessories will also be added to cart

$699.00 / Each

Quantity:

IC411-TEFC, IP55, 132S Frame, 230/460/380-415VAC 3-Phase 50/60Hz, 13983258, Foot Mount, Multimounting, Aluminum Frame, 38mm Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	132S
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	380 V
Rated current	10.6 A
L. R. Amperes	102 A
LRC	9.6
No load current	4.40 A
Rated torque	26.6 ft.lb
Locked rotor torque	210 %
Breakdown torque	300 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	1.25 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	132 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.4	90.7	90.3

Power factor

50%	75%	100%
0.71	0.82	0.87

Frame	132S
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	400 V
Rated current	10.3 A
L. R. Amperes	98.9 A
LRC	9.6
No load current	4.70 A
Rated torque	26.5 ft.lb
Locked rotor torque	240 %
Breakdown torque	340 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	1.25 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	132 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.0	90.7	90.7

Power factor

50%	75%	100%
0.67	0.79	0.85

Frame	132S
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	10.2 A
L. R. Amperes	97.9 A
LRC	9.6
No load current	5.10 A
Rated torque	26.4 ft.lb
Locked rotor torque	260 %
Breakdown torque	370 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	1.25 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	132 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.6	90.7	90.8

Power factor

50%	75%	100%
0.64	0.76	0.83

Frame	132S
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	230/460 V
Rated current	18.1/9.07 A
L. R. Amperes	189/94.3 A
LRC	10.4
No load current	8.86/4.43 A
Rated torque	21.9 ft.lb
Locked rotor torque	260 %
Breakdown torque	430 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	1.25 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	58.0 dB(A)
Approx. weight³	132 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	91.0	91.7

Power factor

50%	75%	100%
0.65	0.77	0.83

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM32x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
