/Products/Electric Motors/3 Phase/WEG/Oil Well Pump/00512ES3EOW215T-W22 WEG 5HP Oil Well Pump Electric Motor, 1200RPM

Product ID: 00512ES3EOW215T-W22

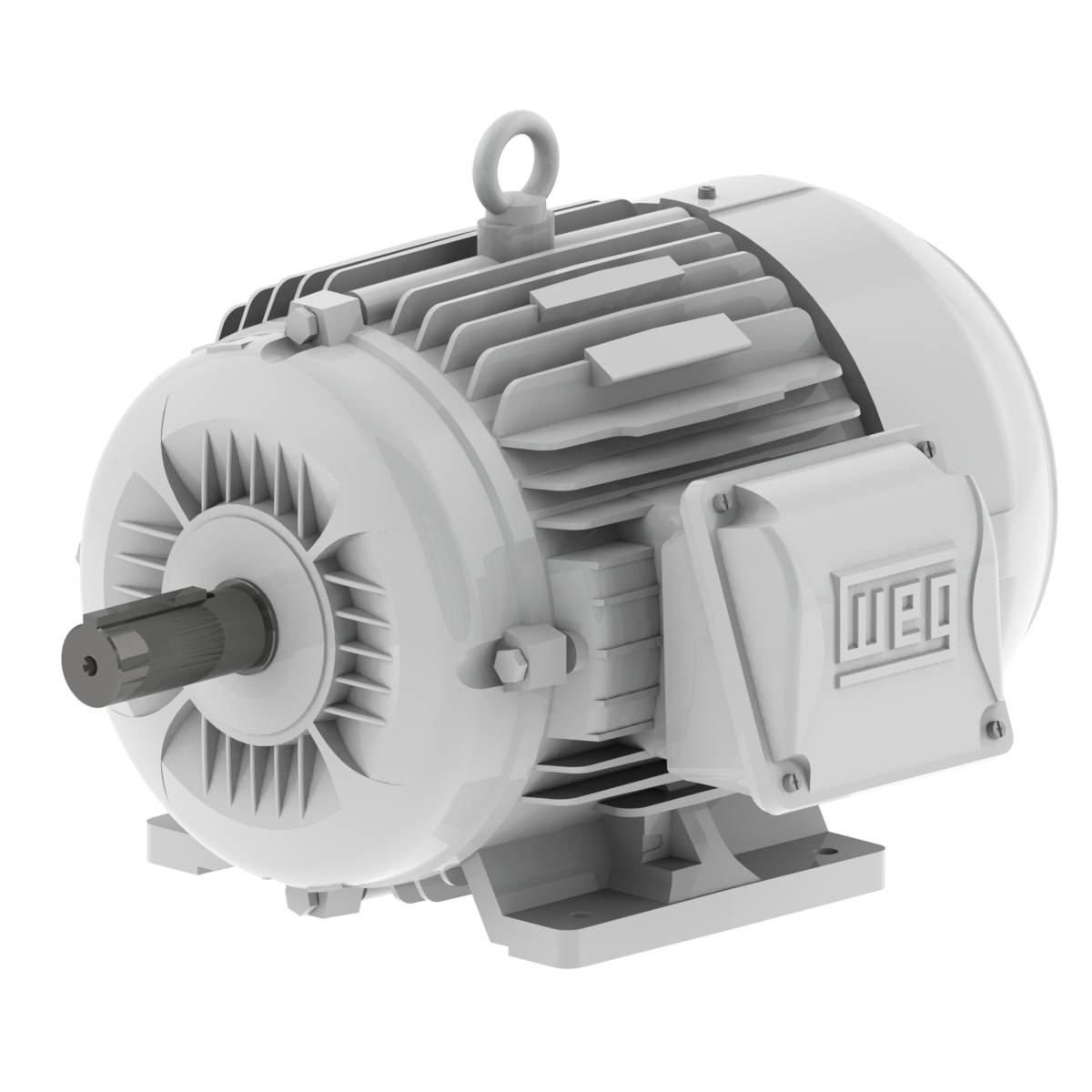

00512ES3EOW215T-W22 WEG 5HP Oil Well Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00512ES3EOW215T-W22

Selected accessories will also be added to cart

$877.50 / Each

Quantity:

IC-411-TEFC, IP55, 213T/215T Frame, 208-230/460VAC 60Hz 3 Phase, 12683838, Standard Efficiency, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5T
Output	5 HP (3.7 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1060 rpm
Slip	11.67 %
Rated voltage	208-230/460 V
Rated current	17.1-15.5/7.73 A
L. R. Amperes	106-95.9/47.9 A
LRC	6.2x(Code J)
No load current	9.24-8.36/4.18 A
Rated torque	24.8 ft.lb
Locked rotor torque	380 %
Breakdown torque	0 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	1.16 sq.ft.lb
Design	D
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	55.0 dB(A)
Approx. weight³	175 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.0	78.5	77.0

Power factor

50%	75%	100%
0.58	0.70	0.78

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 9010 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
