/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/00436ET3EAL112M-W22 WEG 5.5HP/4kW IEC TRU-Metric Electric Motor, 3600RPM

Product ID: 00436ET3EAL112M-W22

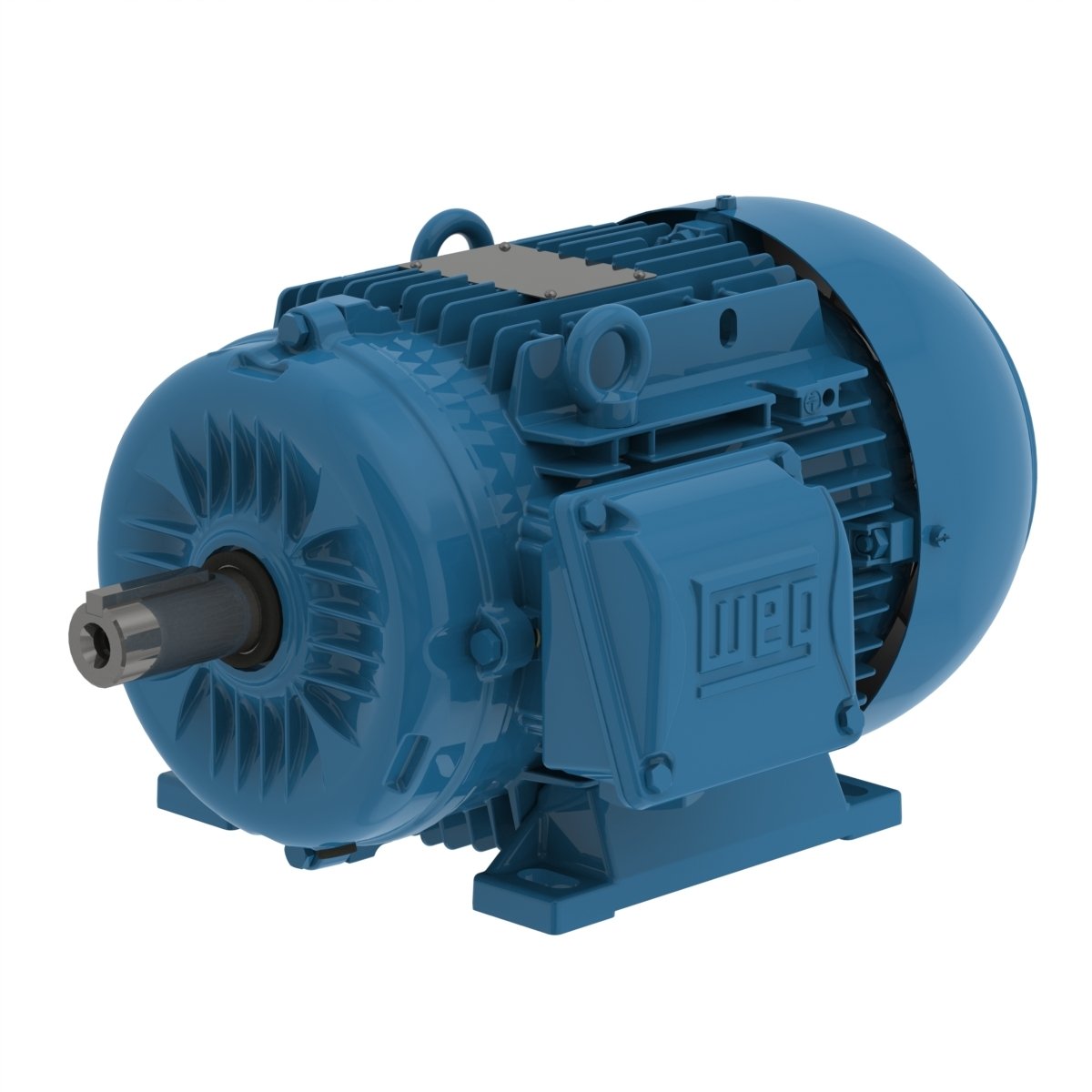

00436ET3EAL112M-W22 WEG 5.5HP/4kW IEC TRU-Metric Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00436ET3EAL112M-W22

Selected accessories will also be added to cart

$655.50 / Each

Quantity:

IC411-TEFC, IP55, 112M Frame, 230/460/380-415VAC 3-Phase 50/60Hz, 13983177, Foot Mount, Multimounting, Aluminum Frame, 28mm Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	112M
Output	5.5 HP (4 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2890 rpm
Slip	3.67 %
Rated voltage	380 V
Rated current	7.83 A
L. R. Amperes	60.3 A
LRC	7.7
No load current	2.80 A
Rated torque	9.86 ft.lb
Locked rotor torque	229 %
Breakdown torque	310 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.1898 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	80.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.0	88.2	88.2

Power factor

50%	75%	100%
0.73	0.83	0.88

Frame	112M
Output	5.5 HP (4 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2905 rpm
Slip	3.17 %
Rated voltage	400 V
Rated current	7.59 A
L. R. Amperes	63.8 A
LRC	8.4
No load current	3.10 A
Rated torque	9.81 ft.lb
Locked rotor torque	250 %
Breakdown torque	350 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.1898 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	80.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.0	88.4	88.4

Power factor

50%	75%	100%
0.69	0.80	0.86

Frame	112M
Output	5.5 HP (4 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	415 V
Rated current	7.49 A
L. R. Amperes	63.7 A
LRC	8.5
No load current	3.30 A
Rated torque	9.79 ft.lb
Locked rotor torque	280 %
Breakdown torque	380 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.1898 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	80.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.0	88.4

Power factor

50%	75%	100%
0.65	0.77	0.84

Frame	112M
Output	5.5 HP (4 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3515 rpm
Slip	2.36 %
Rated voltage	230/460 V
Rated current	13.3/6.67 A
L. R. Amperes	127/63.4 A
LRC	9.5
No load current	5.80/2.90 A
Rated torque	8.11 ft.lb
Locked rotor torque	280 %
Breakdown torque	440 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	0.1898 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	80.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	87.5	88.5

Power factor

50%	75%	100%
0.67	0.79	0.85

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM32x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
