/Products/Electric Motors/3 Phase/WEG/IEEE 841/Foot Mount, C-Face/00336ST3QIE182TC-W22 WEG 3HP Severe Duty Electric Motor, 3600RPM

Product ID: 00336ST3QIE182TC-W22

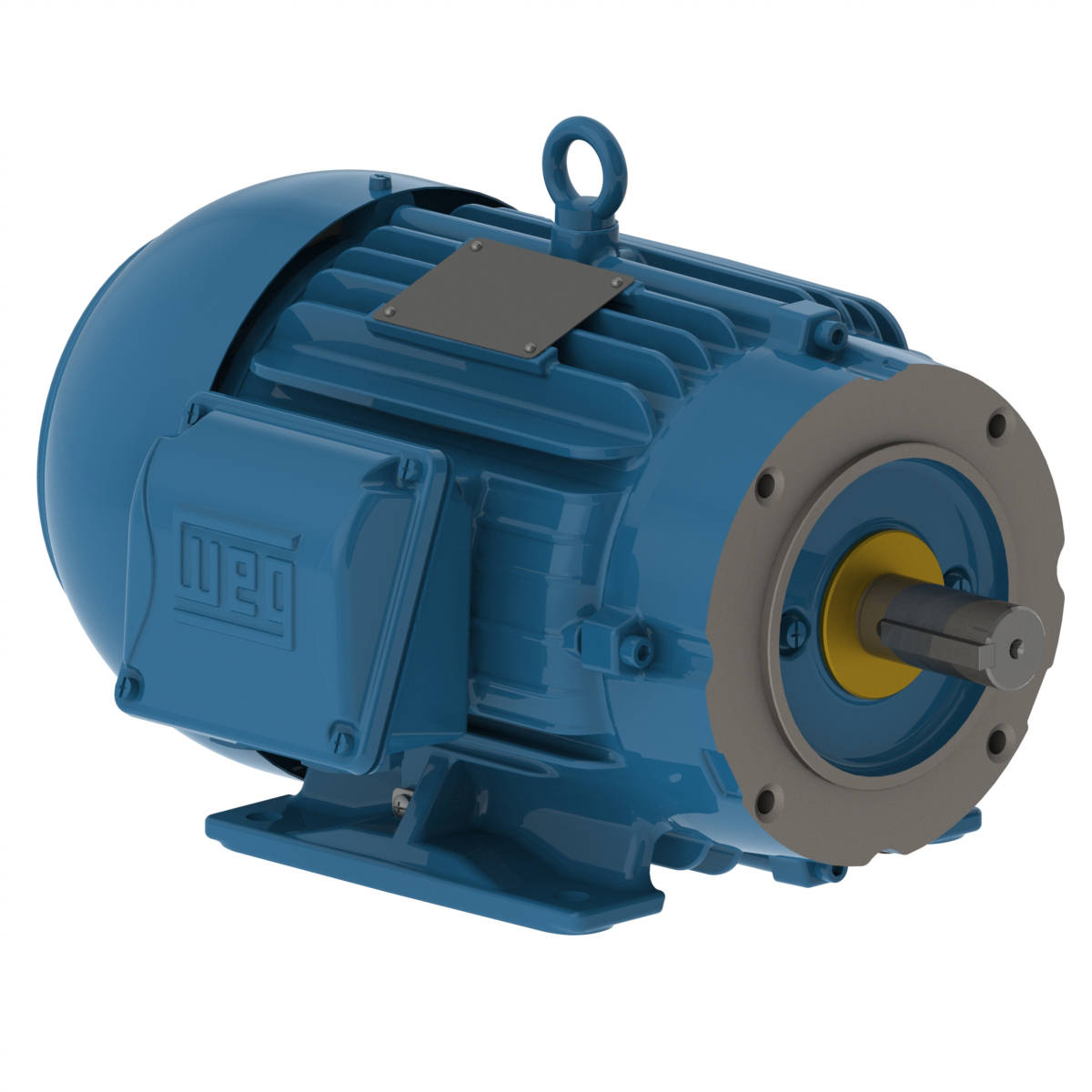

00336ST3QIE182TC-W22 WEG 3HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336ST3QIE182TC-W22

Selected accessories will also be added to cart

$999.00 / Each

Quantity:

IC411 - TEFC, IP55, 182TC/184TC Frame, 460VAC 60Hz 3 Phase, 12373843, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	182/4TC
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3510 rpm
Slip	2.50 %
Rated voltage	460 V
Rated current	3.63 A
L. R. Amperes	31.2 A
LRC	8.6x(Code K)
No load current	1.30 A
Rated torque	4.49 ft.lb
Locked rotor torque	250 %
Breakdown torque	380 %
Locked rotor time	73s (cold) 41s (hot)

Moment of inertia (J)	0.1889 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	66.0 dB(A)
Approx. weight³	96.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	86.5	86.5

Power factor

50%	75%	100%
0.75	0.84	0.88

Frame	182/4TC
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2930 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	3.09 A
L. R. Amperes	29.7 A
LRC	9.6x(Code L)
No load current	1.25 A
Rated torque	3.58 ft.lb
Locked rotor torque	300 %
Breakdown torque	430 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	0.1889 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	96.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.0	84.5	85.8

Power factor

50%	75%	100%
0.68	0.79	0.86

Frame	182/4TC
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	400 V
Rated current	3.00 A
L. R. Amperes	32.1 A
LRC	10.7x(Code M)
No load current	1.35 A
Rated torque	3.58 ft.lb
Locked rotor torque	340 %
Breakdown torque	480 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	0.1889 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	96.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.6	84.5	85.8

Power factor

50%	75%	100%
0.65	0.77	0.84

Frame	182/4TC
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2940 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	2.96 A
L. R. Amperes	32.9 A
LRC	11.1x(Code N)
No load current	1.40 A
Rated torque	3.57 ft.lb
Locked rotor torque	370 %
Breakdown torque	520 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	0.1889 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	96.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
79.7	84.1	85.9

Power factor

50%	75%	100%
0.63	0.75	0.82

Frame	182/4TC
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2880 rpm
Slip	4.00 %
Rated voltage	380 V
Rated current	4.34 A
L. R. Amperes	29.5 A
LRC	6.8x(Code H)
No load current	1.25 A
Rated torque	5.47 ft.lb
Locked rotor torque	210 %
Breakdown torque	290 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	0.1889 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	96.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	86.5	85.5

Power factor

50%	75%	100%
0.80	0.87	0.90

Frame	182/4TC
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2890 rpm
Slip	3.67 %
Rated voltage	400 V
Rated current	4.17 A
L. R. Amperes	31.7 A
LRC	7.6x(Code J)
No load current	1.35 A
Rated torque	5.45 ft.lb
Locked rotor torque	240 %
Breakdown torque	320 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	0.1889 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	96.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	86.5	85.5

Power factor

50%	75%	100%
0.77	0.86	0.89

Frame	182/4TC
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2900 rpm
Slip	3.33 %
Rated voltage	415 V
Rated current	4.07 A
L. R. Amperes	33.0 A
LRC	8.1x(Code J)
No load current	1.40 A
Rated torque	5.43 ft.lb
Locked rotor torque	260 %
Breakdown torque	350 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	0.1889 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	96.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	86.5	85.5

Power factor

50%	75%	100%
0.75	0.84	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 1"
Terminal Block	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
