/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Jet Pump/00336OS1DJPR56C-S WEG 3HP Jet Pump Electric Motor, 3600RPM

Product ID: 00336OS1DJPR56C-S

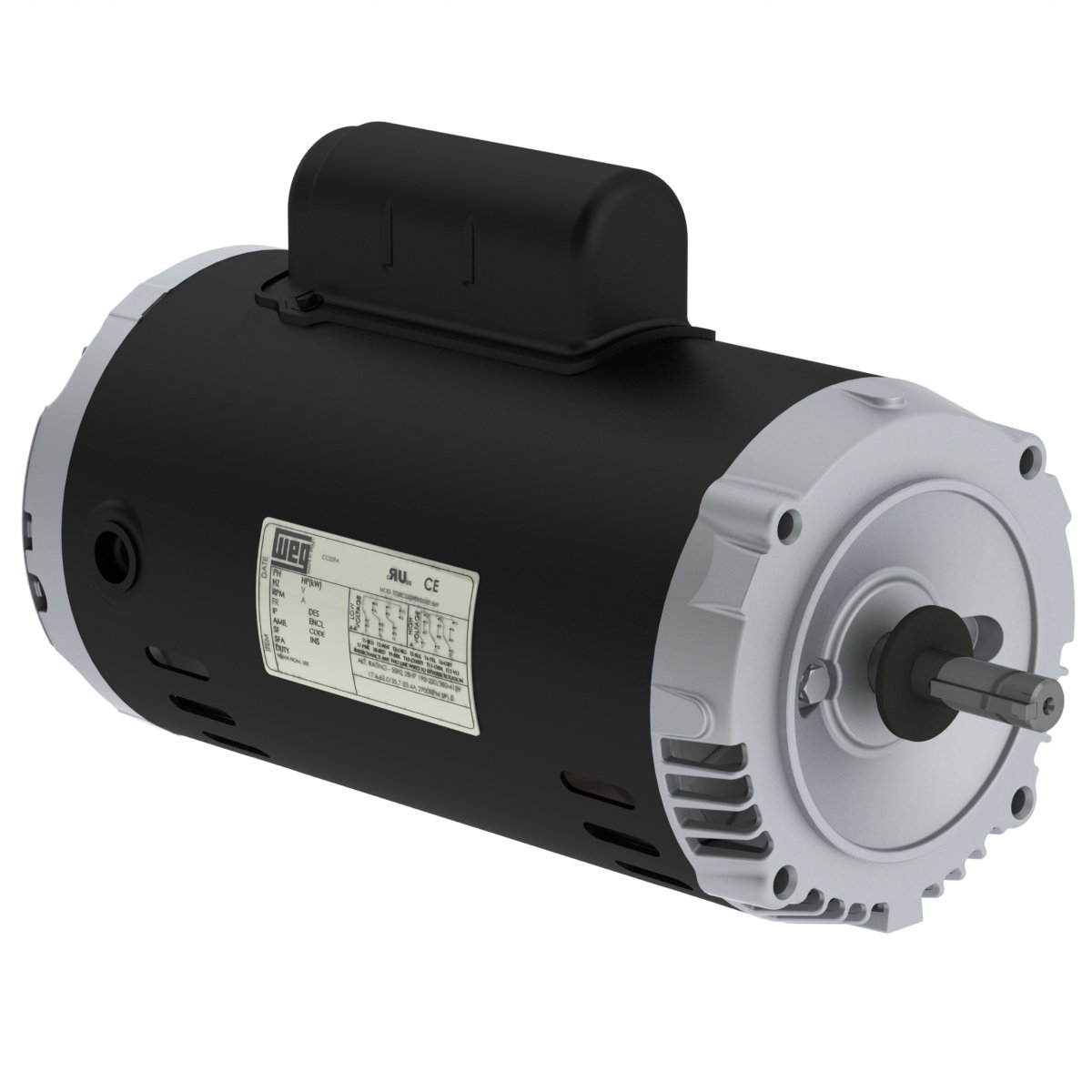

00336OS1DJPR56C-S WEG 3HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336OS1DJPR56C-S

Selected accessories will also be added to cart

$361.50 / Each

Quantity:

IC01 - ODP, 56C Frame, 230VAC Single Phase 60Hz, 13622683, C-Face, Footless, Rolled Steel, 304 Stainless Steel Shaft

Details
Purchase Components

Electric Motors

Frame	56C
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3485 rpm
Slip	3.19 %
Rated voltage	230 V
Rated current	13.2 A
L. R. Amperes	106 A
LRC	8.0x(Code K)
No load current	4.50 A
Rated torque	4.46 ft.lb
Locked rotor torque	200 %
Breakdown torque	250 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.0864 sq.ft.lb
Design	L
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	CCW
Noise level²	58.0 dB(A)
Approx. weight³	42.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
71.0	76.0	78.0

Power factor

50%	75%	100%
0.85	0.91	0.93

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	AISI 304 Stainless Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
