/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Foot Mount/00336ET3H182T-S WEG 3HP General Purpose Electric Motor, 3600RPM

Product ID: 00336ET3H182T-S

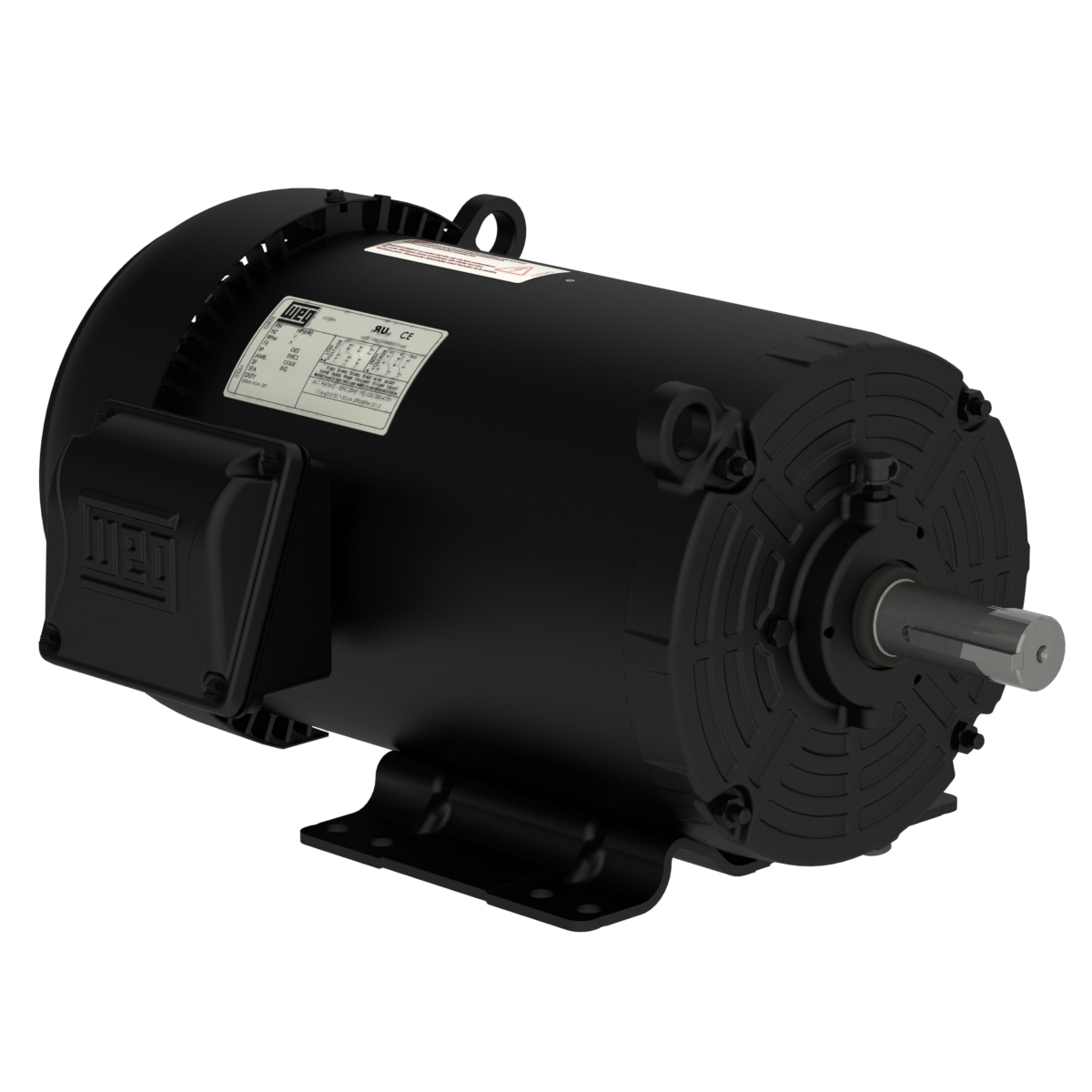

00336ET3H182T-S WEG 3HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336ET3H182T-S

Selected accessories will also be added to cart

$498.75 / Each

Quantity:

IC411-TEFC, 182T/184T Frame, 575VAC 3-Phase 60Hz, 12675393, Foot Mounted, Rolled Steel, NEMA Premium Efficiency, 1-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	182/4T
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3515 rpm
Slip	2.36 %
Rated voltage	575 V
Rated current	2.94 A
L. R. Amperes	25.8 A
LRC	8.8x(Code K)
No load current	1.29 A
Rated torque	4.42 ft.lb
Locked rotor torque	220 %
Breakdown torque	300 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.1564 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	66.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	86.5	86.5

Power factor

50%	75%	100%
0.71	0.82	0.87

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
