/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/C-Face, Foot Mount/00336ET3E56C-S WEG 3HP General Purpose Electric Motor, 3600RPM

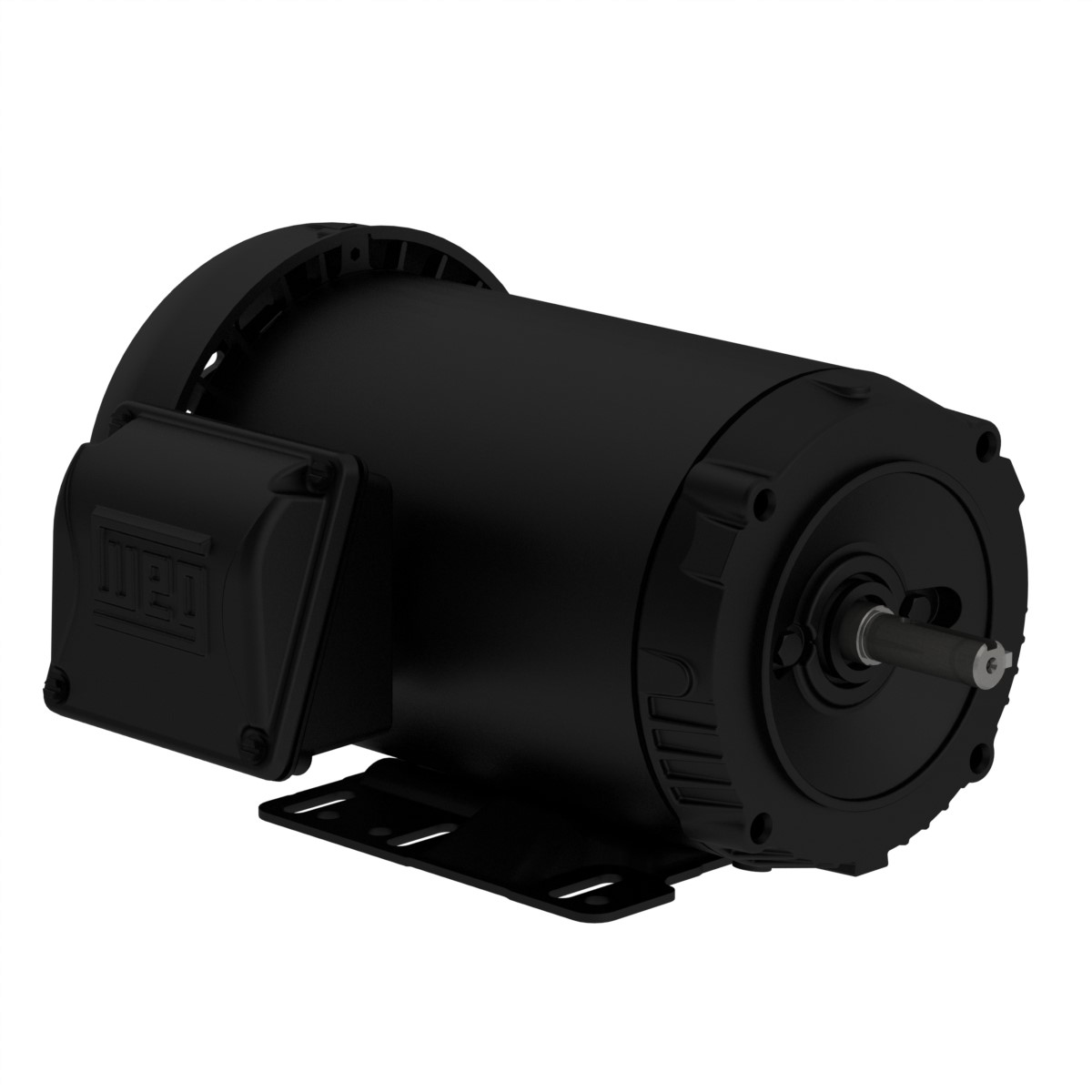

00336ET3E56C-S WEG 3HP General Purpose Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00336ET3E56C-S

00336ET3E56C-S WEG 3HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336ET3E56C-S

Selected accessories will also be added to cart
$454.50 / Each
Quantity:
IC411 - TEFC, 56HC Frame, 208-230/460VAC 3-Phase 50/60Hz, 13484366, C-Face, Foot Mount, Rolled Steel, NEMA Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56HC
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 208-230/460 V
Rated current 7.76-7.02/3.51 A
L. R. Amperes 73.7-66.7/33.3 A
LRC 9.5x(Code K)
No load current 2.21-2.56/1.28 A
Rated torque 4.44 ft.lb
Locked rotor torque 300 %
Breakdown torque 380 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.1663 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 49.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  86.5  86.5

Power factor

50% 75% 100%
0.78  0.87  0.91
Frame 56HC
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2870 rpm
Slip 4.33 %
Rated voltage 190/380 V
Rated current 8.50/4.25 A
L. R. Amperes 62.9/31.5 A
LRC 7.4x(Code H)
No load current 2.52/1.26 A
Rated torque 5.42 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.1663 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 49.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.6  86.4  84.6

Power factor

50% 75% 100%
0.83  0.90  0.93
Frame 56HC
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2895 rpm
Slip 3.50 %
Rated voltage 220/415 V
Rated current 7.38/3.91 A
L. R. Amperes 65.6/34.8 A
LRC 8.9x(Code K)
No load current 2.72/1.44 A
Rated torque 5.37 ft.lb
Locked rotor torque 290 %
Breakdown torque 340 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.1663 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 49.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.2  87.0  86.0

Power factor

50% 75% 100%
0.78  0.87  0.91

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
