/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/JM, TEFC/00336ET3E145JM-S WEG 3HP JM Close Coupled Pump Electric Motor, 3600RPM

Product ID: 00336ET3E145JM-S

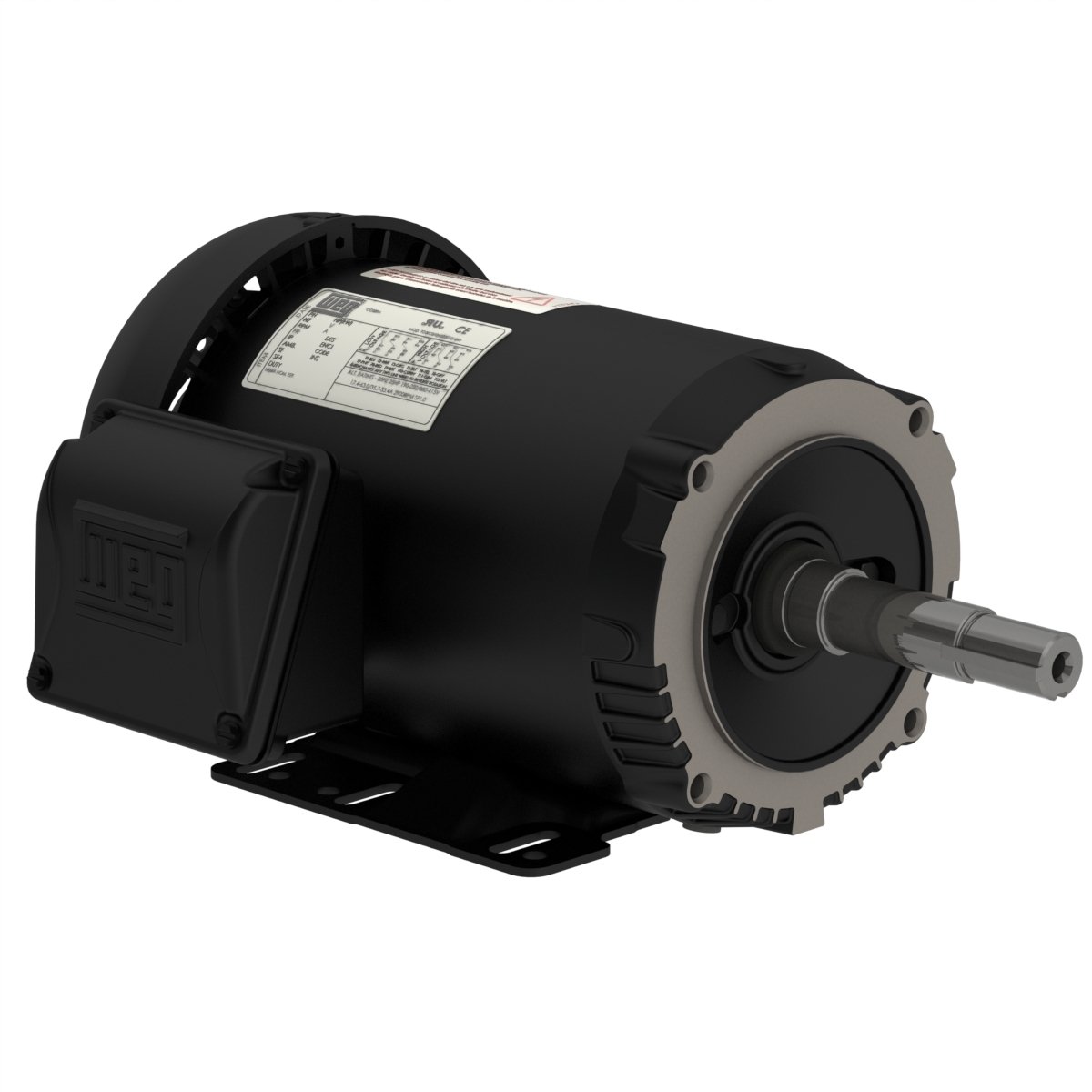

00336ET3E145JM-S WEG 3HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336ET3E145JM-S

Selected accessories will also be added to cart

$672.75 / Each

Quantity:

IC411 - TEFC, 143JM/145JM Frame, 208-230/460VAC 3-Phase 50/60Hz, 13401322, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	143/5JM
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3500 rpm
Slip	2.78 %
Rated voltage	208-230/460 V
Rated current	7.76-7.02/3.51 A
L. R. Amperes	73.7-66.7/33.3 A
LRC	9.5x(Code K)
No load current	2.21-2.56/1.28 A
Rated torque	4.44 ft.lb
Locked rotor torque	300 %
Breakdown torque	380 %
Locked rotor time	18s (cold) 10s (hot)
Moment of inertia (J)	0.1663 sq.ft.lb

Design	B
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	51.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	86.5	86.5

Power factor

50%	75%	100%
0.78	0.87	0.91

Frame	143/5JM
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2870 rpm
Slip	4.33 %
Rated voltage	190/380 V
Rated current	8.50/4.25 A
L. R. Amperes	62.9/31.5 A
LRC	7.4x(Code H)
No load current	2.52/1.26 A
Rated torque	5.42 ft.lb
Locked rotor torque	229 %
Breakdown torque	280 %
Locked rotor time	16s (cold) 9s (hot)
Moment of inertia (J)	0.1663 sq.ft.lb

Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	65.0 dB(A)
Approx. weight³	51.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.6	86.4	84.6

Power factor

50%	75%	100%
0.83	0.90	0.93

Frame	143/5JM
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2895 rpm
Slip	3.50 %
Rated voltage	220/415 V
Rated current	7.38/3.91 A
L. R. Amperes	65.6/34.8 A
LRC	8.9x(Code K)
No load current	2.72/1.44 A
Rated torque	5.37 ft.lb
Locked rotor torque	290 %
Breakdown torque	340 %
Locked rotor time	14s (cold) 8s (hot)
Moment of inertia (J)	0.1663 sq.ft.lb

Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	65.0 dB(A)
Approx. weight³	51.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.2	87.0	86.0

Power factor

50%	75%	100%
0.78	0.87	0.91

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
