/Products/Electric Motors/Single Phase/WEG/General Purpose, TEFC, W22/00336ES1B182T-W22 WEG 3HP Electric Motor, 3600RPM
Click Image to Expand

Product ID: 00336ES1B182T-W22

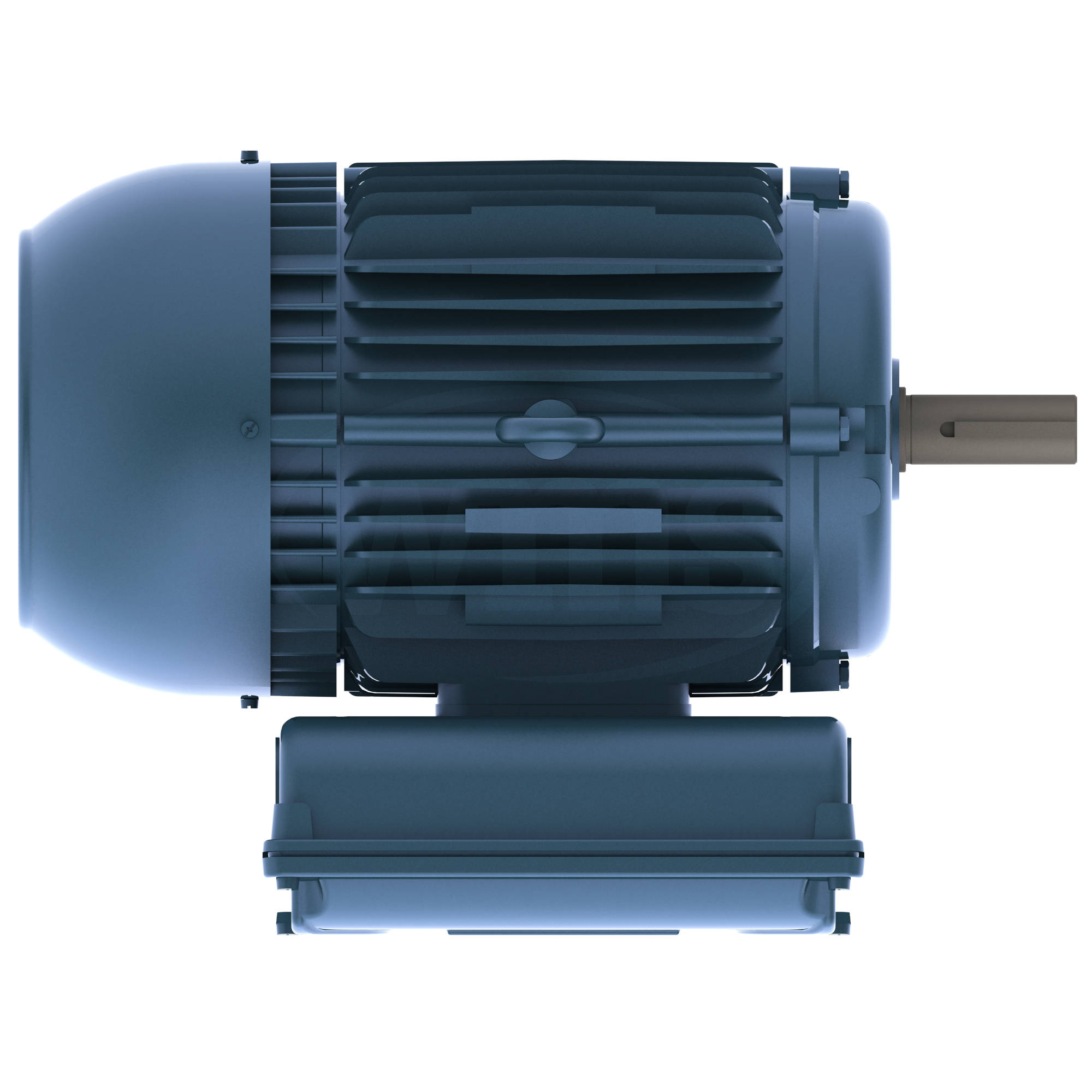

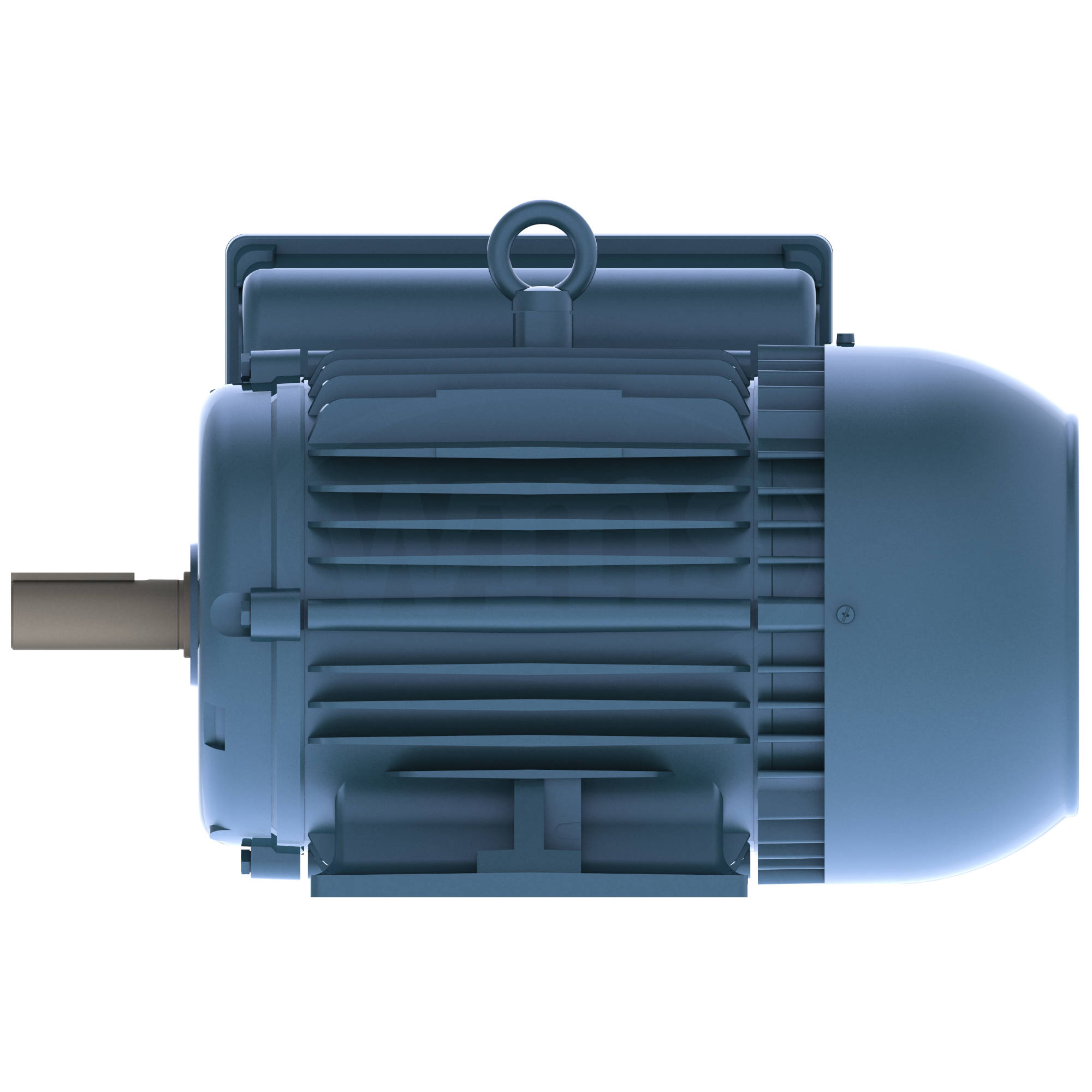

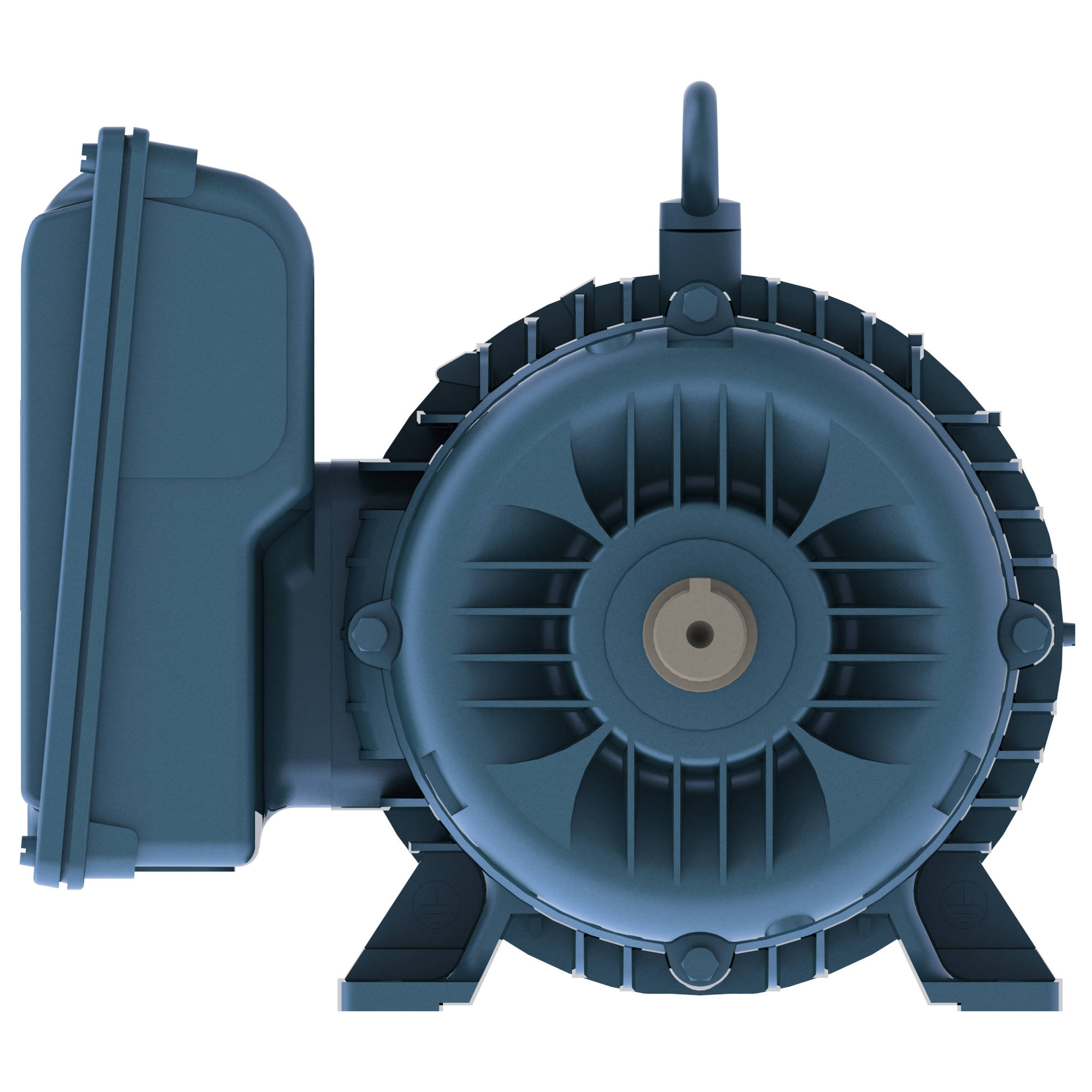

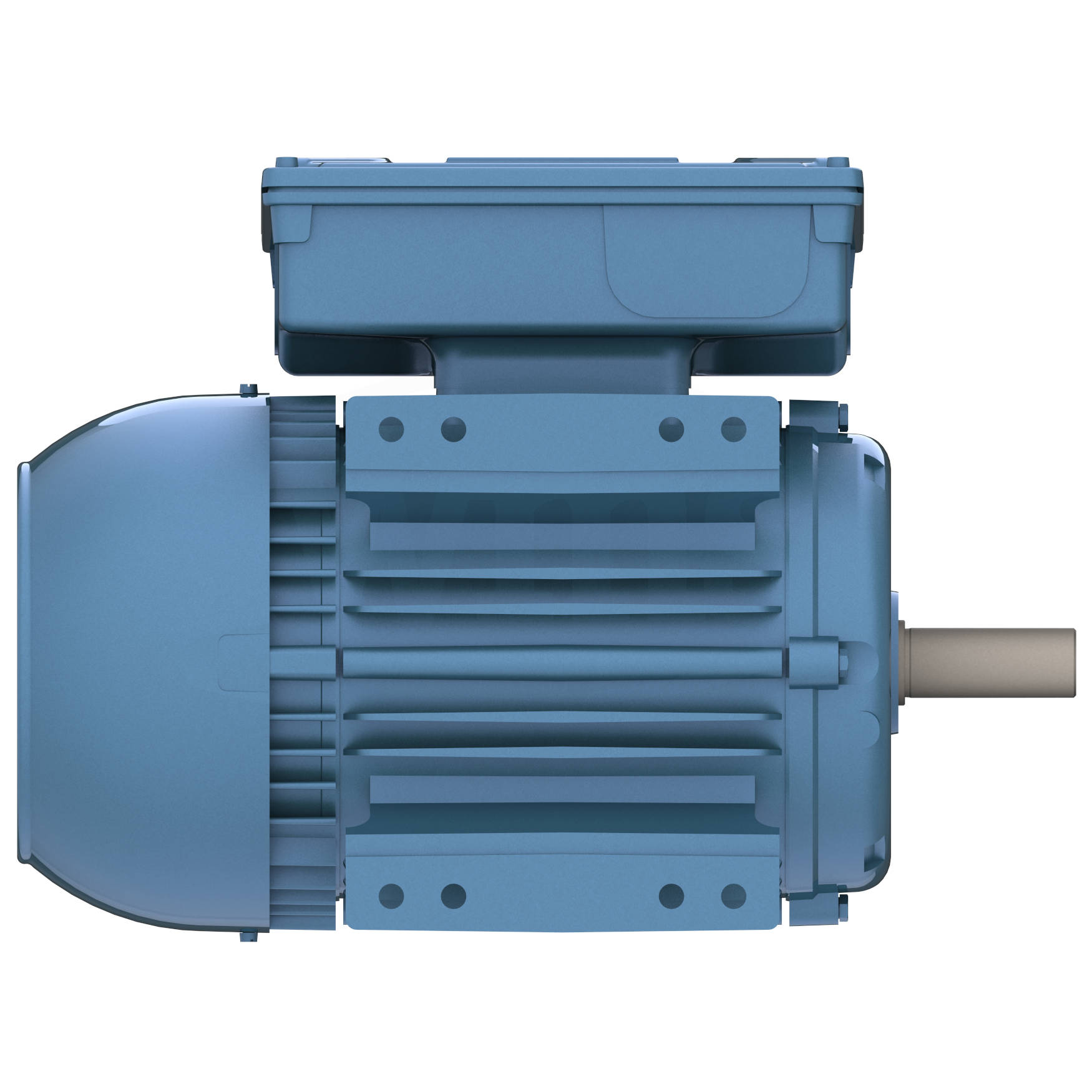

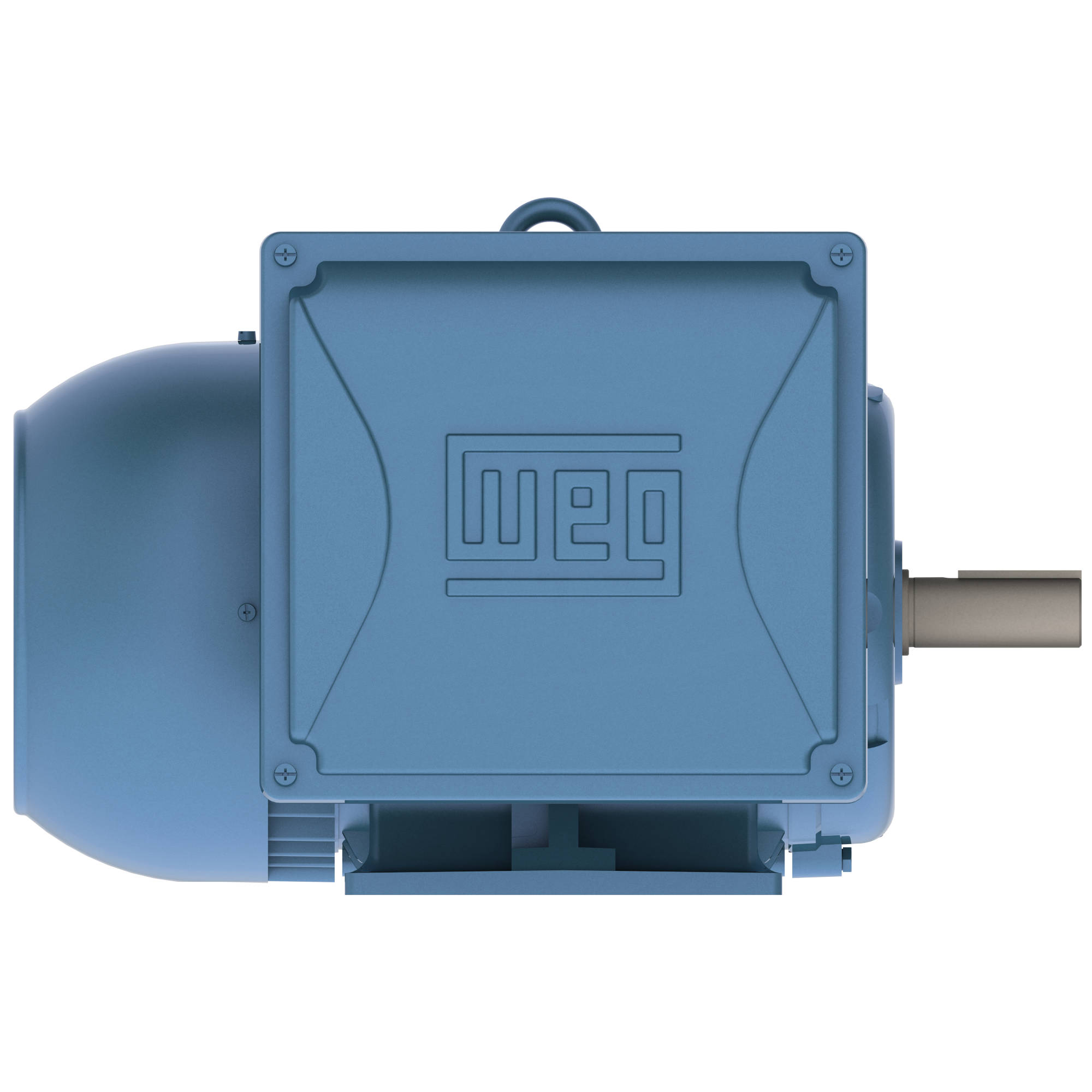

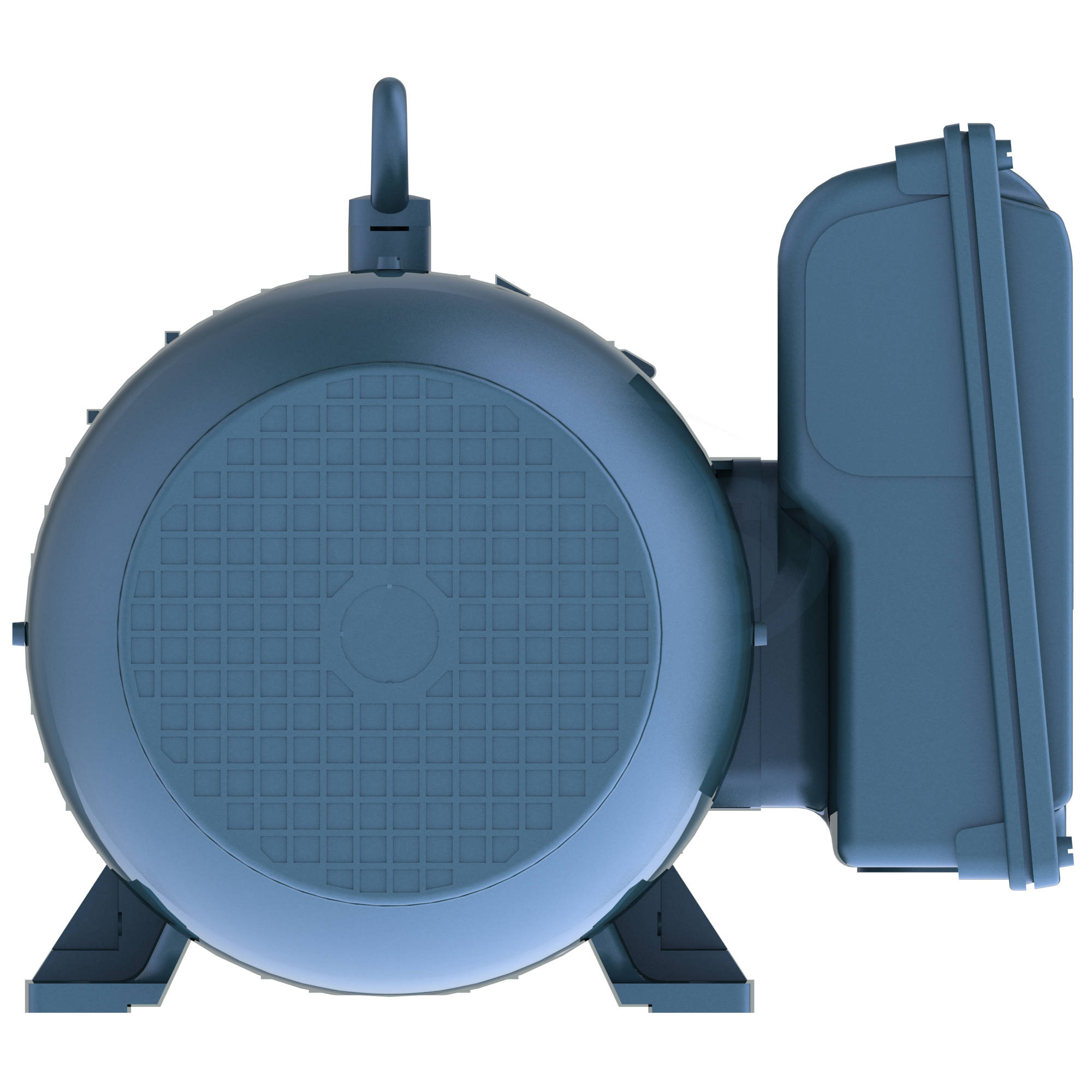

00336ES1B182T-W22 WEG 3HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336ES1B182T-W22

Selected accessories will also be added to cart
$661.50 / Each
Quantity:
IC411 - TEFC, IP55, 182T/184T Frame, 115/208-230VAC 60Hz Single Phase, 14089875, Foot Mount, Cast Iron Frame, 1-1/8" Keyed Shaft

Electric Motors

Frame 182/4T
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 115/208-230 V
Rated current 24.4/13.5-12.2 A
L. R. Amperes 188/104-93.9 A
LRC 7.7x(Code J)
No load current 8.00/3.45-4.00 A
Rated torque 4.48 ft.lb
Locked rotor torque 250 %
Breakdown torque 260 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.1571 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 93.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
80.0  83.0  84.0

Power factor

50% 75% 100%
0.92  0.93  0.93

About this Product

V-Ring Seal



V-Ring Seal to keep liquids and dust out of the motor.





Capacitor



Available with a run capacitor, run and start capacitor or start capacitor.



        Cast Iron Frame



          • FC-200 (EN GJL 200) cast iron frames meet impact
            level IK08 (5J) ensuring superior mechanical strength
            for the most demanding applications.
          • Solid motor feet provide excellent rigidity, allowing
            easier alignment and installation.



        Cooling System



          • The cooling system (fan, non drive endshield and fan cover)
            is designed to minimize noise level and improve thermal efficiency.
          • Steel plate fan cover provides high mechanical strength,
            corrosion resistance and extended lifetime.



        Centrifugal Switch



          • The starting system of W22 single phase motors
            was completely redesigned to improve functionality,
            thus increasing system reliability and lifespan.
