/Products/Electric Motors/3 Phase/WEG/Farm Duty/Aeration Fan/00336AP3EAF145TZ-S WEG 3HP Aeration Fan Electric Motor, 3600RPM

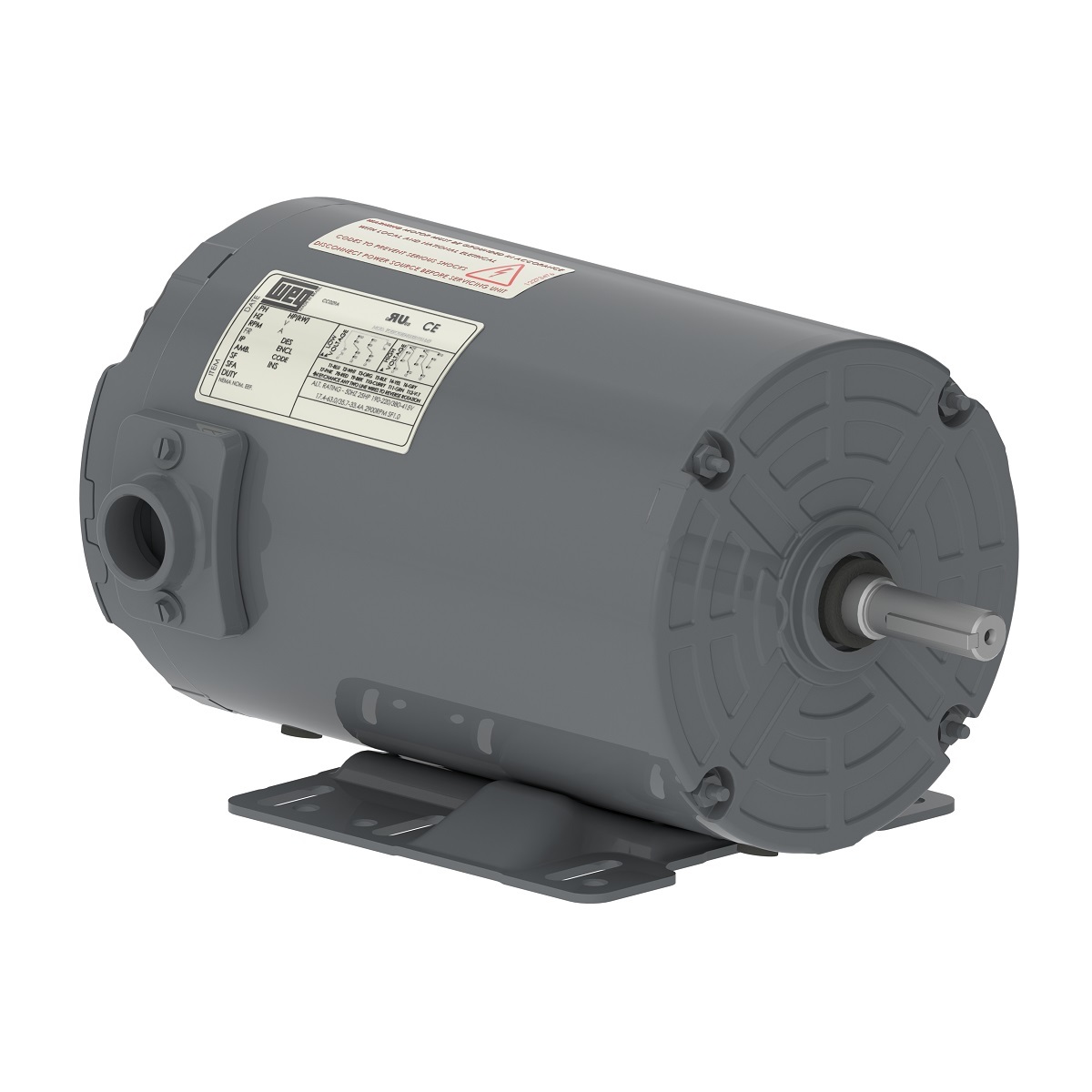

00336AP3EAF145TZ-S WEG 3HP Aeration Fan Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00336AP3EAF145TZ-S

00336AP3EAF145TZ-S WEG 3HP Aeration Fan Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336AP3EAF145TZ-S

Selected accessories will also be added to cart
$494.25 / Each
Quantity:
RS Farm Duty, 143TZ/145TZ Frame, 230/460VAC 60Hz 3-Phase, IC410-TEAO, 13248530, Foot Mounted, Rolled Steel, 7/8" Shaft

Electric Motors

Frame 143/5TZ
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3480 rpm
Slip 3.33 %
Rated voltage 208-230/460 V
Rated current 7.85-7.10/3.55 A
L. R. Amperes 65.9-59.6/29.8 A
LRC 8.4x(Code J)
No load current 0.000-2.60/1.30 A
Rated torque 4.47 ft.lb
Locked rotor torque 270 %
Breakdown torque 330 %
Locked rotor time 16s (cold) 9s (hot)
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 42.4 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  85.5  85.5

Power factor

50% 75% 100%
0.78  0.87  0.91

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6205 ZZ   6202 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
107 lb  149 lb
