/Products/Electric Motors/Single Phase/WEG/Farm Duty - Grain Dryer/00336AP1DGD145TZ-S WEG 1.5-3HP Grain Dryer Electric Motor, 3600RPM

Product ID: 00336AP1DGD145TZ-S

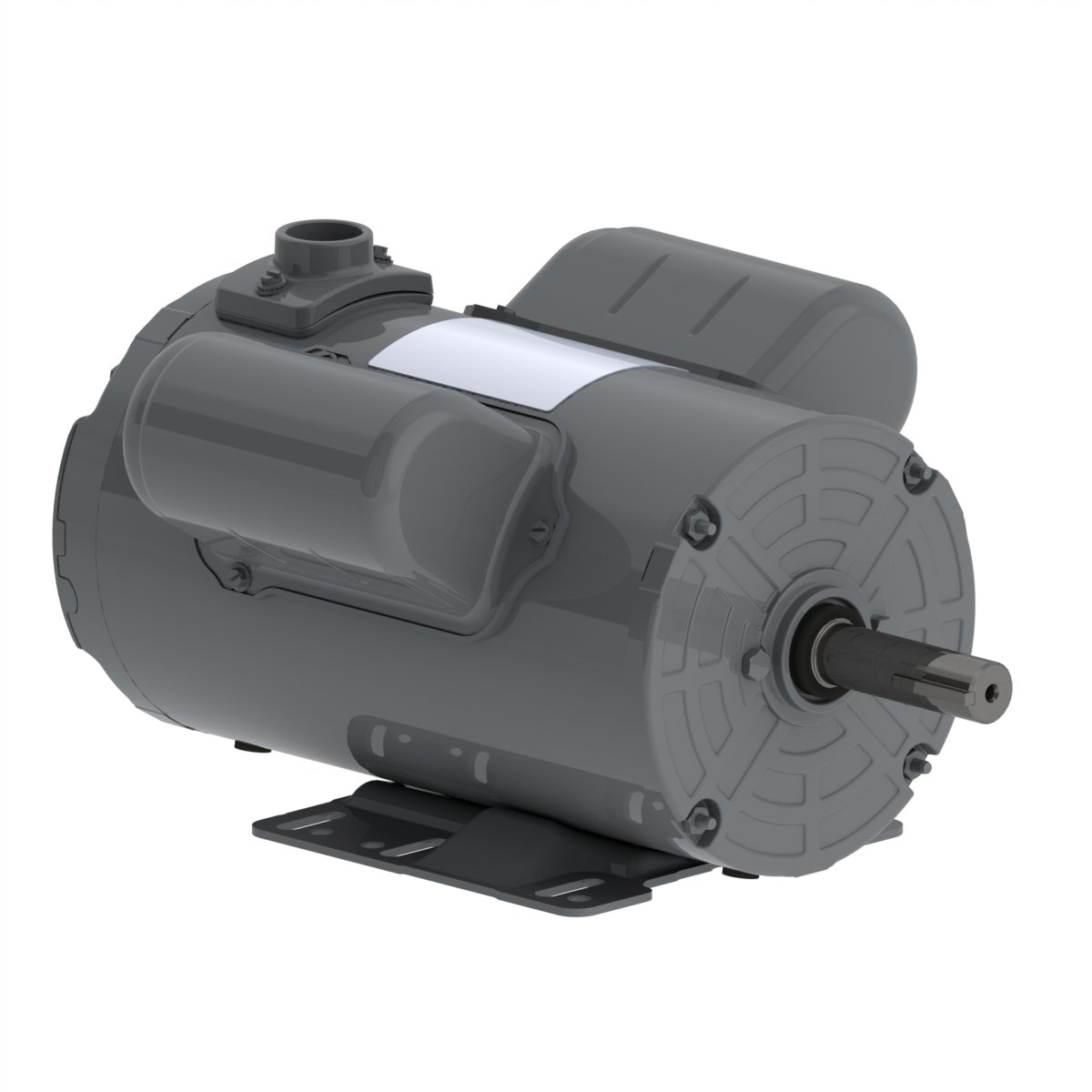

00336AP1DGD145TZ-S WEG 1.5-3HP Grain Dryer Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336AP1DGD145TZ-S

Selected accessories will also be added to cart

$682.50 / Each

Quantity:

IC410-TEAO, IP55, 143TZ/145TZ Frame, 230VAC Single Phase 60Hz, 13972797, Foot Mount, Rolled Steel, 7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	143/5TZ
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3550 rpm
Slip	1.39 %
Rated voltage	230 V
Rated current	7.51 A
L. R. Amperes	91.6 A
LRC	12.2x(Code R)
No load current	4.90 A
Rated torque	0.303 kgfm
Locked rotor torque	509 %
Breakdown torque	250 %

Locked rotor time	16s (cold) 9s (hot)
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-3
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	18.6 kg

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
57.6	67.1	73.2

Power factor

50%	75%	100%
0.72	0.80	0.87

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 7031 207N (ISO 12944 - C2)
Grounding Lugs	In the endshield
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermostat - 2 wires 1 per phase 155°C
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
