/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/Foot Mount/00318OT3E56Z-S WEG 3HP General Purpose Electric Motor, 1800RPM
Click Image to Expand

Product ID: 00318OT3E56Z-S

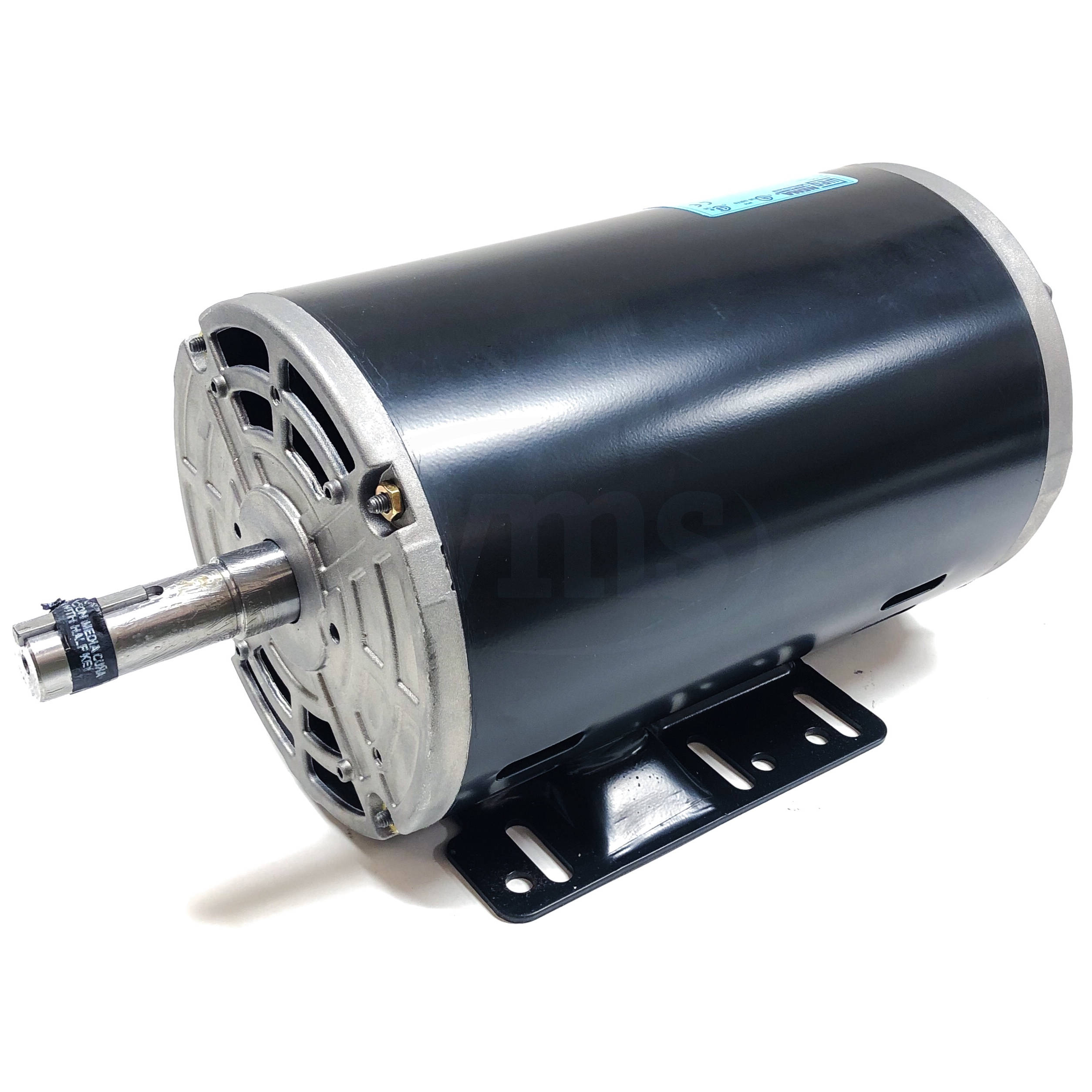

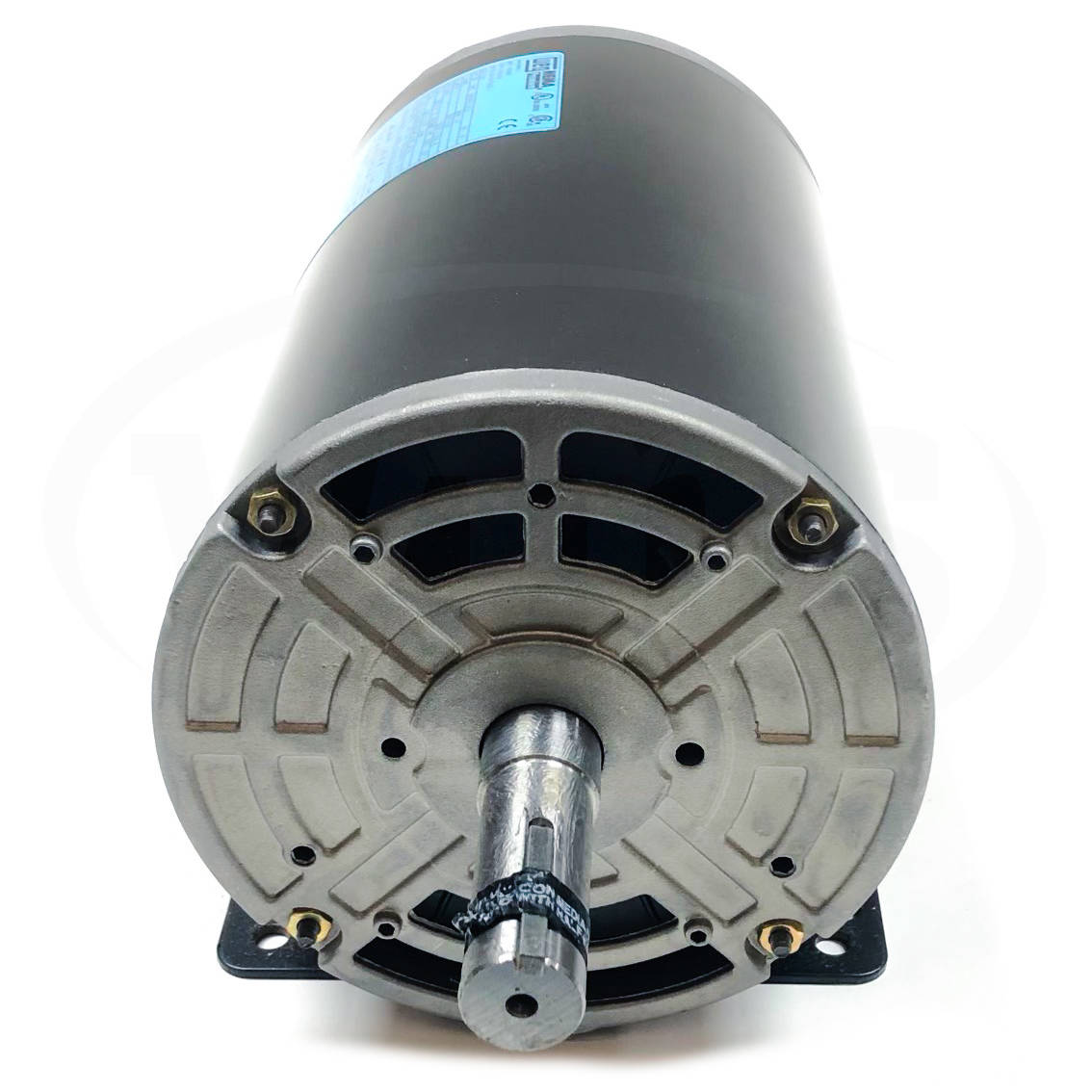

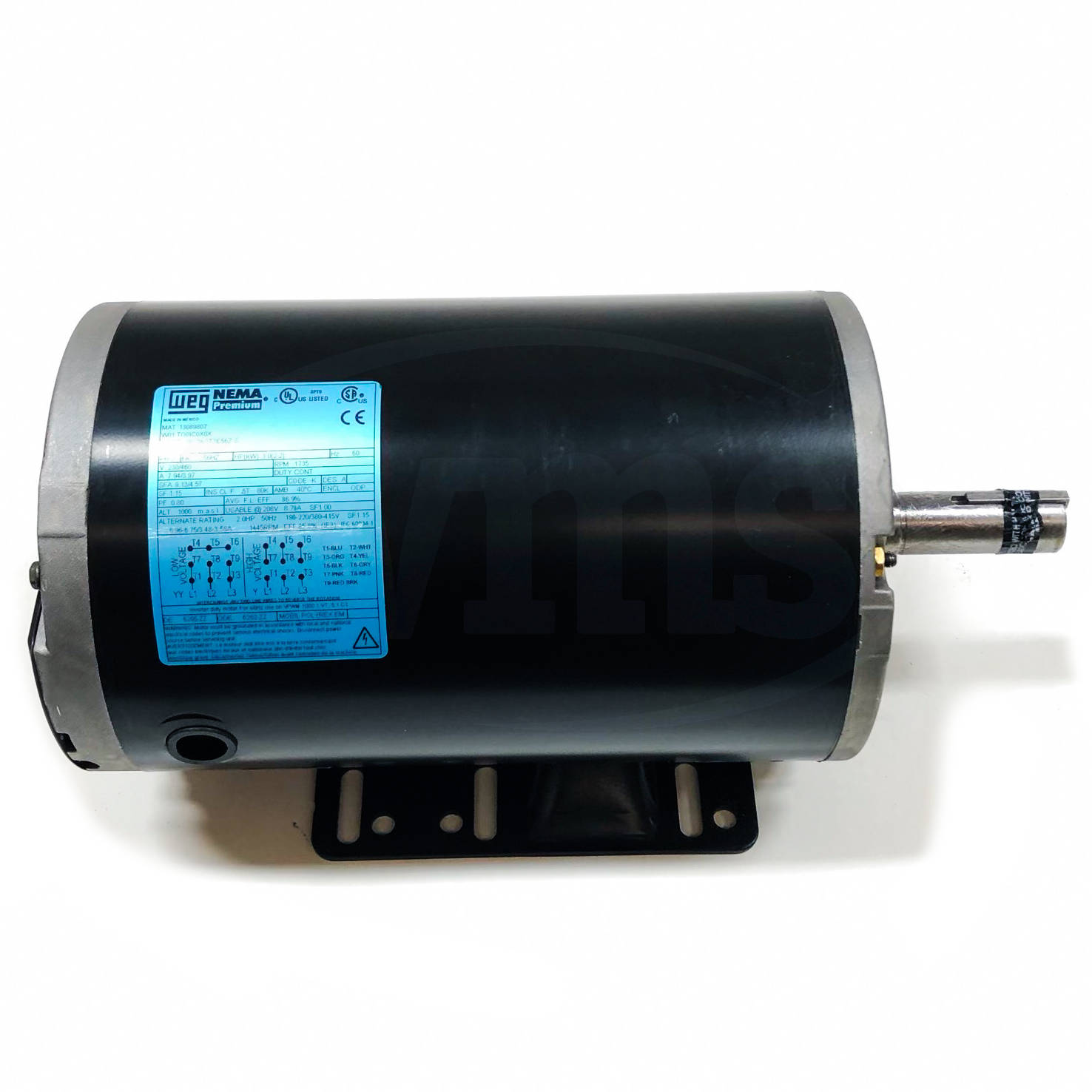

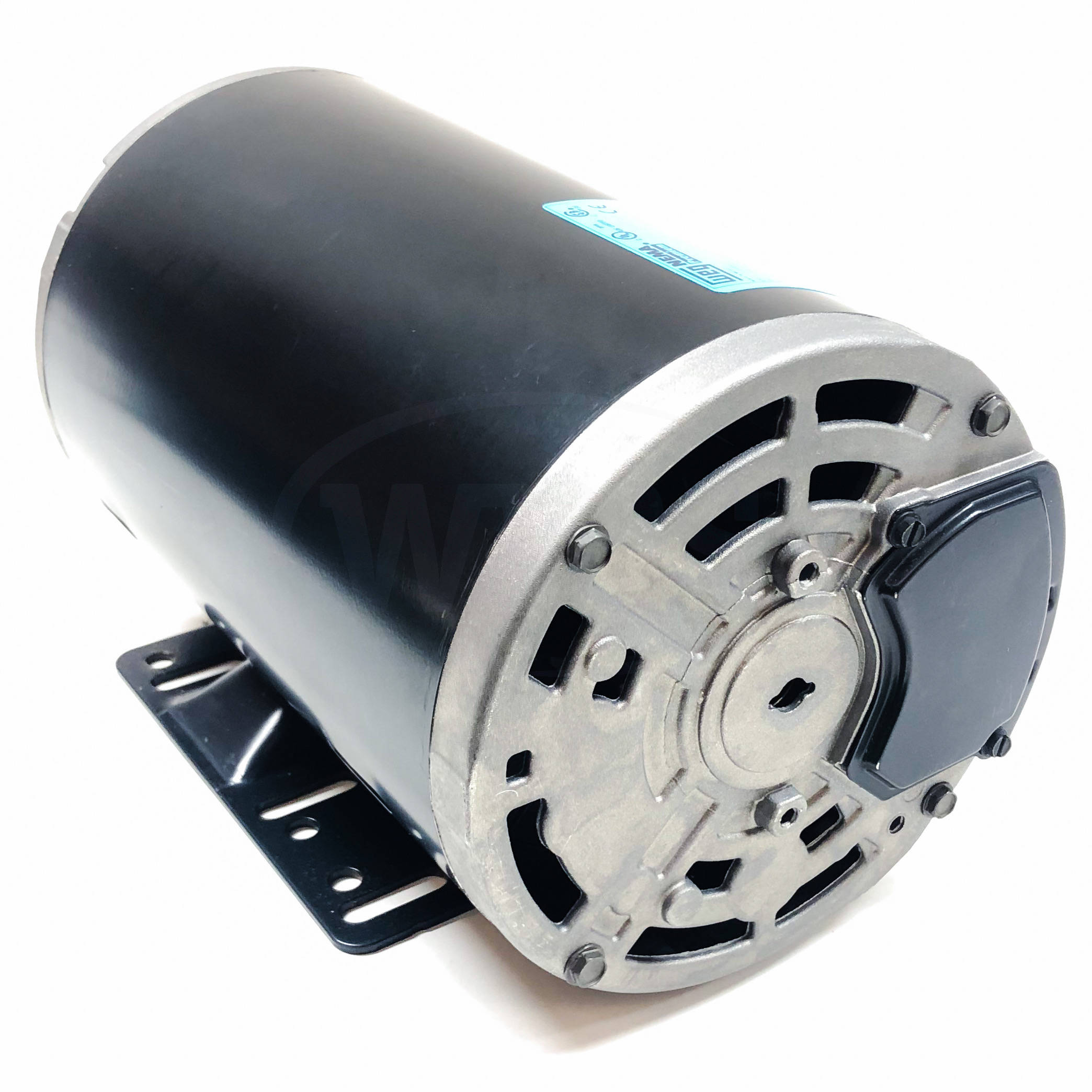

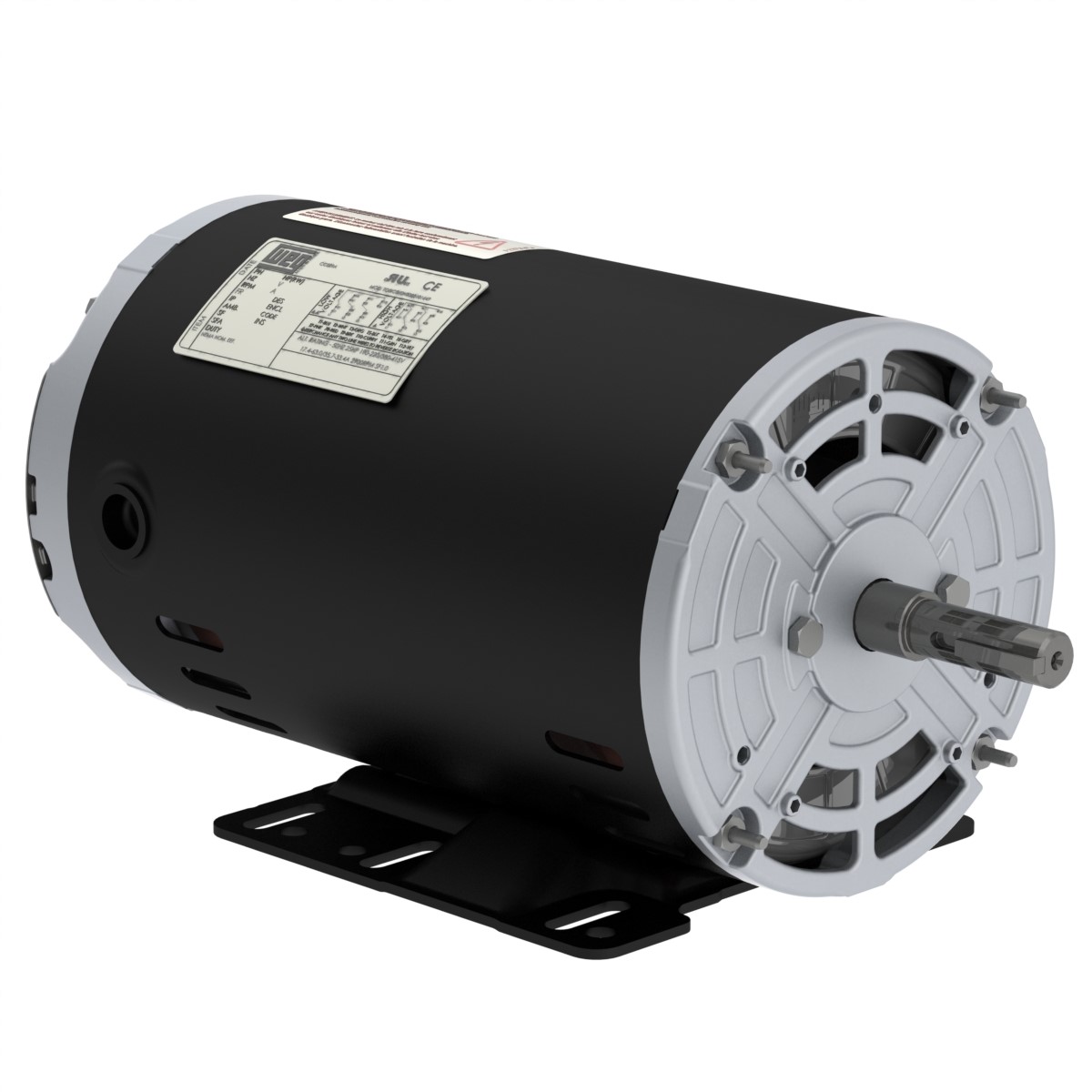

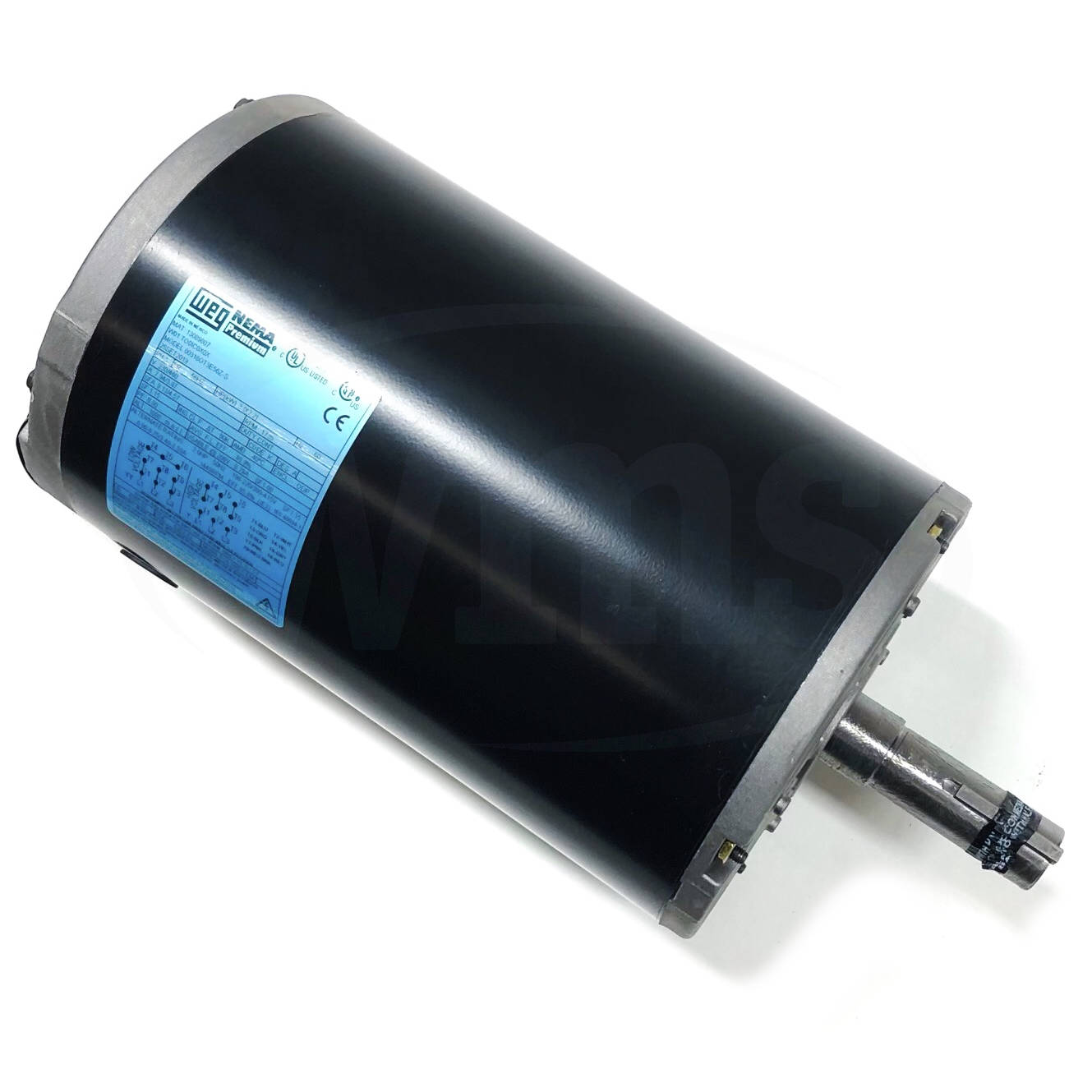

00318OT3E56Z-S WEG 3HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00318OT3E56Z-S

Selected accessories will also be added to cart
$360.75 / Each
Quantity:

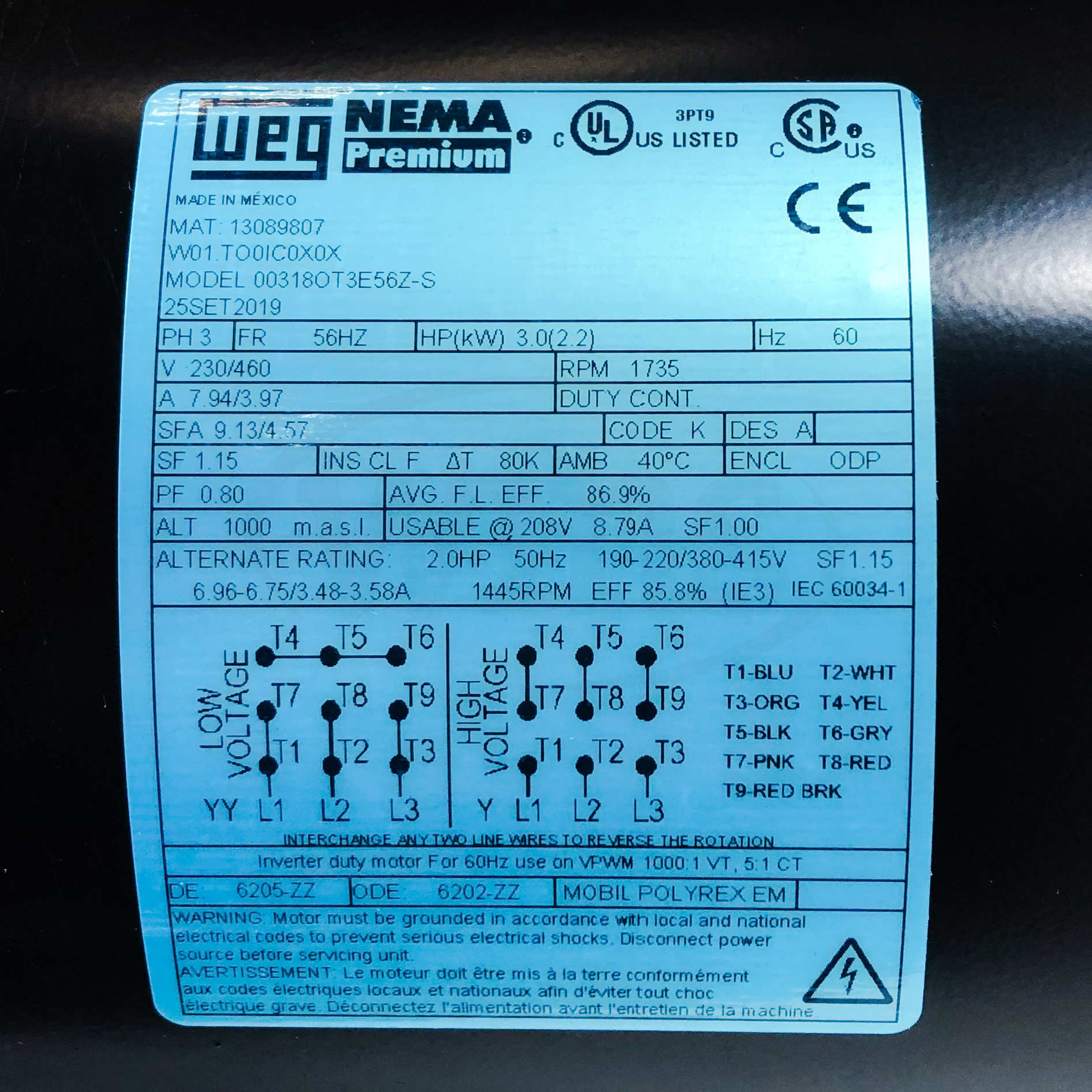

IC01 - ODP, IP21, 56HZ Frame, 208-230/460/190-220/380-415VAC 3 Phase 50/60Hz, 13089807, Foot Mount, Rolled Steel, 7/8" Keyed Shaft

Electric Motors

Frame 56HZ
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1735 rpm
Slip 3.61 %
Rated voltage 208-230/460 V
Rated current 8.79-7.94/3.97 A
L. R. Amperes 66.8-60.3/30.2 A
LRC 7.6x(Code K)
No load current 3.62-4.20/2.10 A
Rated torque 8.96 ft.lb
Locked rotor torque 270 %
Breakdown torque 300 %
Locked rotor time 21s (cold) 12s (hot)
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 45.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.5  86.5  86.9

Power factor

50% 75% 100%
0.59  0.72  0.80

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
