/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/Brake/00318ET3EBM182T-W22 WEG 3HP Electric Brake Motor, 1800RPM

Product ID: 00318ET3EBM182T-W22

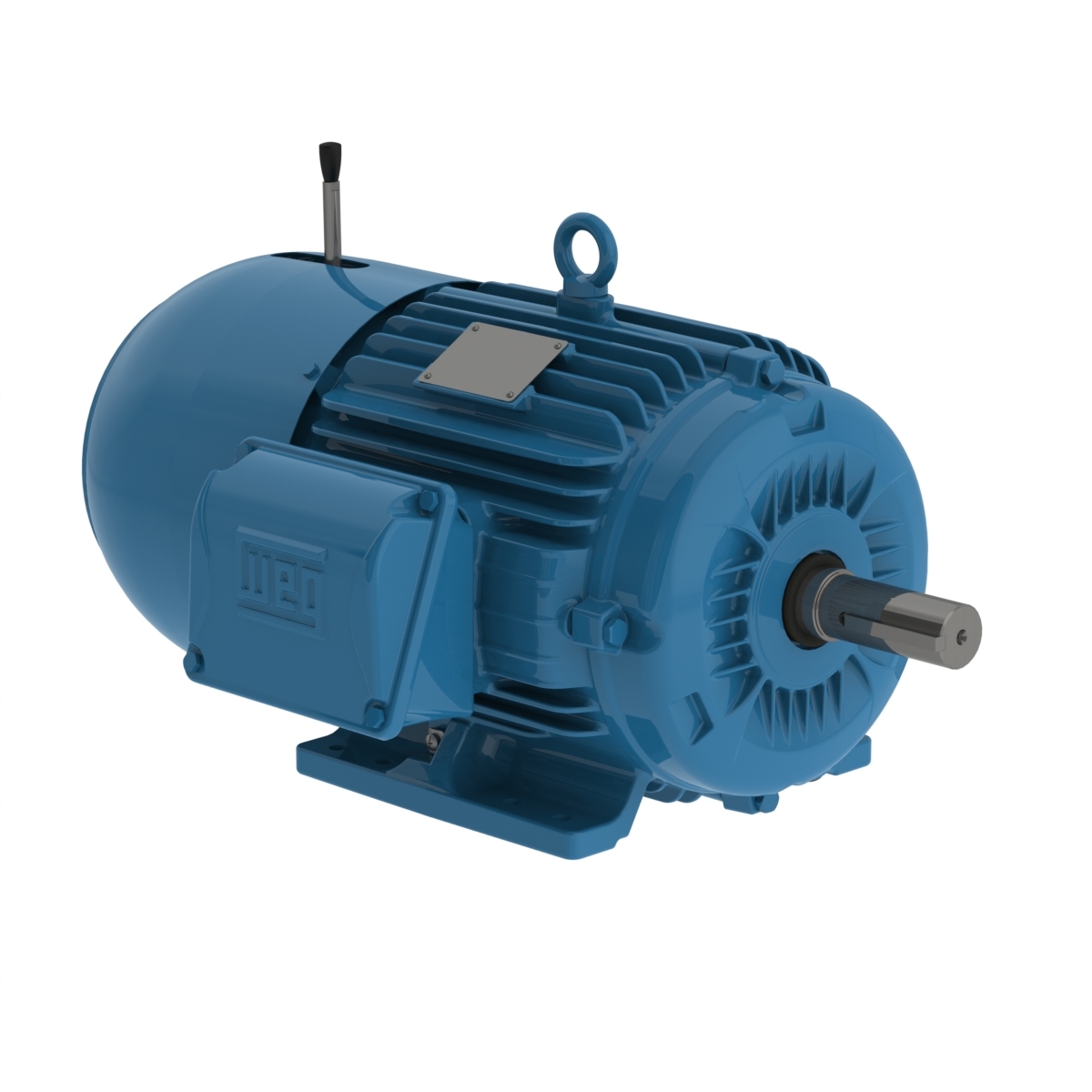

00318ET3EBM182T-W22 WEG 3HP Electric Brake Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00318ET3EBM182T-W22

Selected accessories will also be added to cart

$1,539.00 / Each

Quantity:

IC411 - TEFC, IP55, 182T/184T Frame, 230/460VAC 60Hz 3-Phase, 13500906, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	182/4T
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1760 rpm
Slip	2.22 %
Rated voltage	230/460 V
Rated current	7.82/3.91 A
L. R. Amperes	63.3/31.7 A
LRC	8.1x(Code K)
No load current	4.00/2.00 A
Rated torque	8.95 ft.lb
Locked rotor torque	229 %
Breakdown torque	340 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	0.3401 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	107 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	89.5

Power factor

50%	75%	100%
0.61	0.73	0.79

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Brake Type	WEG - 60.0 Nm
Brake input Voltage	220-240 V
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
