/Products/Electric Motors/Single Phase/WEG/General Purpose, TEFC, W22/00318ES1C184T-W22 WEG 3HP Electric Motor, 1800RPM

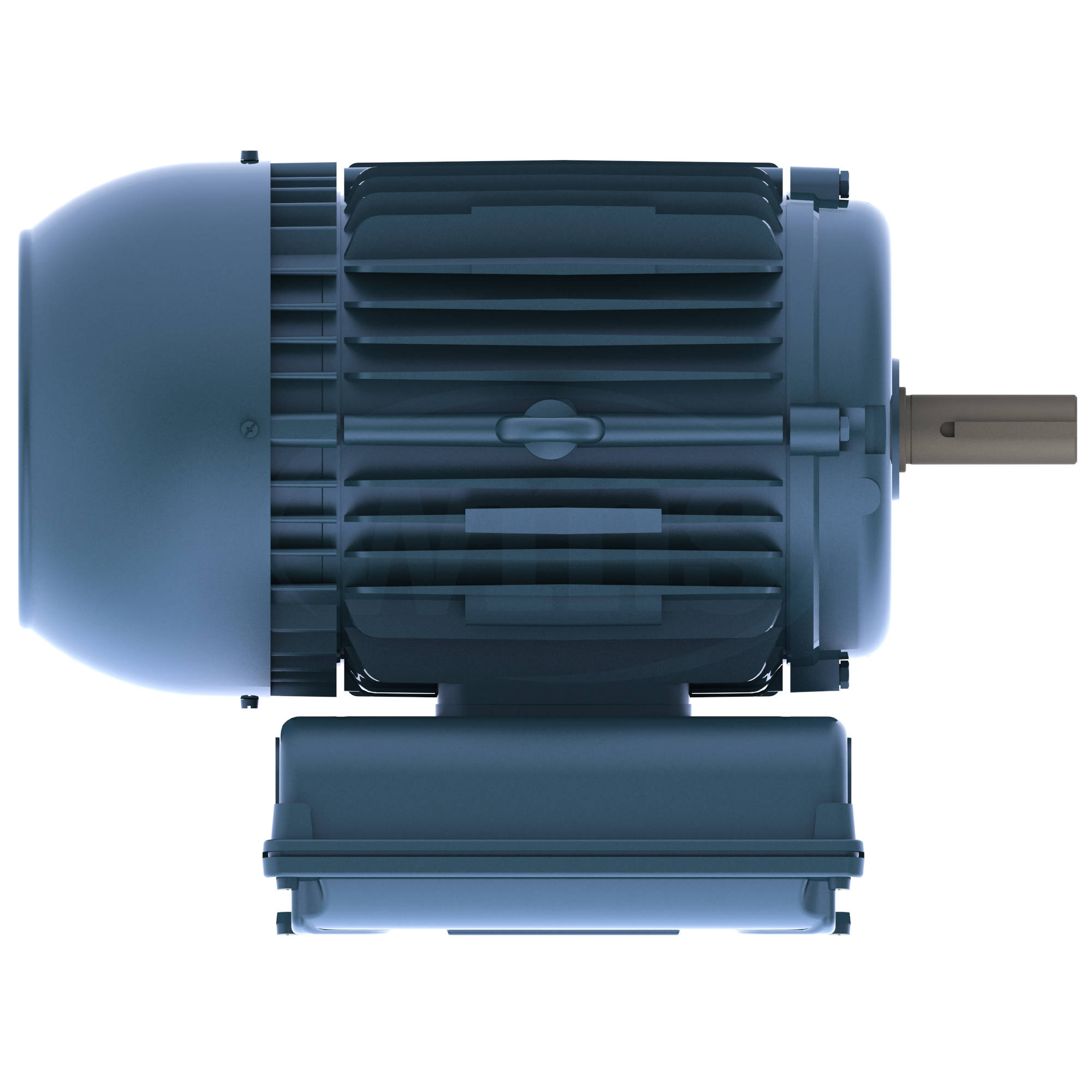

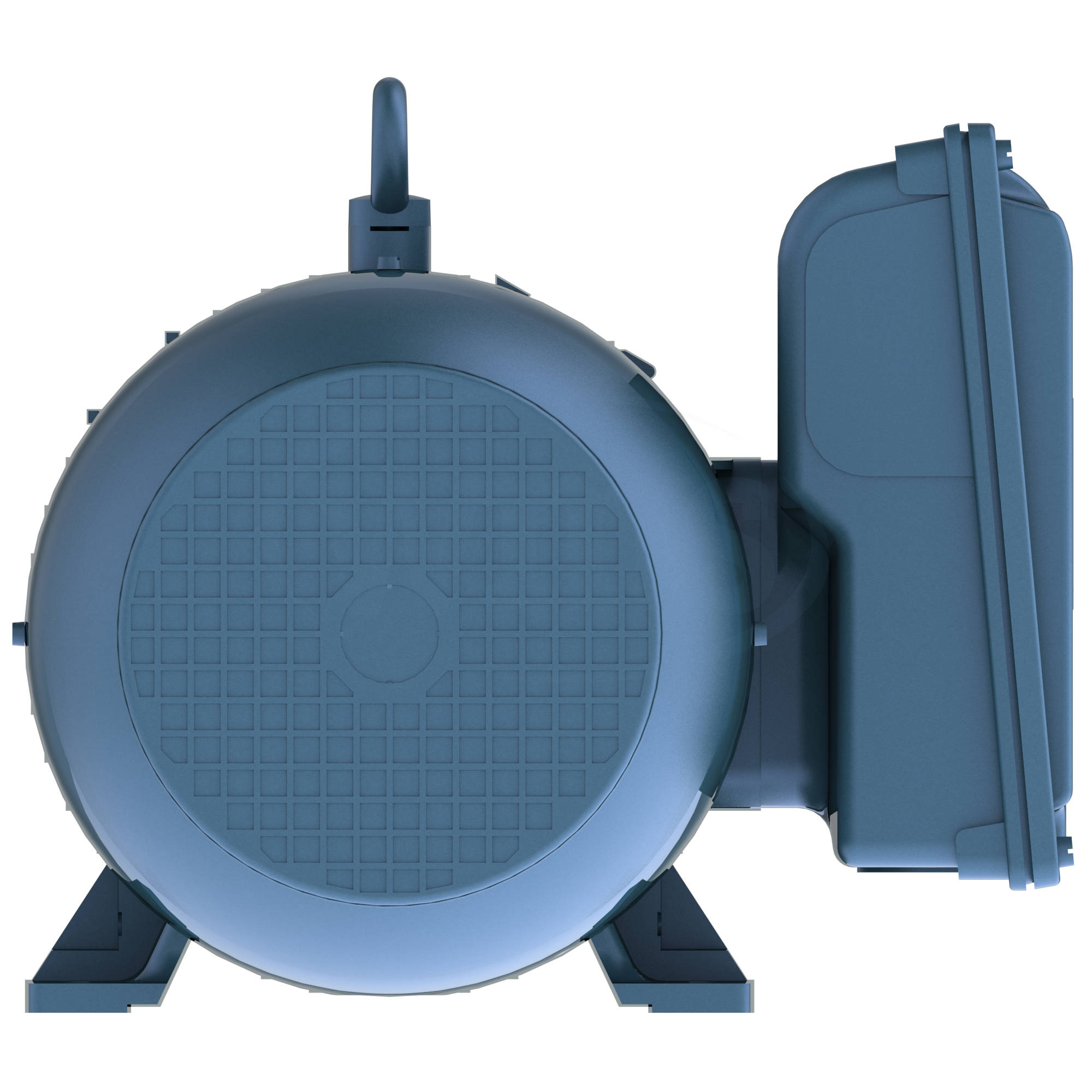

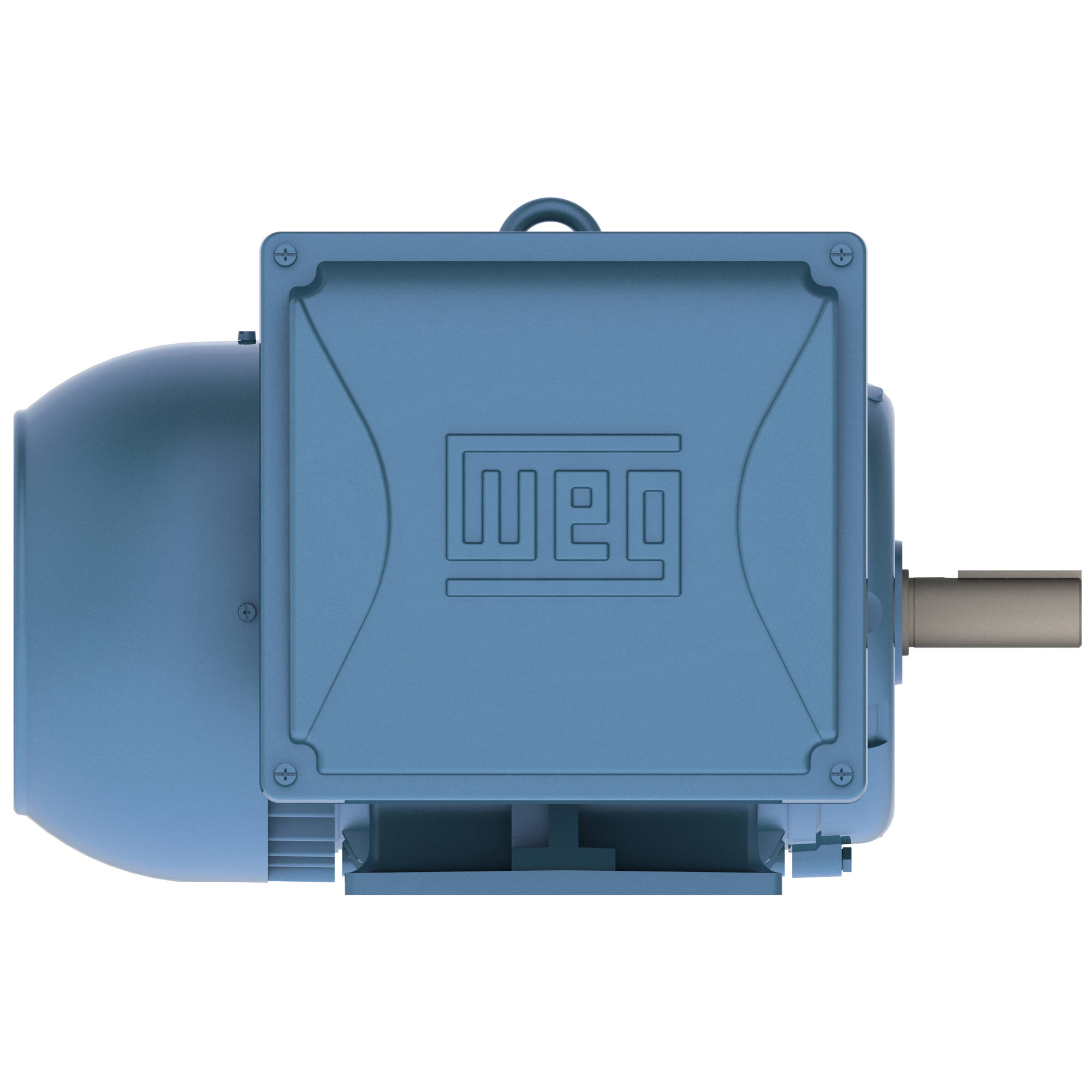

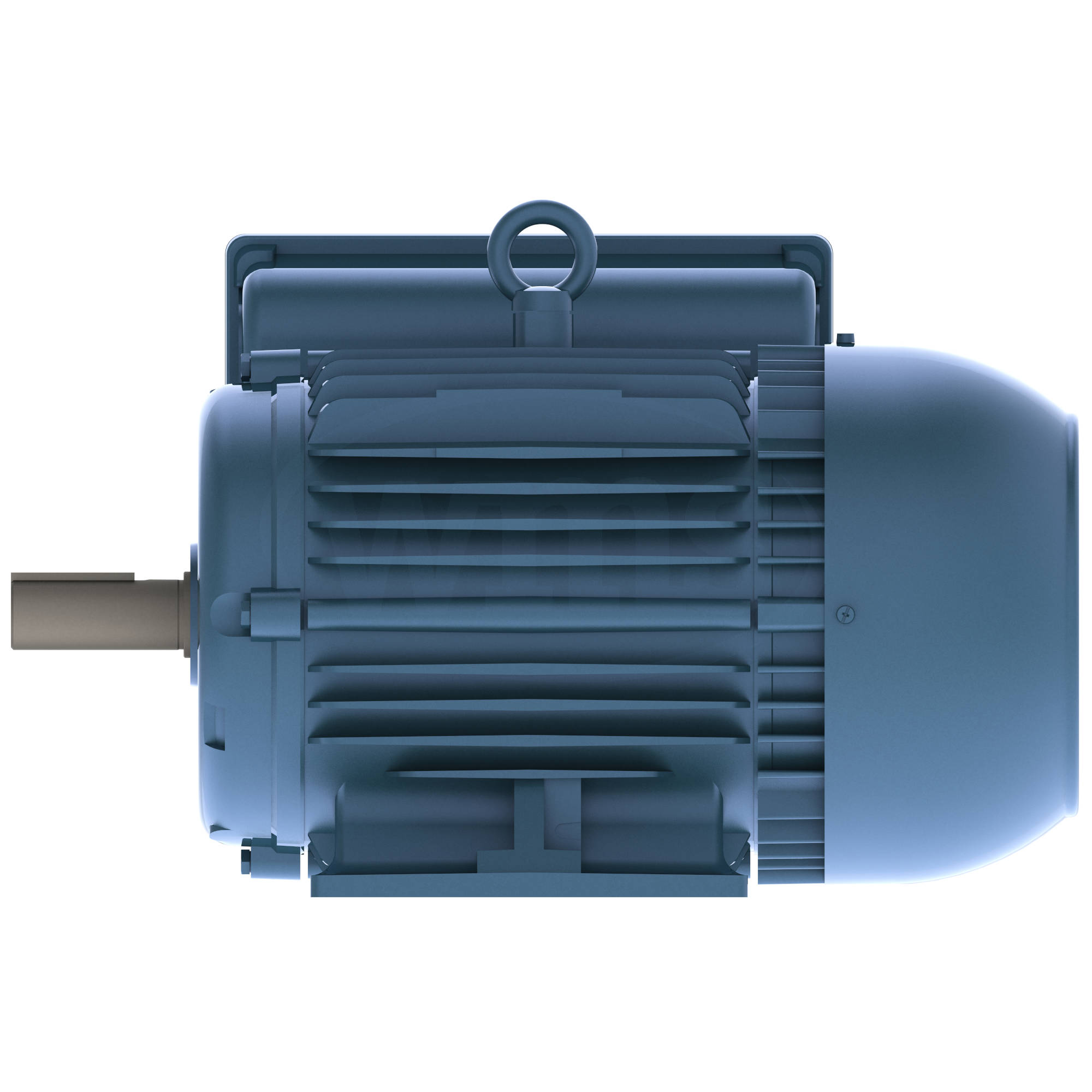

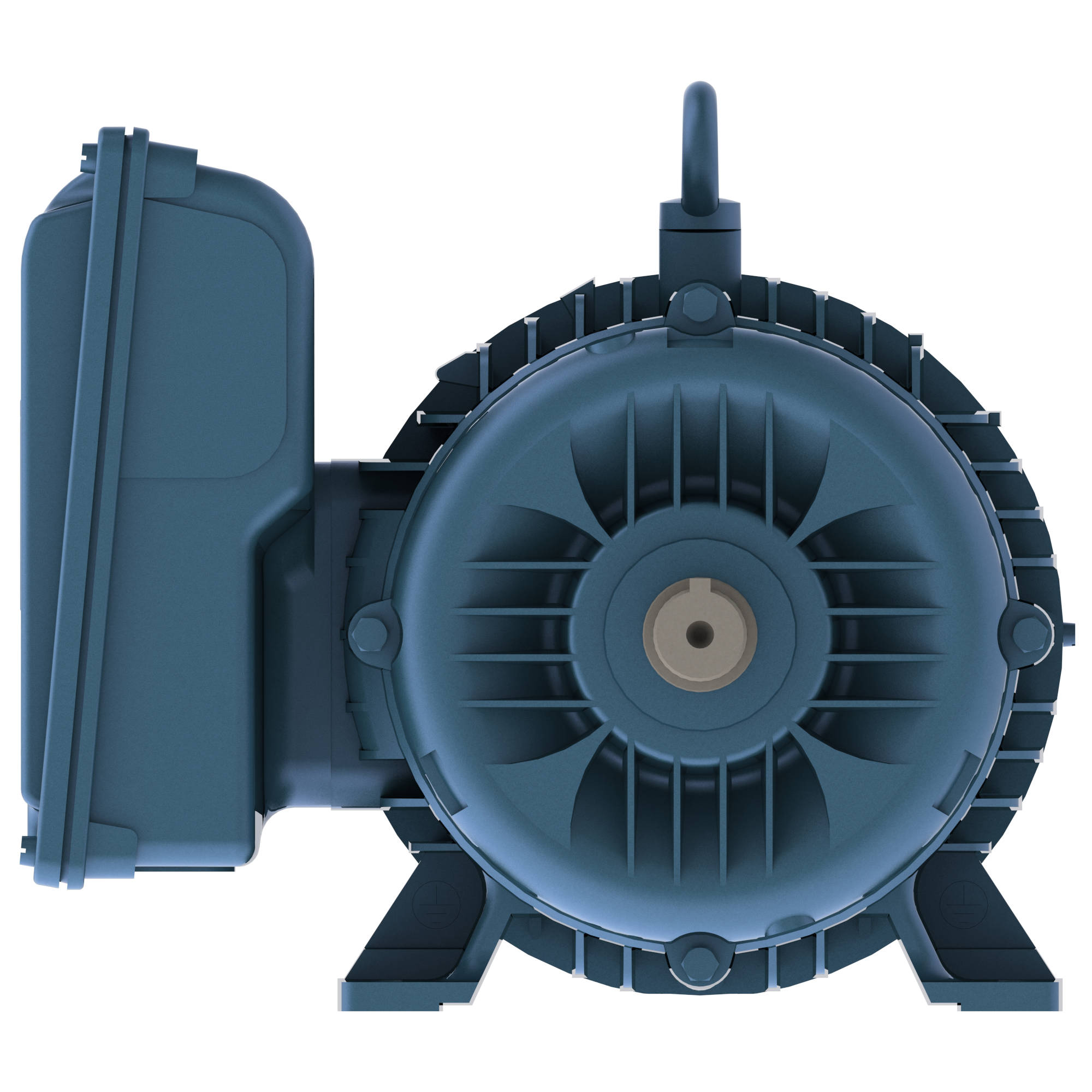

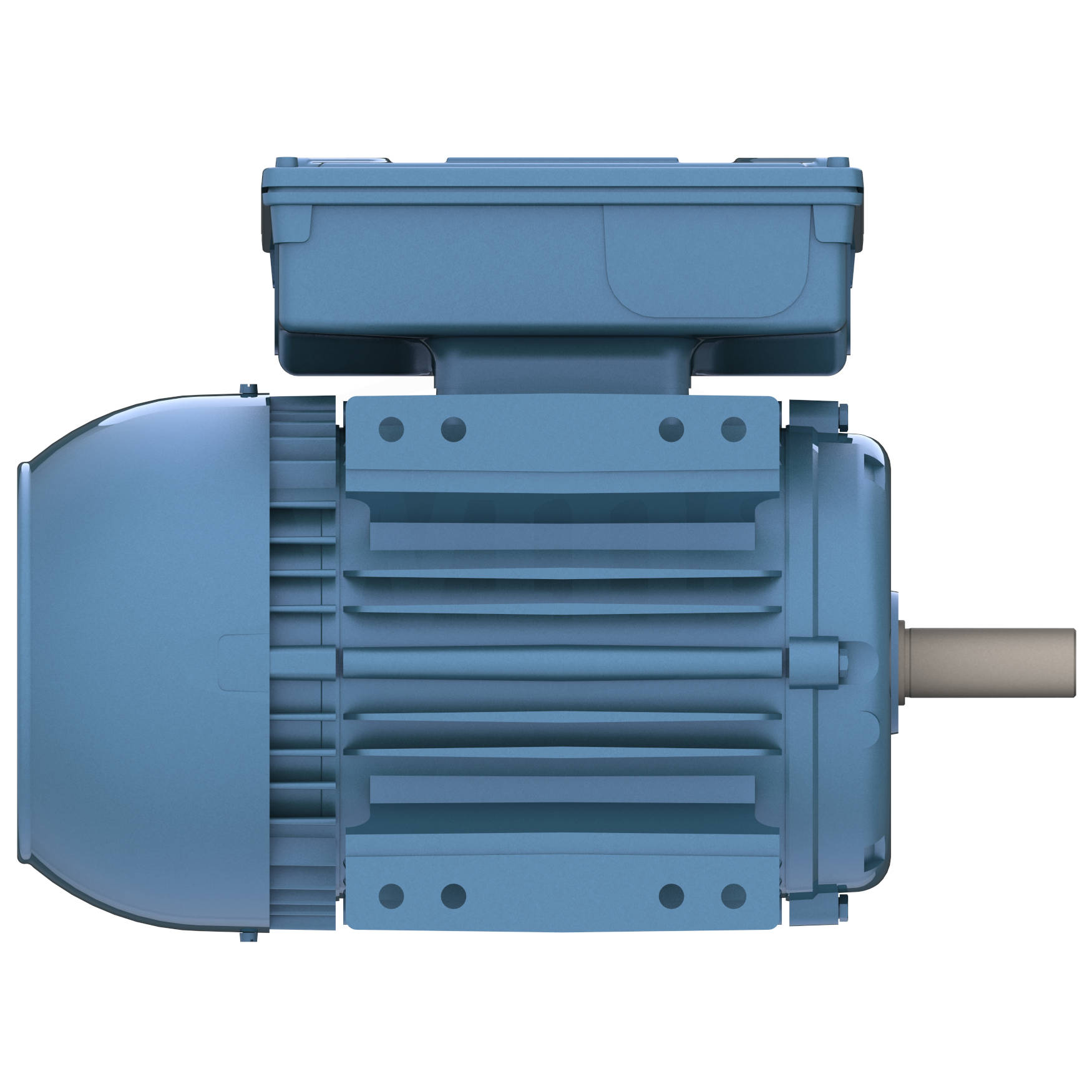

Click Image to Expand

Product ID: 00318ES1C184T-W22

00318ES1C184T-W22 WEG 3HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00318ES1C184T-W22

Selected accessories will also be added to cart
$656.25 / Each
Quantity:
IC411 - TEFC, IP55, 182T/184T Frame, 208-230VAC 60Hz Single Phase, 14113169, Standard Efficiency, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft

Electric Motors

Frame 182/4T
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1745 rpm
Slip 3.06 %
Rated voltage 208-230 V
Rated current 14.5-13.8 A
L. R. Amperes 112-106 A
LRC 7.7x(Code K)
No load current 5.78-6.70 A
Rated torque 9.03 ft.lb
Locked rotor torque 290 %
Breakdown torque 270 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.3735 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 103 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
65.0  74.0  77.0

Power factor

50% 75% 100%
0.79  0.87  0.90

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
