/Products/Electric Motors/3 Phase/WEG/IEEE 841/Foot Mount/00312ST3QIE213T-W22 WEG 3HP Severe Duty Electric Motor, 1200RPM

Product ID: 00312ST3QIE213T-W22

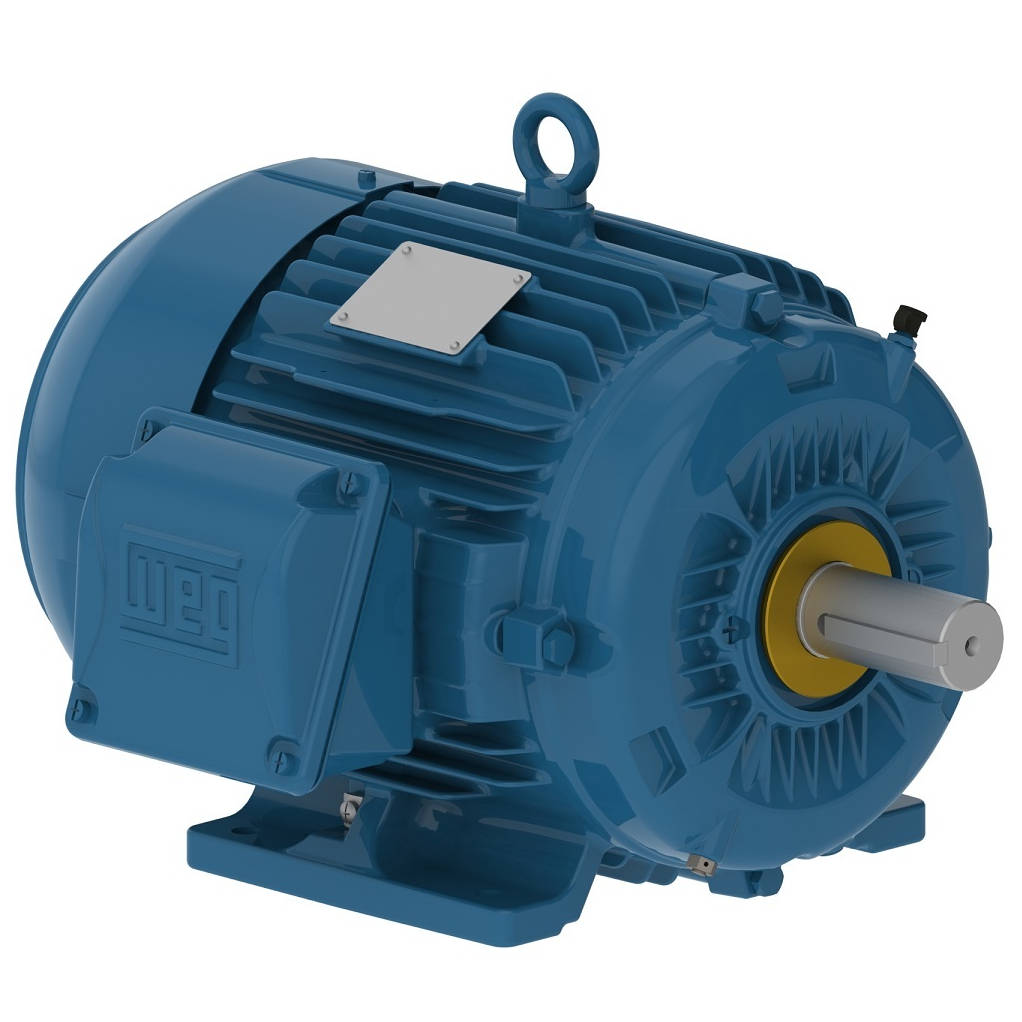

00312ST3QIE213T-W22 WEG 3HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00312ST3QIE213T-W22

Selected accessories will also be added to cart

$1,152.75 / Each

Quantity:

IC411 - TEFC, IP55, 213T/215T Frame, 460VAC 60Hz 3 Phase, 12376409, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	460 V
Rated current	4.41 A
L. R. Amperes	30.9 A
LRC	7.0x(Code K)
No load current	2.75 A
Rated torque	13.4 ft.lb
Locked rotor torque	200 %
Breakdown torque	280 %
Locked rotor time	104s (cold) 58s (hot)

Moment of inertia (J)	1.20 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	55.0 dB(A)
Approx. weight³	167 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	88.5	89.5

Power factor

50%	75%	100%
0.50	0.63	0.70

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	965 rpm
Slip	3.50 %
Rated voltage	380 V
Rated current	5.09 A
L. R. Amperes	29.5 A
LRC	5.8x(Code H)
No load current	2.72 A
Rated torque	16.3 ft.lb
Locked rotor torque	170 %
Breakdown torque	210 %
Locked rotor time	72s (cold) 40s (hot)

Moment of inertia (J)	1.20 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	167 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	87.5

Power factor

50%	75%	100%
0.57	0.70	0.75

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	400 V
Rated current	4.92 A
L. R. Amperes	31.5 A
LRC	6.4x(Code J)
No load current	2.91 A
Rated torque	16.2 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	72s (cold) 40s (hot)

Moment of inertia (J)	1.20 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	167 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	88.5	88.5

Power factor

50%	75%	100%
0.53	0.66	0.73

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	415 V
Rated current	4.87 A
L. R. Amperes	33.1 A
LRC	6.8x(Code J)
No load current	3.05 A
Rated torque	16.2 ft.lb
Locked rotor torque	220 %
Breakdown torque	270 %
Locked rotor time	72s (cold) 40s (hot)

Moment of inertia (J)	1.20 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	167 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	88.5	88.5

Power factor

50%	75%	100%
0.50	0.64	0.71

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 1"
Terminal Block	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
