Product ID: 00312ET3E213T-W22

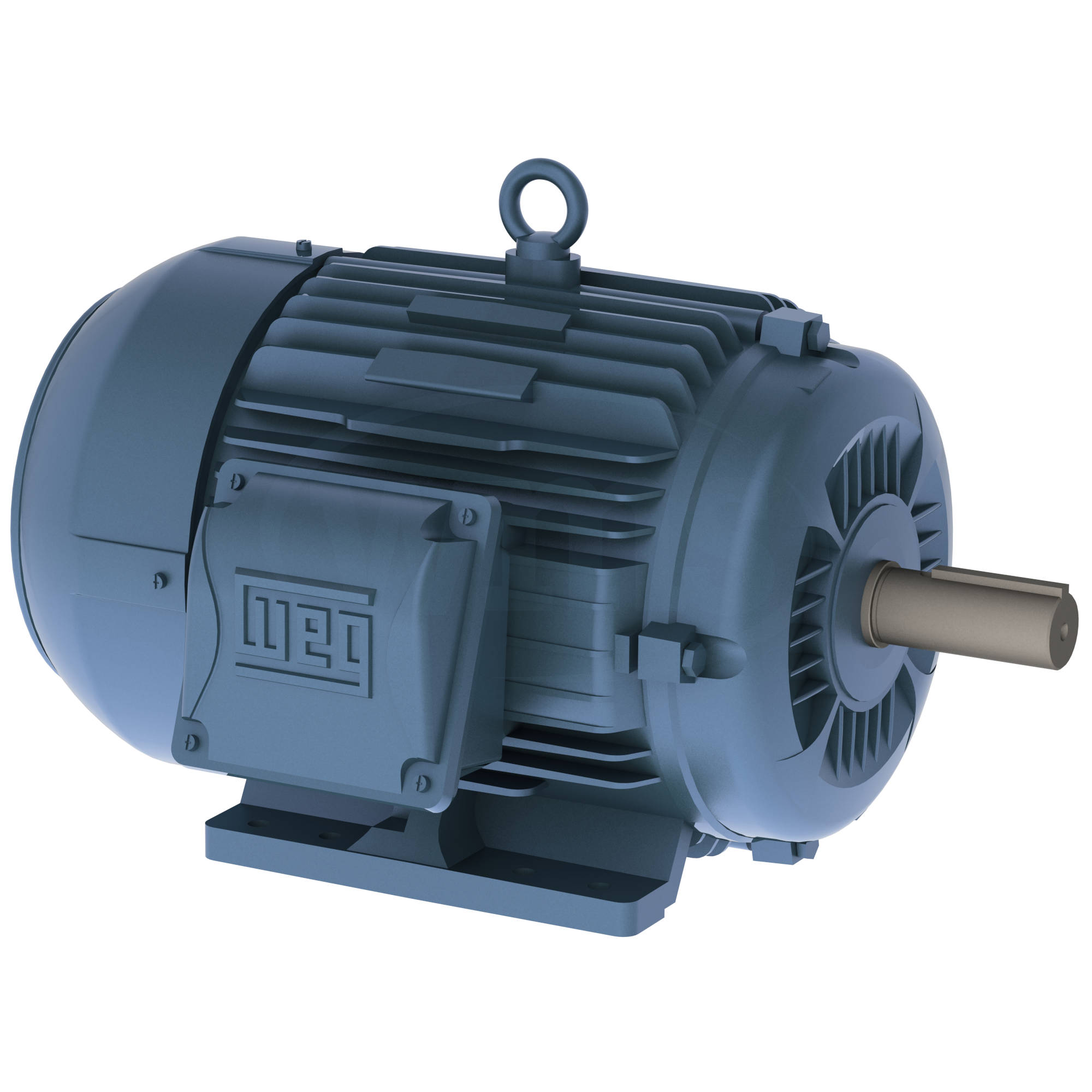

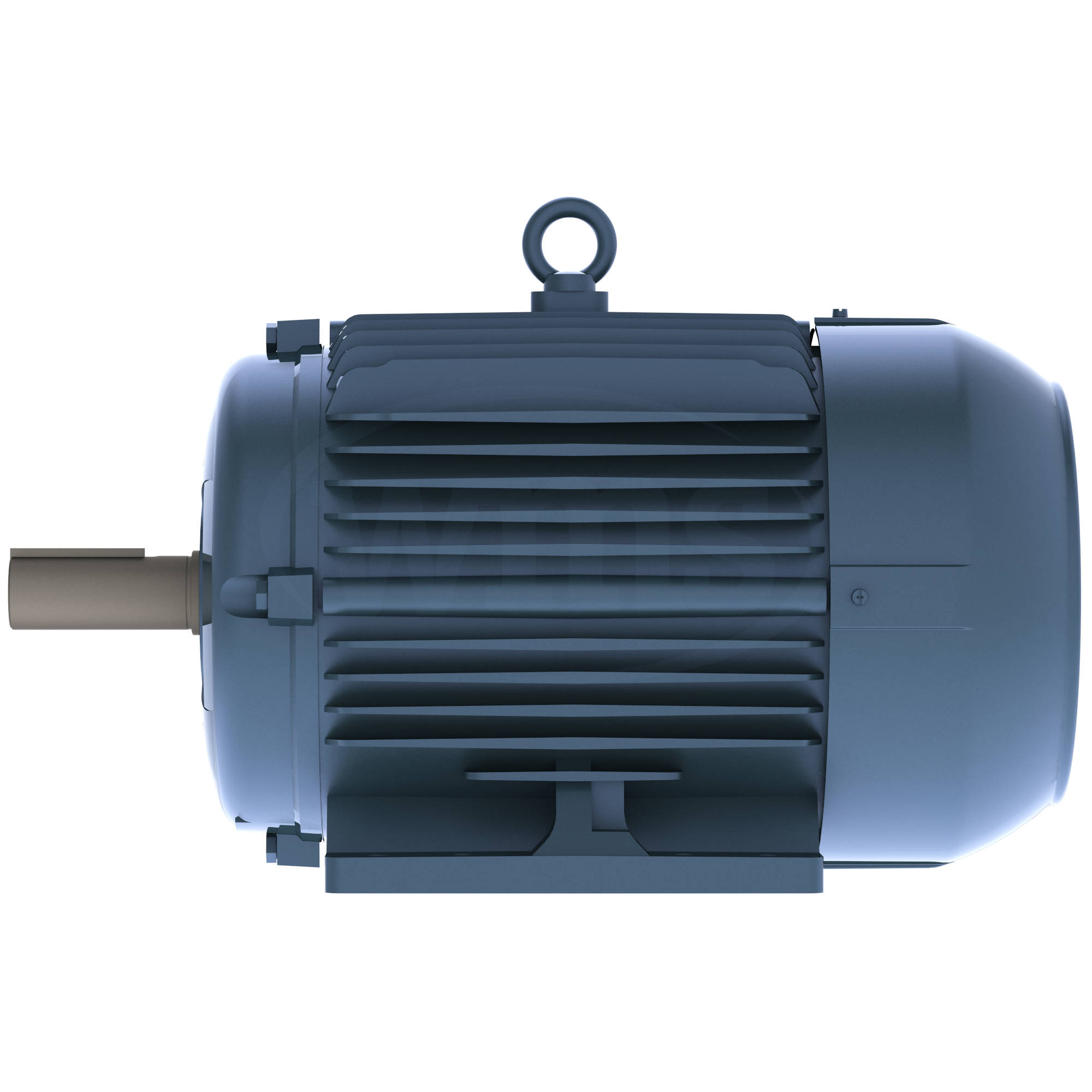

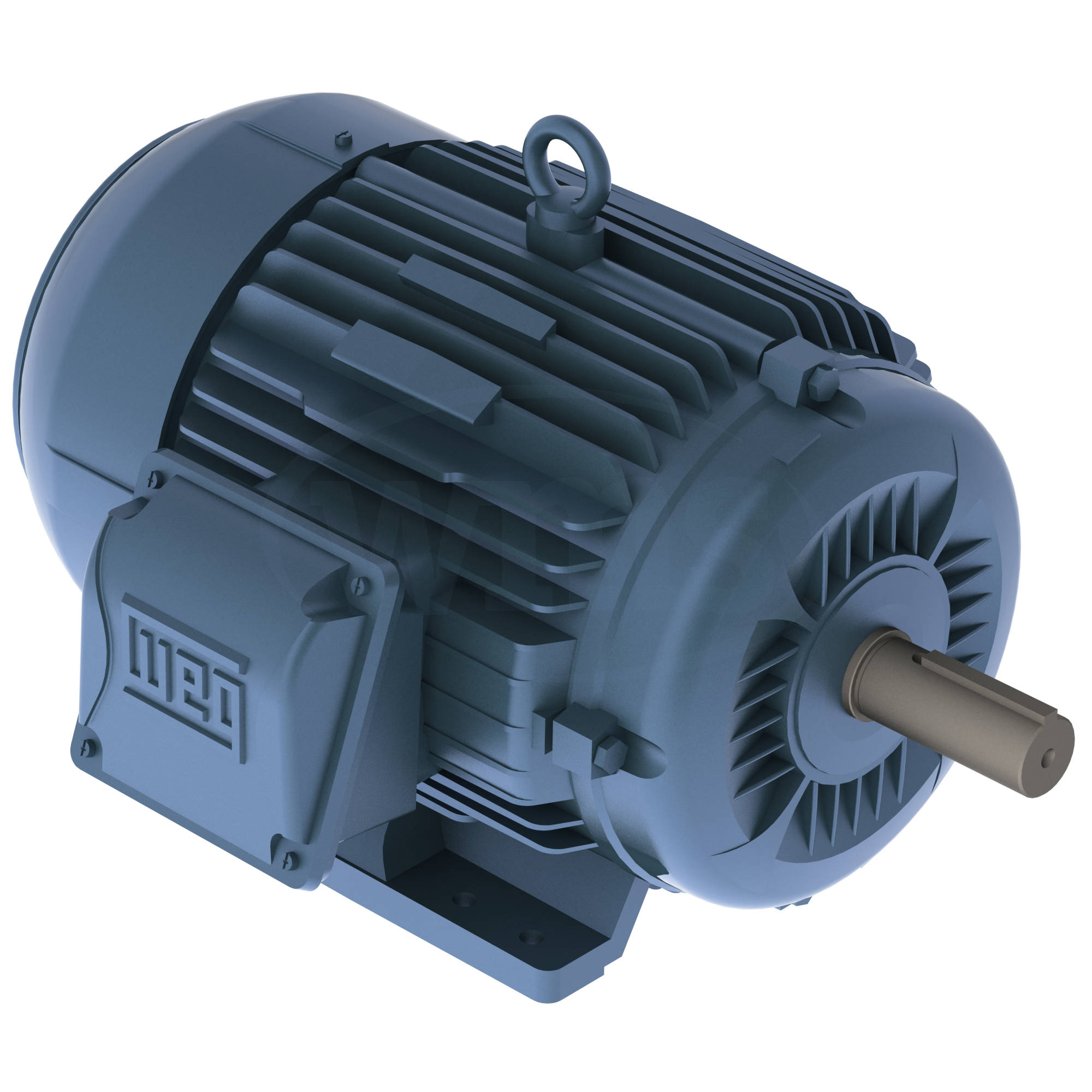

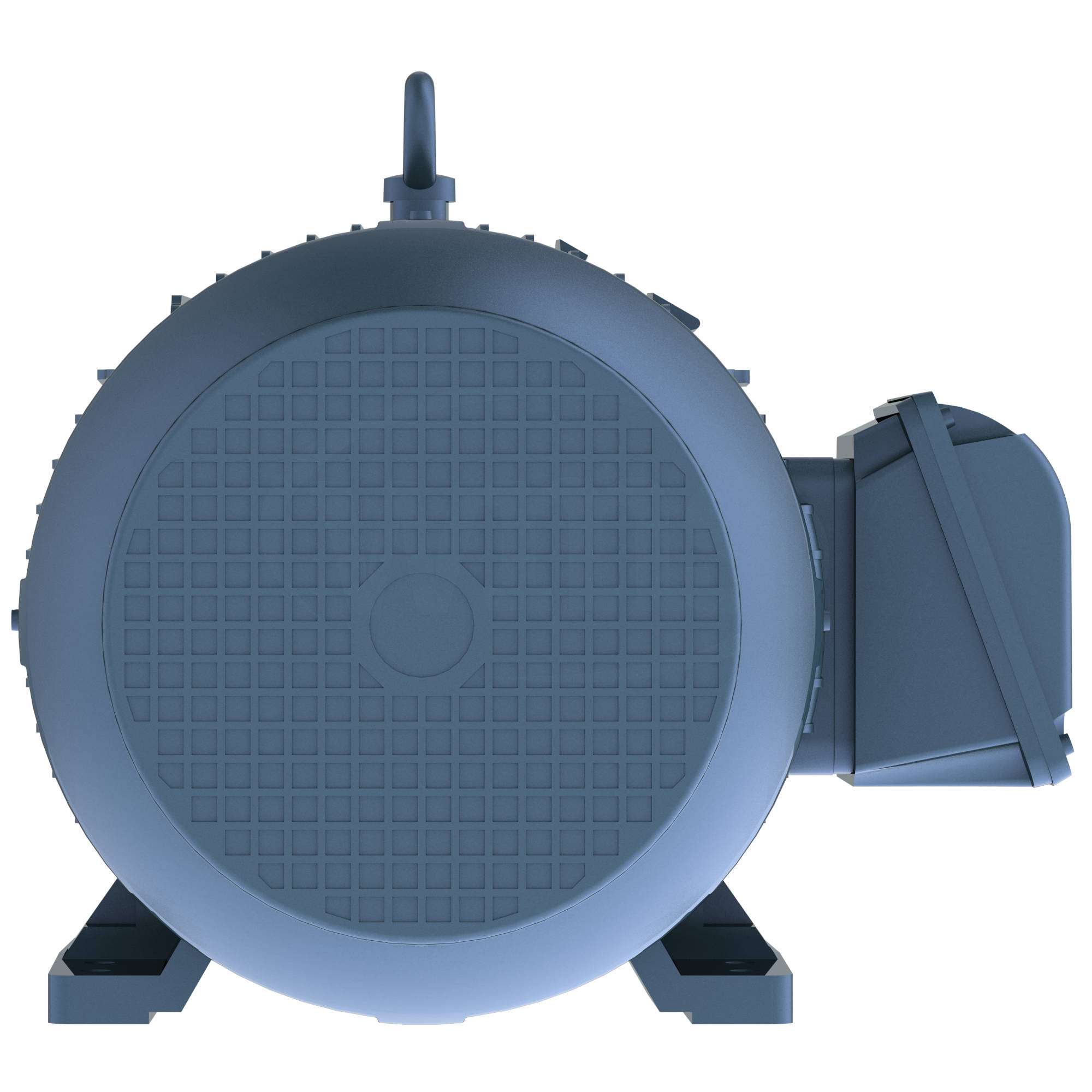

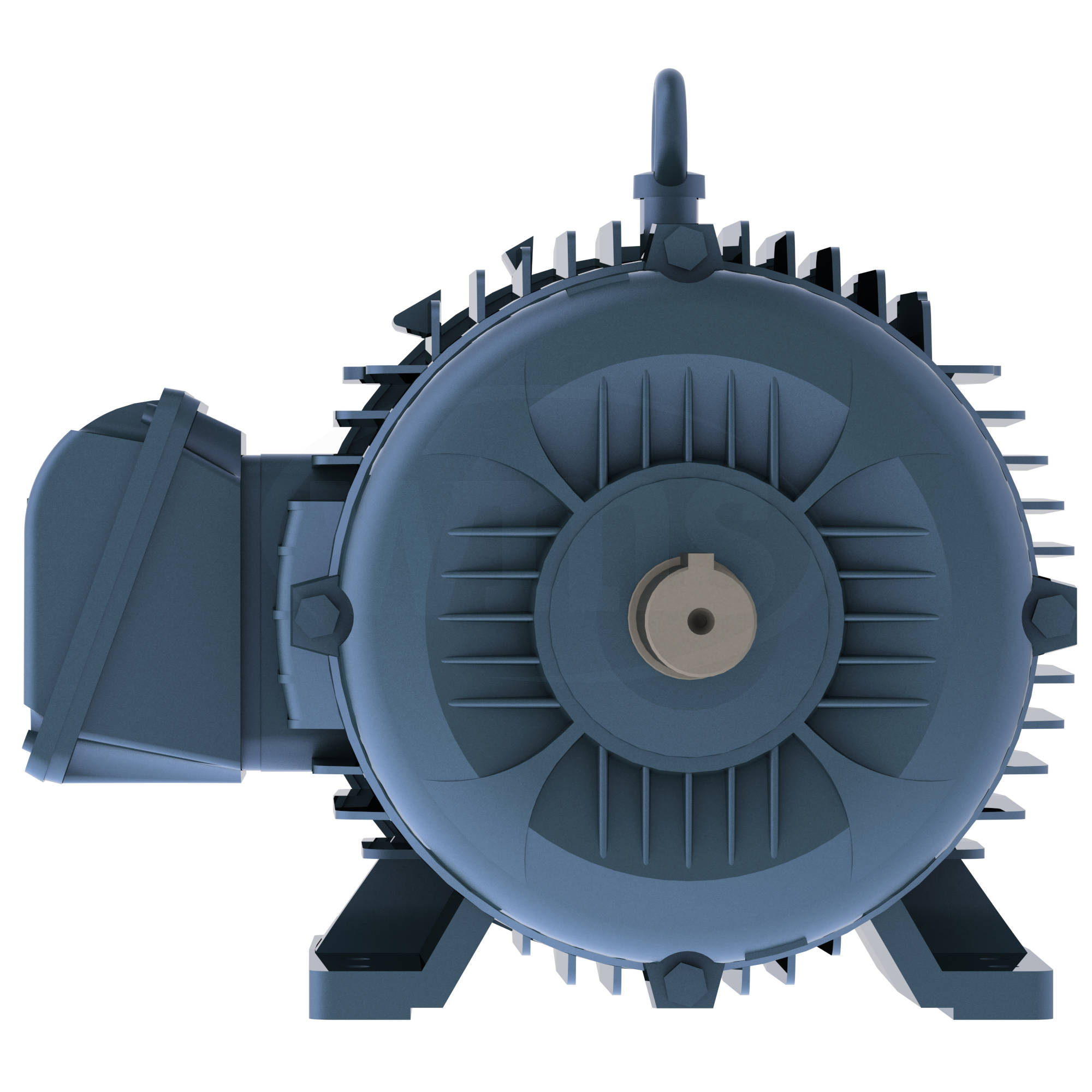

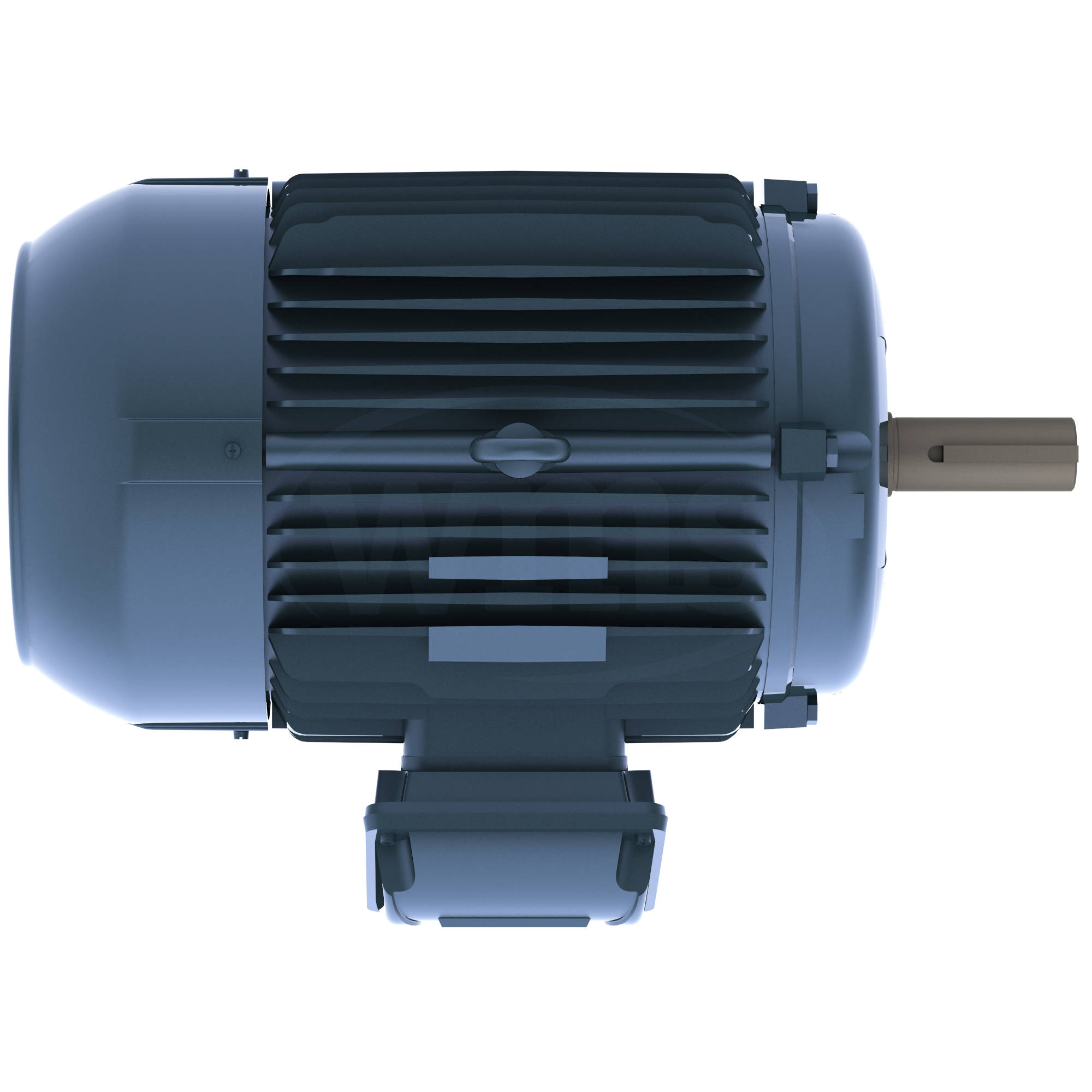

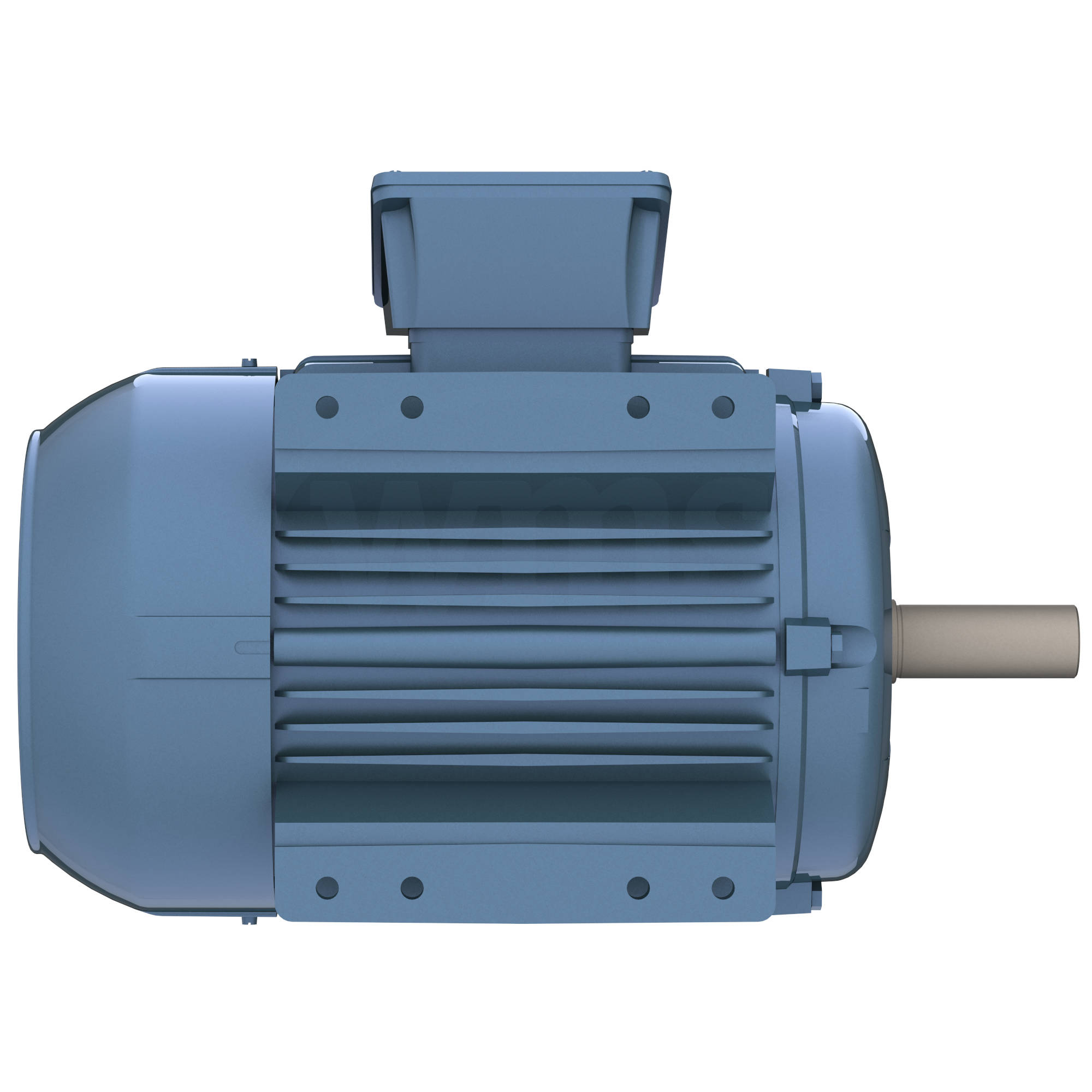

00312ET3E213T-W22 WEG 3HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00312ET3E213T-W22

Selected accessories will also be added to cart

$846.75 / Each

Quantity:

IC411 - TEFC, IP55, 213T/215T Frame, 230/460VAC 60Hz 3 Phase, 12445721, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	230/460 V
Rated current	8.83/4.41 A
L. R. Amperes	61.8/30.9 A
LRC	7.0x(Code K)
No load current	5.50/2.75 A
Rated torque	13.4 ft.lb
Locked rotor torque	200 %
Breakdown torque	280 %
Locked rotor time	104s (cold) 58s (hot)

Moment of inertia (J)	1.20 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	55.0 dB(A)
Approx. weight³	154 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	88.5	89.5

Power factor

50%	75%	100%
0.50	0.63	0.70

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	965 rpm
Slip	3.50 %
Rated voltage	380 V
Rated current	5.09 A
L. R. Amperes	29.5 A
LRC	5.8x(Code H)
No load current	2.72 A
Rated torque	16.3 ft.lb
Locked rotor torque	170 %
Breakdown torque	210 %
Locked rotor time	72s (cold) 40s (hot)

Moment of inertia (J)	1.20 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	154 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	87.5

Power factor

50%	75%	100%
0.57	0.70	0.75

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	400 V
Rated current	4.92 A
L. R. Amperes	31.5 A
LRC	6.4x(Code J)
No load current	2.91 A
Rated torque	16.2 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	72s (cold) 40s (hot)

Moment of inertia (J)	1.20 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	154 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	88.5	88.5

Power factor

50%	75%	100%
0.53	0.66	0.73

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	415 V
Rated current	4.87 A
L. R. Amperes	33.1 A
LRC	6.8x(Code J)
No load current	3.05 A
Rated torque	16.2 ft.lb
Locked rotor torque	220 %
Breakdown torque	270 %
Locked rotor time	72s (cold) 40s (hot)

Moment of inertia (J)	1.20 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	154 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	88.5	88.5

Power factor

50%	75%	100%
0.50	0.64	0.71

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
