/Products/Electric Motors/3 Phase/WEG/IEEE 841/Foot Mount/00309ST3QIE215T-W22 WEG 3HP Severe Duty Electric Motor, 900RPM

Product ID: 00309ST3QIE215T-W22

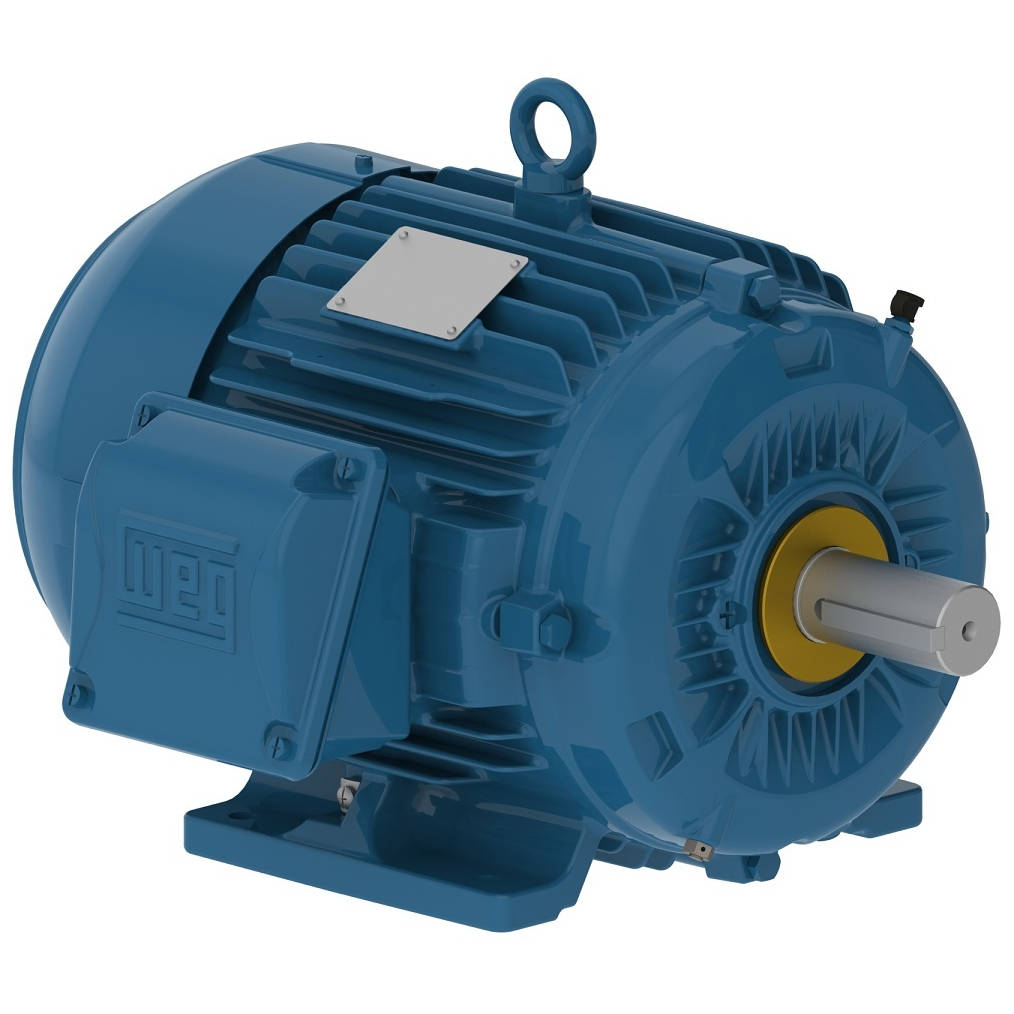

00309ST3QIE215T-W22 WEG 3HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00309ST3QIE215T-W22

Selected accessories will also be added to cart

$2,162.25 / Each

Quantity:

IC411 - TEFC, IP55, 213T/215T Frame, 460VAC 60Hz 3 Phase, 11684303, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	870 rpm
Slip	3.33 %
Rated voltage	460 V
Rated current	4.55 A
L. R. Amperes	30.9 A
LRC	6.8x(Code K)
No load current	2.71 A
Rated torque	18.1 ft.lb
Locked rotor torque	229 %
Breakdown torque	275 %
Locked rotor time	79s (cold) 44s (hot)

Moment of inertia (J)	2.11 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	193 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	85.5	85.5

Power factor

50%	75%	100%
0.50	0.63	0.71

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	710 rpm
Slip	5.33 %
Rated voltage	380 V
Rated current	5.33 A
L. R. Amperes	28.2 A
LRC	5.3x(Code G)
No load current	2.68 A
Rated torque	22.2 ft.lb
Locked rotor torque	180 %
Breakdown torque	200 %
Locked rotor time	59s (cold) 33s (hot)

Moment of inertia (J)	2.11 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	193 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	84.0	82.5

Power factor

50%	75%	100%
0.57	0.70	0.76

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	715 rpm
Slip	4.67 %
Rated voltage	400 V
Rated current	5.20 A
L. R. Amperes	31.2 A
LRC	6.0x(Code J)
No load current	2.86 A
Rated torque	22.0 ft.lb
Locked rotor torque	220 %
Breakdown torque	240 %
Locked rotor time	59s (cold) 33s (hot)

Moment of inertia (J)	2.11 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	193 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	84.0	82.5

Power factor

50%	75%	100%
0.54	0.67	0.74

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	720 rpm
Slip	4.00 %
Rated voltage	415 V
Rated current	5.06 A
L. R. Amperes	32.9 A
LRC	6.5x(Code J)
No load current	3.00 A
Rated torque	21.9 ft.lb
Locked rotor torque	260 %
Breakdown torque	270 %
Locked rotor time	59s (cold) 33s (hot)

Moment of inertia (J)	2.11 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	193 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	84.0	84.0

Power factor

50%	75%	100%
0.51	0.64	0.72

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
