/Products/Electric Motors/3 Phase/WEG/Air Handling/Dual Speed/00289EP3PCT145V-W22 WEG 2.0/0.5HP Cooling Tower Electric Motor, 1800/900RPM

Product ID: 00289EP3PCT145V-W22

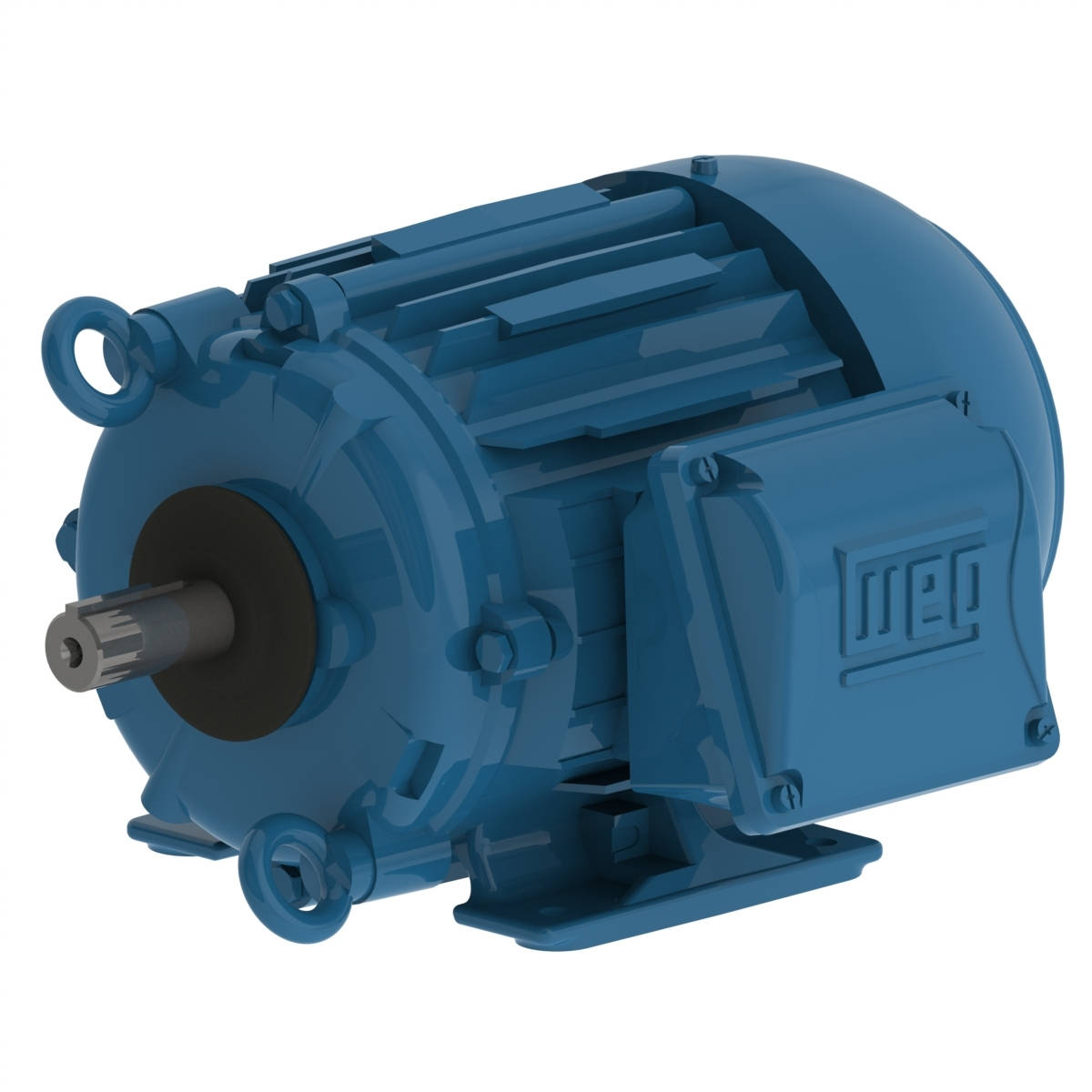

00289EP3PCT145V-W22 WEG 2.0/0.5HP Cooling Tower Electric Motor, 1800/900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00289EP3PCT145V-W22

Selected accessories will also be added to cart

$696.75 / Each

Quantity:

IC411 - TEFC, IP55, 143T/145T Frame, 200VAC 60Hz 3 Phase, 12172469, High Efficiency, Foot Mounted, Cast Iron Frame, 7/8" Keyed Shaft

Details
Purchase Components

200 V 60 Hz 4P
200 V 60 Hz 8P

Electric Motors

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	8/4
Frequency	60 Hz
Rated speed	1735 rpm
Slip	3.61 %
Rated voltage	200 V
Rated current	6.39 A
L. R. Amperes	51.2 A
LRC	8.0x(Code K)
No load current	3.68 A
Rated torque	6.05 ft.lb
Locked rotor torque	270 %
Breakdown torque	300 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.1590 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	2.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.0	81.5	82.5

Power factor

50%	75%	100%
0.60	0.73	0.82

Frame	143/5T
Output	0.5 HP (0.37 kW)
Number of Poles	8/4
Frequency	60 Hz
Rated speed	860 rpm
Slip	4.44 %
Rated voltage	200 V
Rated current	2.88 A
L. R. Amperes	10.4 A
LRC	3.6x(Code J)
No load current	1.98 A
Rated torque	3.05 ft.lb
Locked rotor torque	180 %
Breakdown torque	229 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	0.1590 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	48.0 dB(A)
Approx. weight³	2.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
55.0	62.0	64.0

Power factor

50%	75%	100%
0.37	0.48	0.58

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	200 - 240 V
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
