/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/JP Close-Coupled Pump/JP, ODP/00236OT3V145JP-S WEG 2HP JP Close Coupled Pump Electric Motor, 3600RPM

Product ID: 00236OT3V145JP-S

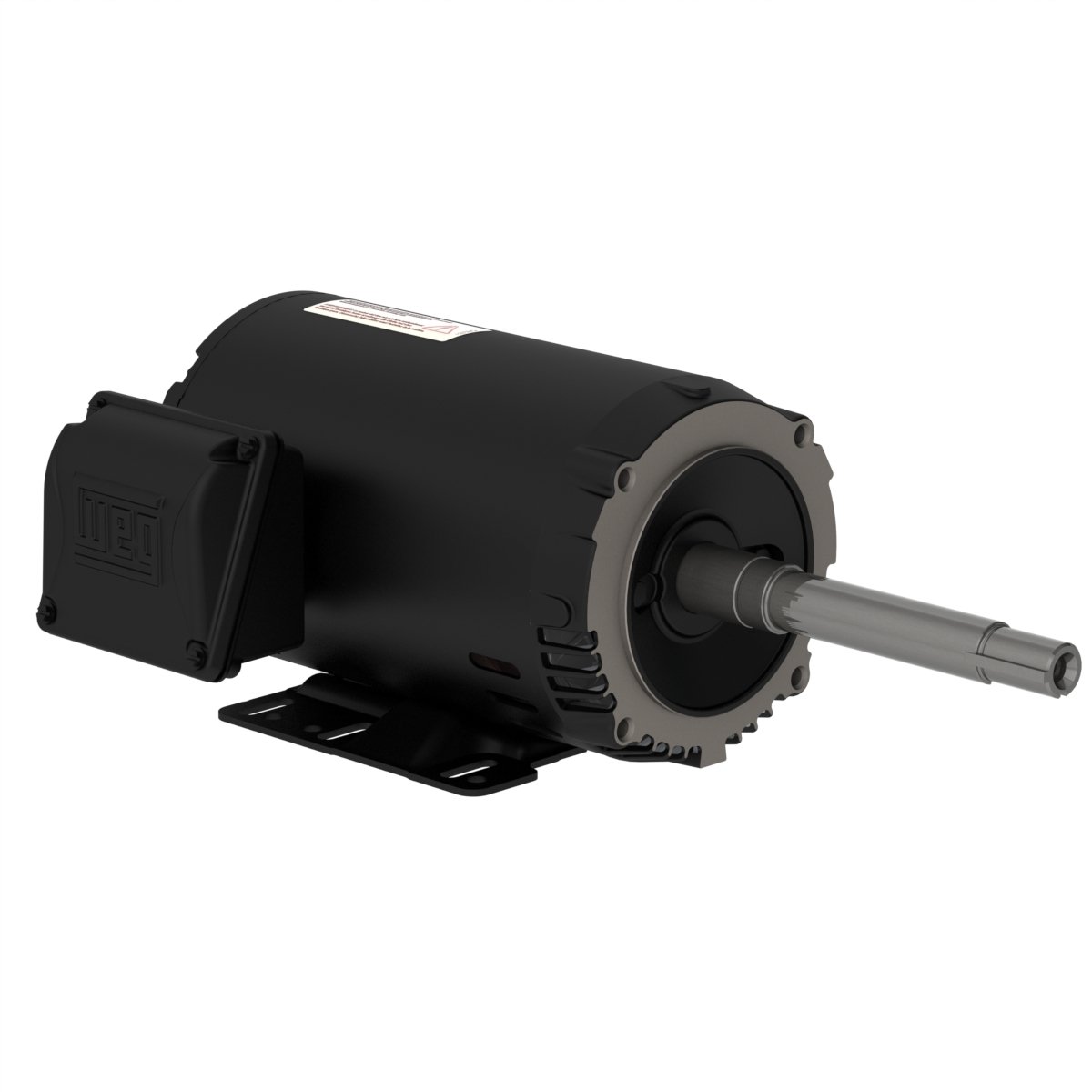

00236OT3V145JP-S WEG 2HP JP Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236OT3V145JP-S

Selected accessories will also be added to cart

$435.00 / Each

Quantity:

IC01 - ODP, 143JP/145JP Frame, 200/400VAC 3-Phase 60Hz, 13500647, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	143/5JP
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3510 rpm
Slip	2.50 %
Rated voltage	200/400 V
Rated current	5.57/2.78 A
L. R. Amperes	49.5/24.8 A
LRC	8.9x(Code K)
No load current	2.11/1.05 A
Rated torque	2.95 ft.lb
Locked rotor torque	220 %
Breakdown torque	330 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.1151 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	36.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	85.5	85.5

Power factor

50%	75%	100%
0.77	0.86	0.91

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
