/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Foot Mount/00236OT1B56-S WEG 2HP General Purpose Electric Motor, 3600RPM

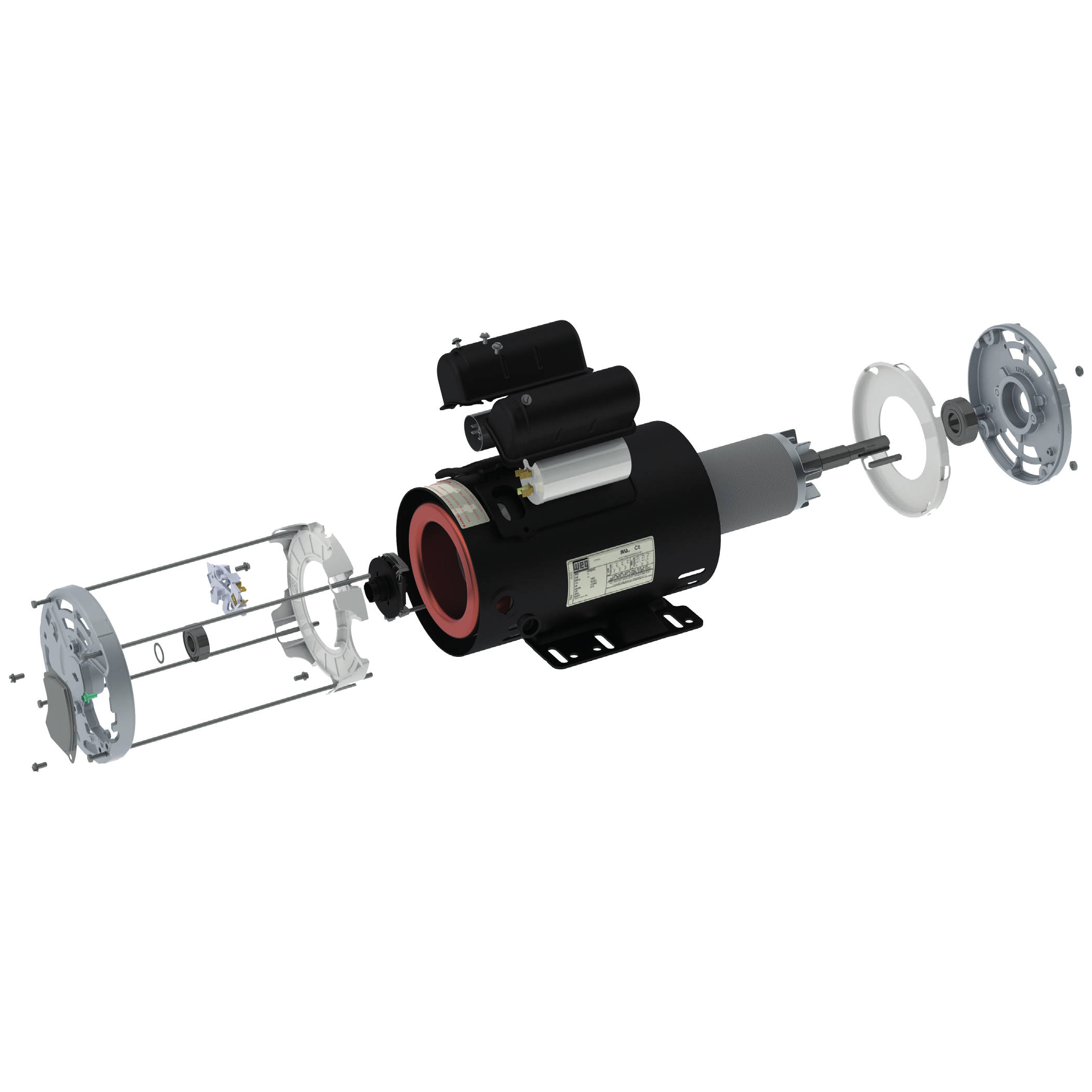

Click Image to Expand

Product ID: 00236OT1B56-S

00236OT1B56-S WEG 2HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236OT1B56-S

Selected accessories will also be added to cart
$363.75 / Each
Quantity:
IC01 - ODP, 56H Frame, 115/208-230VAC Single Phase 60Hz, 13069782, Foot Mount, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56H
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 16.8/9.29-8.40 A
L. R. Amperes 144/79.9-72.2 A
LRC 8.6x(Code K)
No load current 4.40/1.90-2.20 A
Rated torque 2.96 ft.lb
Locked rotor torque 250 %
Breakdown torque 280 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.0747 sq.ft.lb
Design A
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
Approx. weight³ 40.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
76.0  81.0  82.9

Power factor

50% 75% 100%
0.90  0.94  0.94

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
