/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/JM Close-Coupled Pump/00236ET3H145JM-W22 WEG 2HP JM Close Coupled Pump Electric Motor, 3600RPM

Product ID: 00236ET3H145JM-W22

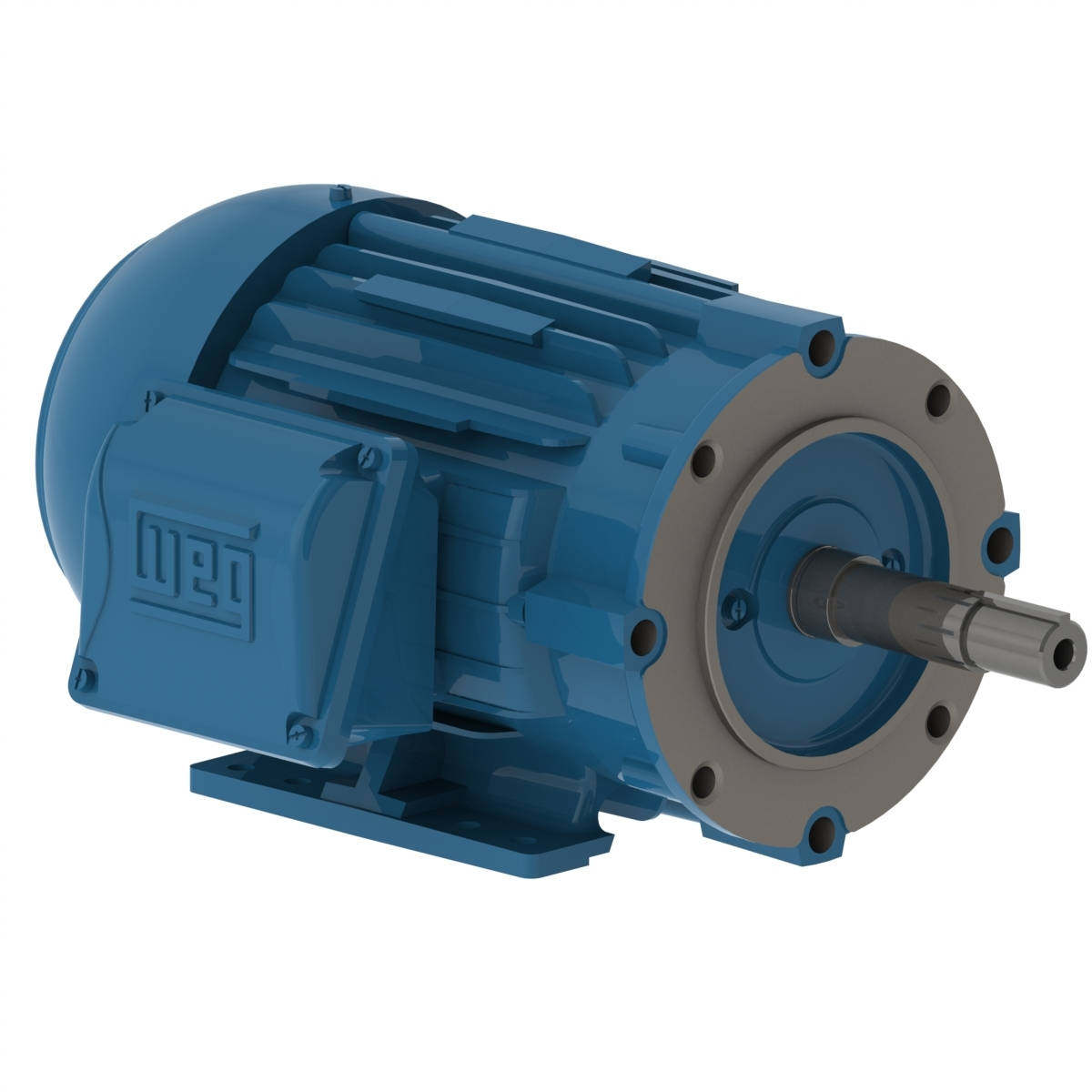

00236ET3H145JM-W22 WEG 2HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236ET3H145JM-W22

Selected accessories will also be added to cart

$512.25 / Each

Quantity:

IC411 - TEFC, IP55, 143JM/145JM Frame, 575VAC 60Hz 3 Phase, 13469728, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	143/5JM
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3475 rpm
Slip	3.47 %
Rated voltage	575 V
Rated current	2.05 A
L. R. Amperes	18.2 A
LRC	8.9x(Code L)
No load current	0.720 A
Rated torque	3.02 ft.lb
Locked rotor torque	350 %
Breakdown torque	380 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.0605 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	53.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	85.5	85.5

Power factor

50%	75%	100%
0.71	0.80	0.86

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Pump Seal	Mechanical Seal
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
