/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Jet Pump, Foot Mount/00236ET3EJP56J-S WEG 2HP Jet Pump Electric Motor, 3600RPM

Product ID: 00236ET3EJP56J-S

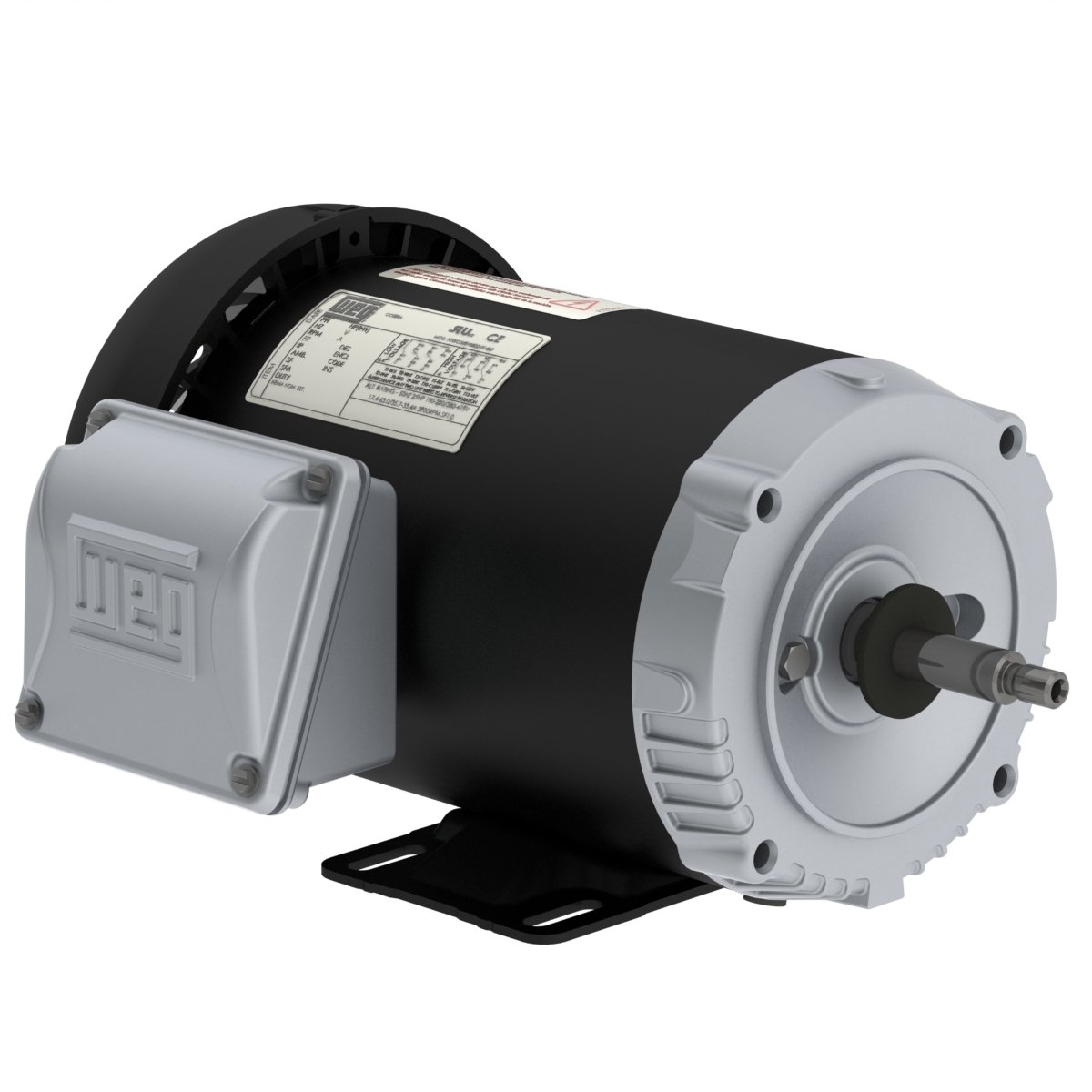

00236ET3EJP56J-S WEG 2HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236ET3EJP56J-S

Selected accessories will also be added to cart

$401.25 / Each

Quantity:

IC411 - TEFC, 56HJ Frame, 208-230/460VAC 3-Phase 50/60Hz, 13521998, J-Type, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	56HJ
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3520 rpm
Slip	2.22 %
Rated voltage	208-230/460 V
Rated current	5.46-4.94/2.47 A
L. R. Amperes	54.1-48.9/24.5 A
LRC	9.9x(Code L)
No load current	1.83-2.13/1.06 A
Rated torque	2.94 ft.lb
Locked rotor torque	250 %
Breakdown torque	300 %
Locked rotor time	23s (cold) 13s (hot)
Moment of inertia (J)	0.1279 sq.ft.lb

Design	B
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	CCW
Noise level²	68.0 dB(A)
Approx. weight³	40.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	85.5	85.5

Power factor

50%	75%	100%
0.73	0.83	0.89

Frame	56HJ
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2875 rpm
Slip	4.17 %
Rated voltage	190/380 V
Rated current	5.94/2.97 A
L. R. Amperes	44.0/22.0 A
LRC	7.4x(Code J)
No load current	2.10/1.05 A
Rated torque	3.60 ft.lb
Locked rotor torque	229 %
Breakdown torque	280 %
Locked rotor time	21s (cold) 12s (hot)
Moment of inertia (J)	0.1279 sq.ft.lb

Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	CCW
Noise level²	65.0 dB(A)
Approx. weight³	40.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	84.6	83.3

Power factor

50%	75%	100%
0.79	0.88	0.92

Frame	56HJ
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2900 rpm
Slip	3.33 %
Rated voltage	220/415 V
Rated current	5.23/2.77 A
L. R. Amperes	46.0/24.4 A
LRC	8.8x(Code K)
No load current	2.27/1.20 A
Rated torque	3.57 ft.lb
Locked rotor torque	280 %
Breakdown torque	340 %
Locked rotor time	18s (cold) 10s (hot)
Moment of inertia (J)	0.1279 sq.ft.lb

Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	CCW
Noise level²	65.0 dB(A)
Approx. weight³	40.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
83.3	84.9	84.5

Power factor

50%	75%	100%
0.73	0.84	0.89

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	AISI 304 Stainless Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Without Key
Drip Cover	Without
Resilient Base	Without
