/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/C-Face, Footless/00236ET3E56CFL-S WEG 2HP General Purpose Electric Motor, 3600RPM
00236ET3E56CFL-S WEG 2HP General Purpose Electric Motor, 3600RPM

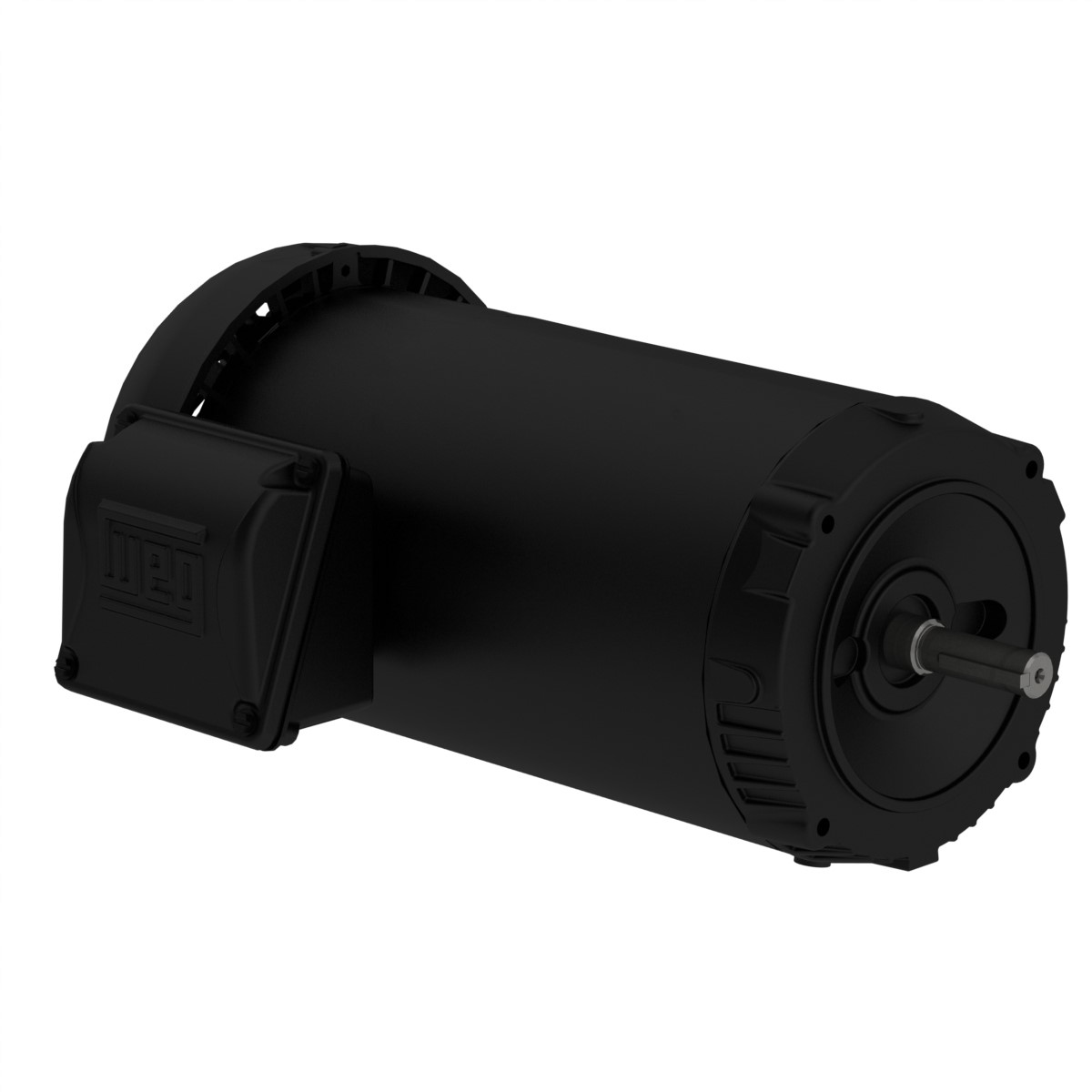

Enlarge Photo

Product ID: 00236ET3E56CFL-S

00236ET3E56CFL-S WEG 2HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236ET3E56CFL-S

Selected accessories will also be added to cart
$387.75 / Each
Quantity:
IC411 - TEFC, IP55, 56C Frame, 208-230/460VAC 3-Phase 50/60Hz, 14786573, C-Face, Footless, Rolled Steel, NEMA Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56C
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 208-230/460 V
Rated current 5.46-4.94/2.47 A
L. R. Amperes 54.1-48.9/24.5 A
LRC 9.9x(Code L)
No load current 1.83-2.13/1.06 A
Rated torque 2.94 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.1279 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 39.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.5  85.5  85.5

Power factor

50% 75% 100%
0.73  0.83  0.89
Frame 56C
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2875 rpm
Slip 4.17 %
Rated voltage 190/380 V
Rated current 5.94/2.97 A
L. R. Amperes 44.0/22.0 A
LRC 7.4x(Code J)
No load current 2.10/1.05 A
Rated torque 3.60 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.1279 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 39.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  84.6  83.3

Power factor

50% 75% 100%
0.79  0.88  0.92
Frame 56C
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2900 rpm
Slip 3.33 %
Rated voltage 220/415 V
Rated current 5.23/2.77 A
L. R. Amperes 46.0/24.4 A
LRC 8.8x(Code K)
No load current 2.27/1.20 A
Rated torque 3.57 ft.lb
Locked rotor torque 280 %
Breakdown torque 340 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.1279 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 39.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
83.3  84.9  84.5

Power factor

50% 75% 100%
0.73  0.84  0.89

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
