/Products/Electric Motors/Single Phase/WEG/Rolled Steel, TEFC/Jet Pump/00236ES1BJPR56J-S WEG 2HP Jet Pump Electric Motor, 3600RPM

Product ID: 00236ES1BJPR56J-S

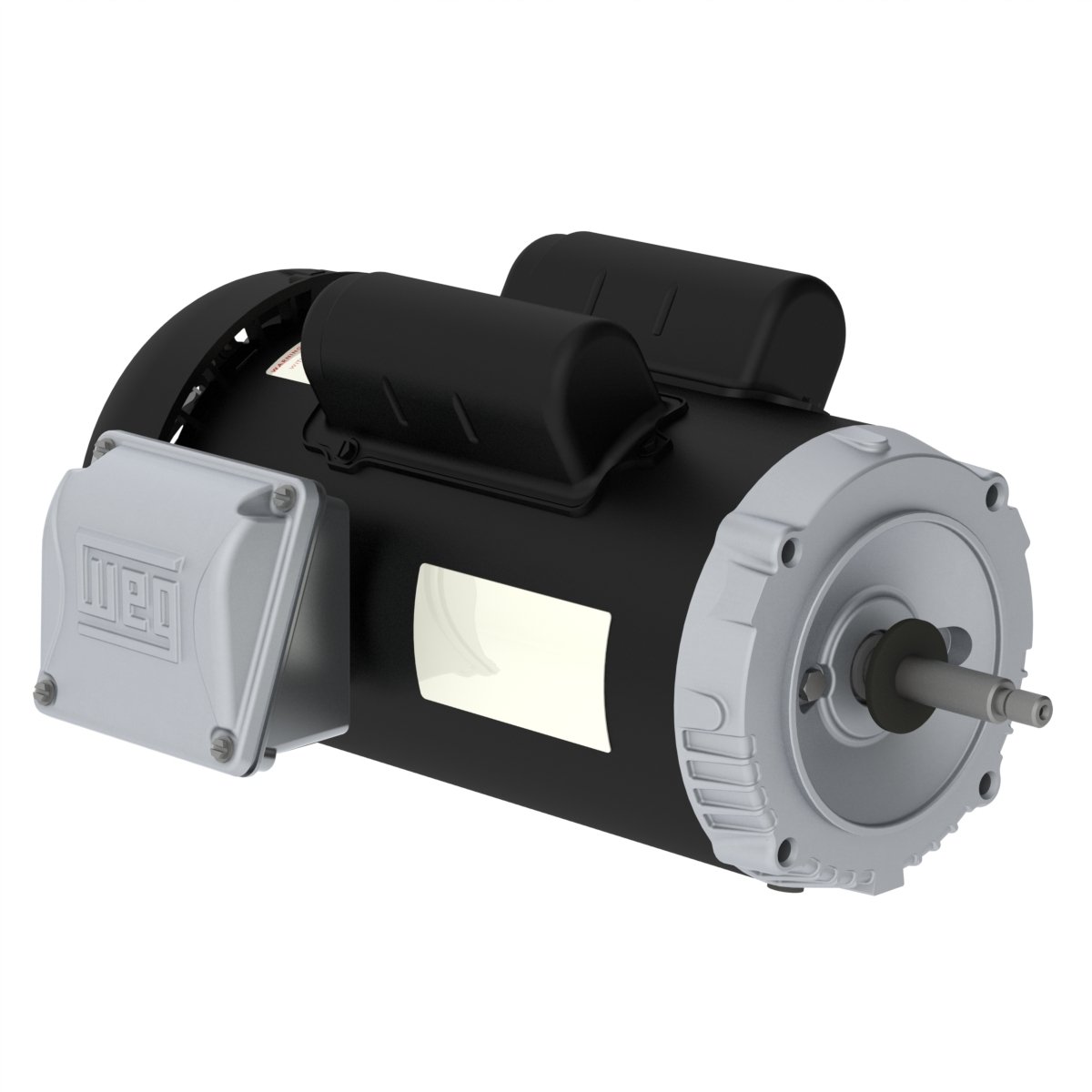

00236ES1BJPR56J-S WEG 2HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236ES1BJPR56J-S

Selected accessories will also be added to cart

$373.50 / Each

Quantity:

IC411 - TEFC, IP55, 56J Frame, 115/208-230VAC Single Phase 60Hz, 14795708, J-Type, Footless, Rolled Steel, Standard Efficiency

Details
Purchase Components

Electric Motors

Frame	56J
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3495 rpm
Slip	2.92 %
Rated voltage	115/208-230 V
Rated current	17.5/9.62-8.73 A
L. R. Amperes	136/75.0-68.1 A
LRC	7.8x(Code J)
No load current	5.00/2.16-2.50 A
Rated torque	2.96 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.0707 sq.ft.lb
Design	L
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	CCW
Noise level²	68.0 dB(A)
Approx. weight³	37.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
70.0	75.0	77.0

Power factor

50%	75%	100%
0.94	0.97	0.97

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	AISI 304 Stainless Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Without Key
Drip Cover	Without
Resilient Base	Without
