/Products/Electric Motors/Single Phase/WEG/Rolled Steel, TEFC/C-Face, Foot Mount/00236ES1B56C-S WEG 2HP Electric Motor, 3600RPM

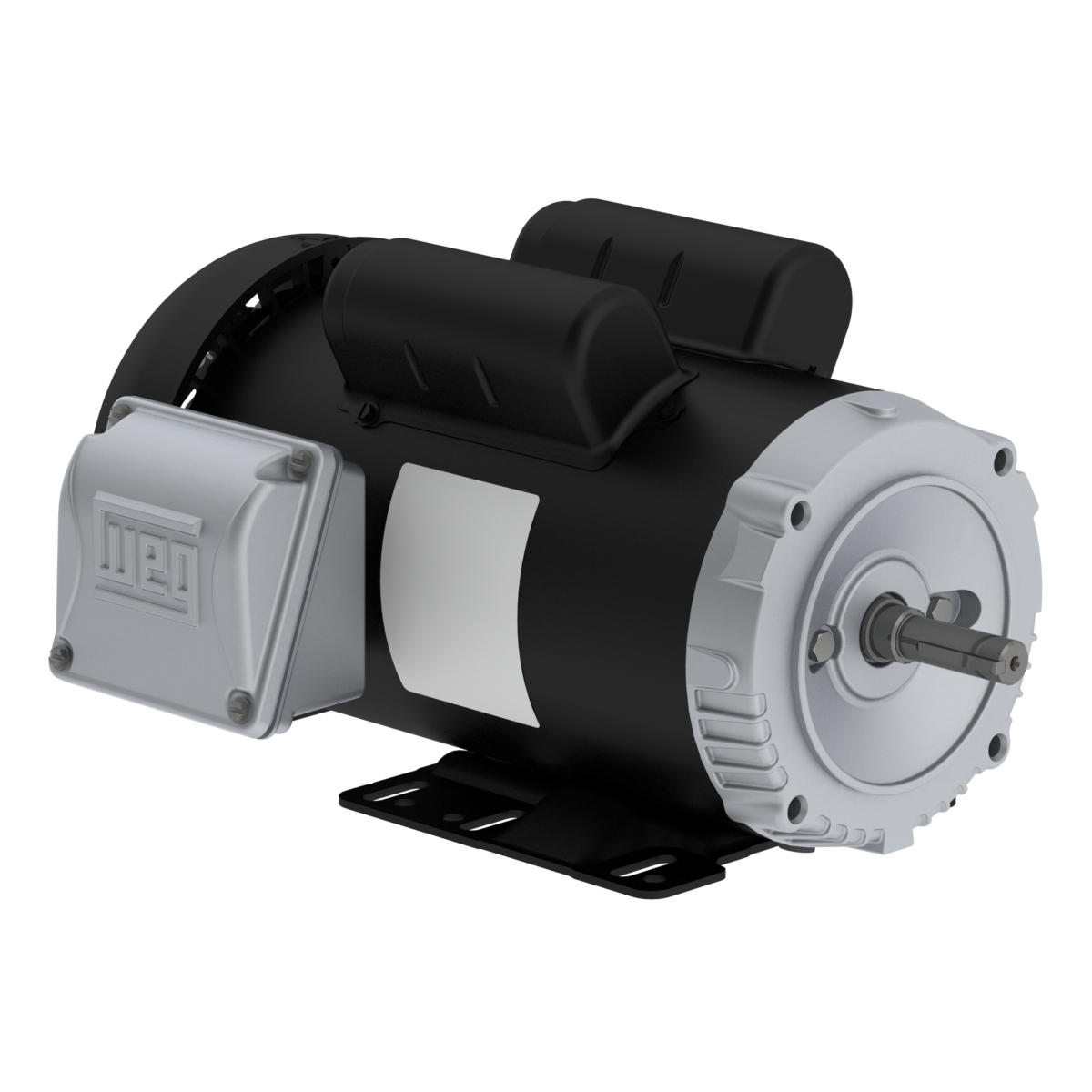

00236ES1B56C-S WEG 2HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00236ES1B56C-S

00236ES1B56C-S WEG 2HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236ES1B56C-S

Selected accessories will also be added to cart
$441.75 / Each
Quantity:
IC411 - TEFC, IP55, 56HC Frame, 115/208-230V Single Phase 60Hz, 13312958, C-Face, Foot Mount, 5/8" Keyed Shaft

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Electric Motors

Frame56HC
Output2 HP (1.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3495 rpm
Slip2.92 %
Rated voltage115/208-230 V
Rated current17.5/9.62-8.73 A
L. R. Amperes136/75.0-68.1 A
LRC7.8x(Code J)
No load current5.00/2.16-2.50 A
Rated torque2.96 ft.lb
Locked rotor torque220 %
Breakdown torque250 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0707 sq.ft.lb
DesignL
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Approx. weight³41.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
70.0  75.0  77.0

Power factor

50%75%100%
0.94  0.97  0.97
