00236AS1RAF143TZ-S WEG 2HP Aeration Fan Electric Motor, 3600RPM

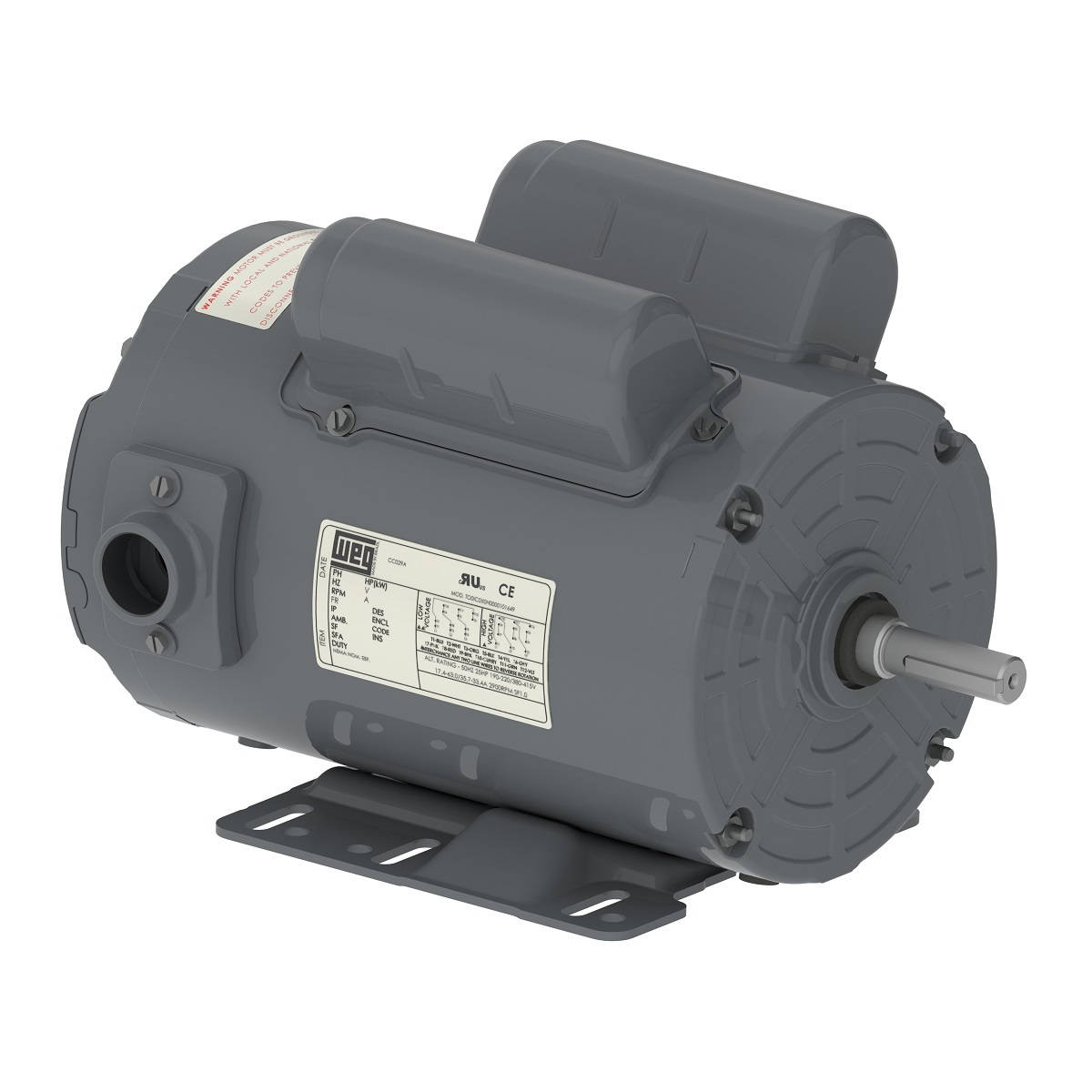

Enlarge Photo

Product ID: 00236AS1RAF143TZ-S

00236AS1RAF143TZ-S WEG 2HP Aeration Fan Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236AS1RAF143TZ-S

Selected accessories will also be added to cart
$587.25 / Each
Quantity:
RS Farm Duty, 143TZ/145TZ Frame, 115/208-230VAC 60Hz Single Phase, IC410-TEAO, 13256036, Foot Mounted, Rolled Steel

Electric Motors

Frame 143/5T
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3495 rpm
Slip 2.92 %
Rated voltage 115/208-230 V
Rated current 17.4/9.62-8.70 A
L. R. Amperes 136/75.0-67.9 A
LRC 7.8x(Code J)
No load current 5.00/0.000-2.50 A
Rated torque 2.96 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 42.9 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
70.0  75.0  77.0

Power factor

50% 75% 100%
0.94  0.97  0.97

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6205 ZZ   6202 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
43 lb  86 lb
