/Products/Electric Motors/3 Phase/WEG/Farm Duty/Aeration Fan/00236AP3EAF143TZ-S WEG 2HP Aeration Fan Electric Motor, 3600RPM

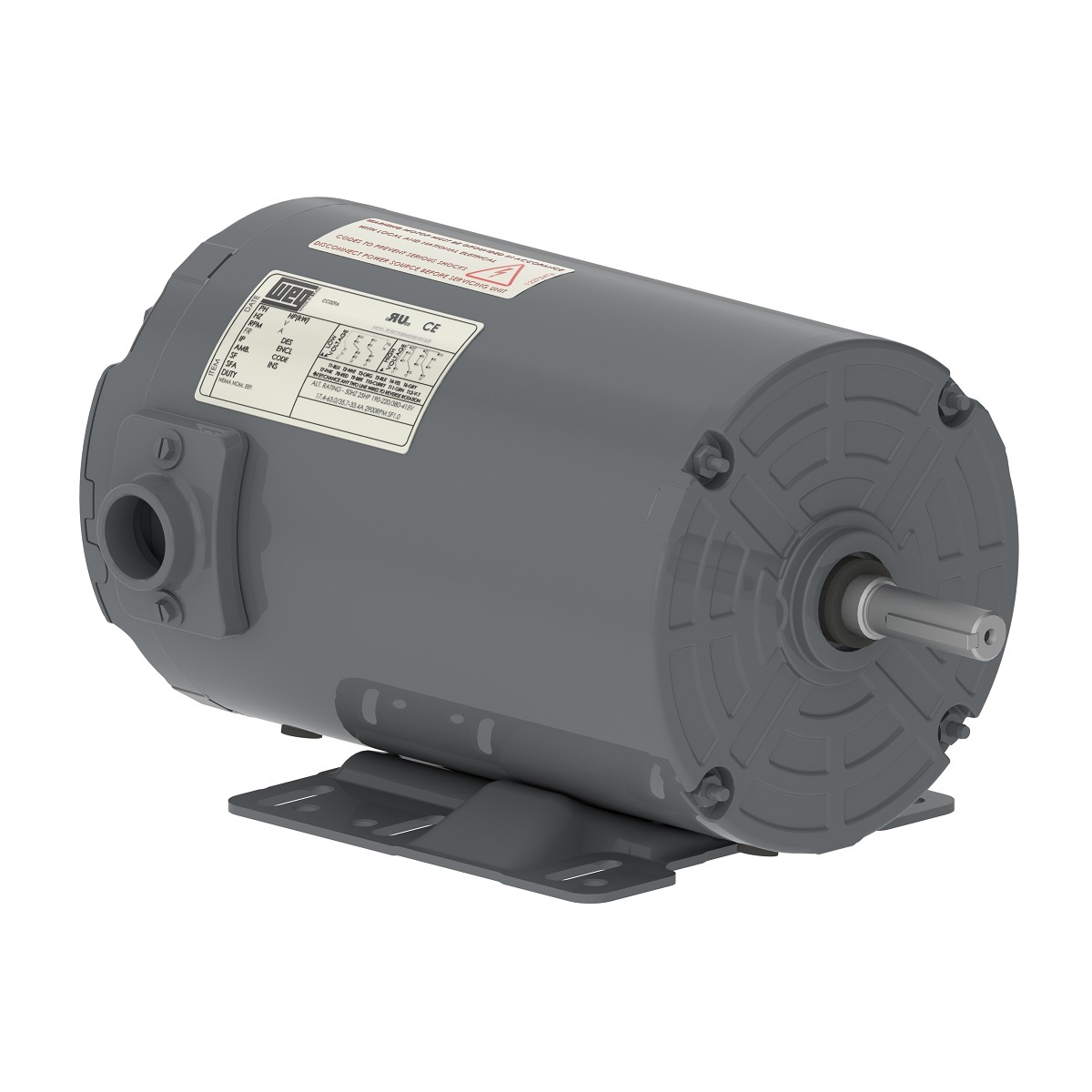

00236AP3EAF143TZ-S WEG 2HP Aeration Fan Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00236AP3EAF143TZ-S

00236AP3EAF143TZ-S WEG 2HP Aeration Fan Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236AP3EAF143TZ-S

Selected accessories will also be added to cart
$433.50 / Each
Quantity:
Farm Duty, 143TZ/145TZ Frame, 230/460VAC 60Hz 3-Phase, IC410-TEAO, 13248528, Foot Mounted, Rolled Steel, 7/8" Shaft

Electric Motors

Frame 143/5TZ
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 208-230/460 V
Rated current 5.64-5.10/2.55 A
L. R. Amperes 47.9-43.3/21.7 A
LRC 8.5x(Code K)
No load current 0.000-2.25/1.12 A
Rated torque 2.96 ft.lb
Locked rotor torque 280 %
Breakdown torque 350 %
Locked rotor time 25s (cold) 14s (hot)
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 35.3 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.5  84.0  84.0

Power factor

50% 75% 100%
0.71  0.82  0.88

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6205 ZZ   6202 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
72 lb  108 lb
