/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/C-Face, Footless/00218OT3H56CFL-S WEG 2HP General Purpose Electric Motor, 1800RPM

Product ID: 00218OT3H56CFL-S

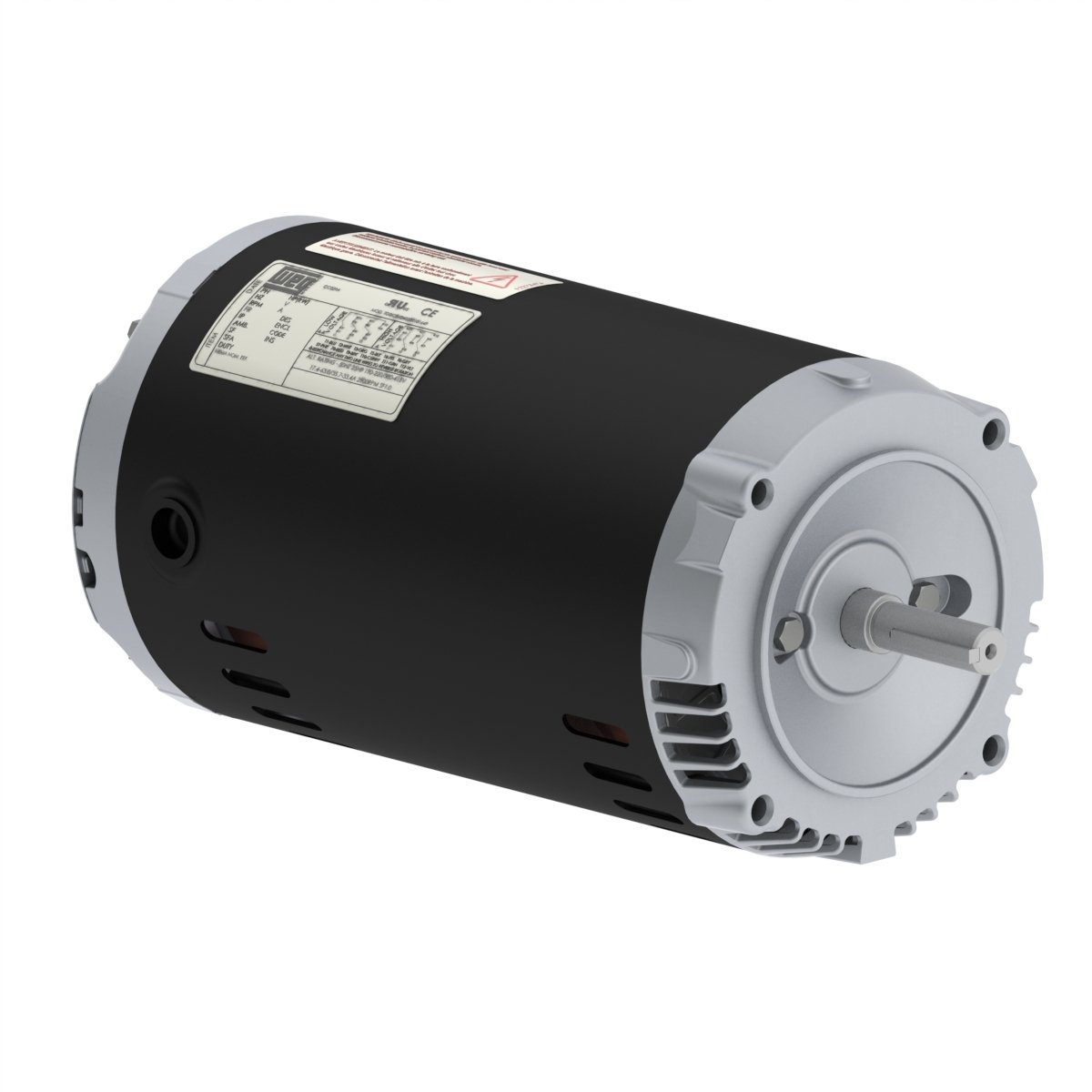

00218OT3H56CFL-S WEG 2HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218OT3H56CFL-S

Selected accessories will also be added to cart

$299.25 / Each

Quantity:

IC01 - ODP, 56C Frame, 575VAC 3-Phase 60Hz, 12809700, C-Face, Footless, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	56C
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1740 rpm
Slip	3.33 %
Rated voltage	575 V
Rated current	2.15 A
L. R. Amperes	16.6 A
LRC	7.7x(Code K)
No load current	1.10 A
Rated torque	5.96 ft.lb
Locked rotor torque	260 %
Breakdown torque	320 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.1168 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	36.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	86.5	86.5

Power factor

50%	75%	100%
0.61	0.74	0.81

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
