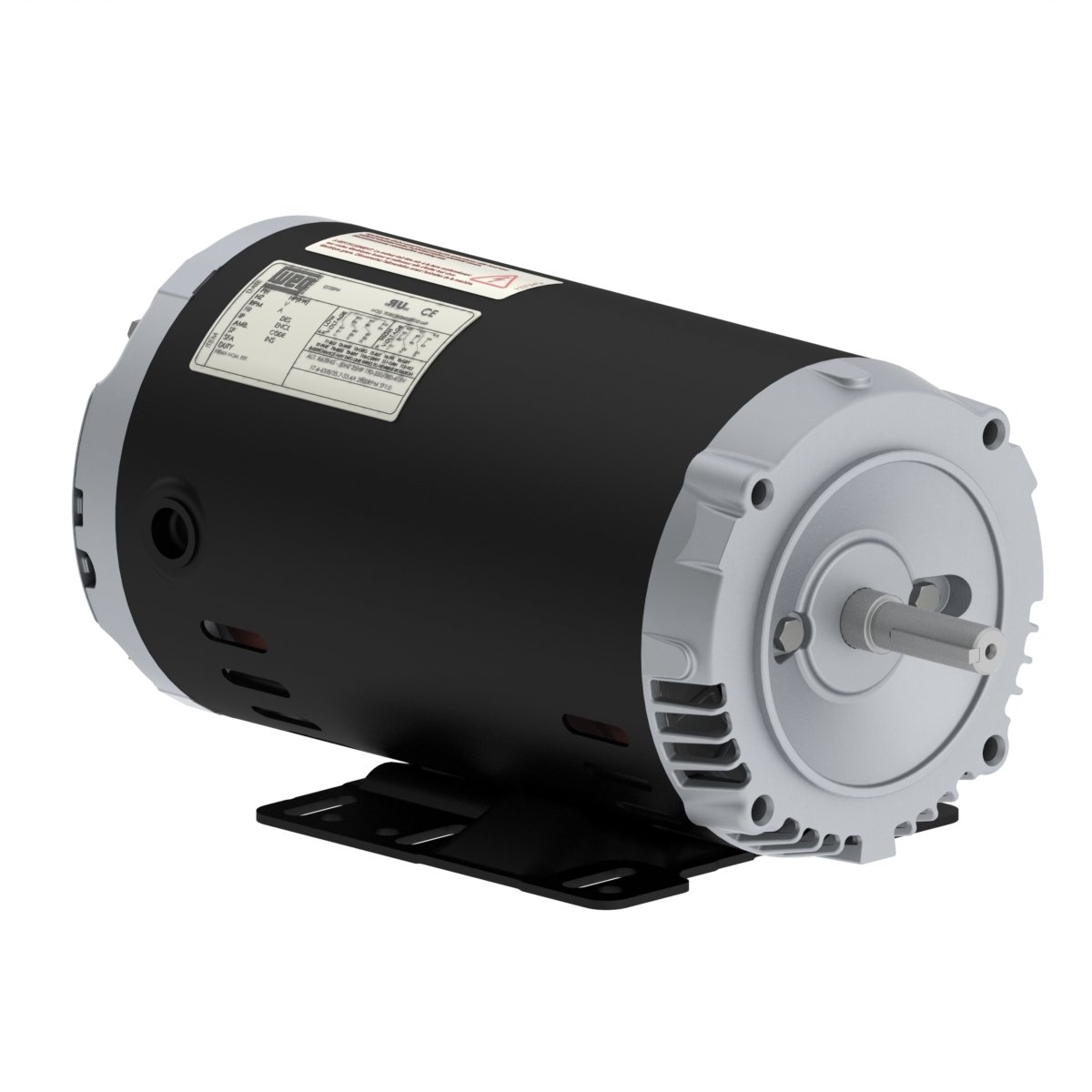

00218OT3E56C-S WEG 2HP General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00218OT3E56C-S

00218OT3E56C-S WEG 2HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218OT3E56C-S

Selected accessories will also be added to cart
$299.25 / Each
Quantity:
IC01 - ODP, 56HC Frame, 208-230/460VAC 3-Phase 50/60Hz, 12809699, C-Face, Foot Mount, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56HC
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 208-230/460 V
Rated current 5.95-5.38/2.69 A
L. R. Amperes 45.8-41.4/20.7 A
LRC 7.7x(Code K)
No load current 2.37-2.75/1.38 A
Rated torque 5.96 ft.lb
Locked rotor torque 260 %
Breakdown torque 320 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.1168 sq.ft.lb
Design A
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 38.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  86.5  86.5

Power factor

50% 75% 100%
0.61  0.74  0.81
Frame 56HC
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1410 rpm
Slip 6.00 %
Rated voltage 190/380 V
Rated current 6.52/3.26 A
L. R. Amperes 36.5/18.3 A
LRC 5.6x(Code G)
No load current 2.70/1.35 A
Rated torque 7.35 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.1168 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 38.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.9  85.0  82.2

Power factor

50% 75% 100%
0.69  0.80  0.85
Frame 56HC
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1430 rpm
Slip 4.67 %
Rated voltage 220/415 V
Rated current 5.79/3.07 A
L. R. Amperes 38.8/20.6 A
LRC 6.7x(Code J)
No load current 3.08/1.63 A
Rated torque 7.25 ft.lb
Locked rotor torque 250 %
Breakdown torque 280 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.1168 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 38.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.6  85.2  83.8

Power factor

50% 75% 100%
0.61  0.74  0.81

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
