/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/00218ET3EAL100L-W22 WEG 3HP/2.2kW IEC TRU-Metric Electric Motor, 1800RPM

Product ID: 00218ET3EAL100L-W22

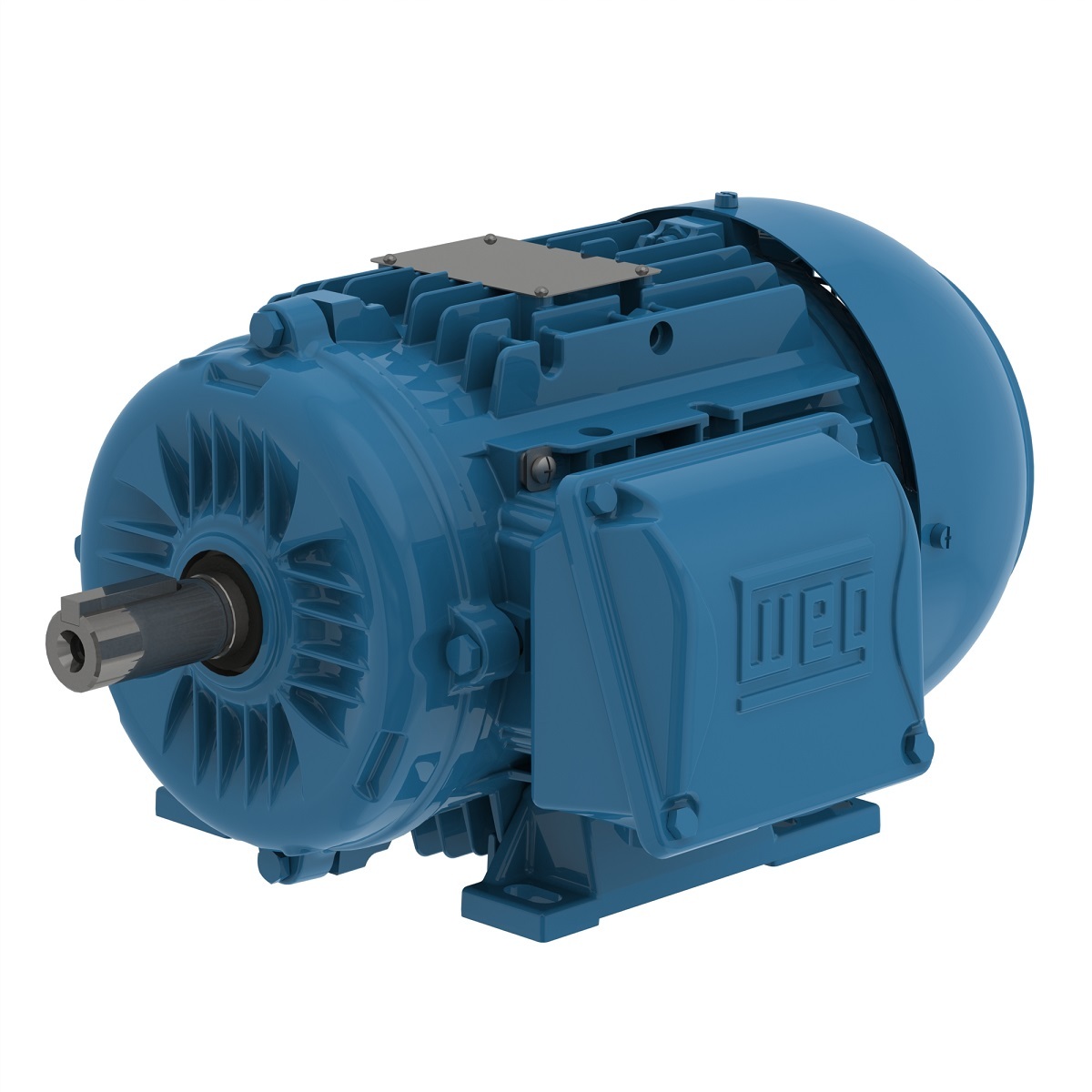

00218ET3EAL100L-W22 WEG 3HP/2.2kW IEC TRU-Metric Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218ET3EAL100L-W22

Selected accessories will also be added to cart

$472.50 / Each

Quantity:

IC-411 - TEFC, 100L Frame, 230/460/380-415VAC 3-Phase 50/60Hz, 13983073, Foot Mounted, Multimounting, 28mm Keyed Shaft, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	100L
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1430 rpm
Slip	4.67 %
Rated voltage	380 V
Rated current	4.88 A
L. R. Amperes	36.1 A
LRC	7.4
No load current	2.20 A
Rated torque	10.9 ft.lb
Locked rotor torque	280 %
Breakdown torque	300 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.2136 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	63.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.2	87.1	86.7

Power factor

50%	75%	100%
0.57	0.70	0.79

Frame	100L
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1435 rpm
Slip	4.33 %
Rated voltage	400 V
Rated current	4.87 A
L. R. Amperes	39.4 A
LRC	8.1
No load current	2.40 A
Rated torque	10.8 ft.lb
Locked rotor torque	350 %
Breakdown torque	340 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.2136 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	63.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	87.0	87.0

Power factor

50%	75%	100%
0.53	0.66	0.75

Frame	100L
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1445 rpm
Slip	3.67 %
Rated voltage	415 V
Rated current	4.87 A
L. R. Amperes	40.9 A
LRC	8.4
No load current	2.50 A
Rated torque	10.8 ft.lb
Locked rotor torque	380 %
Breakdown torque	370 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.2136 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	63.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.7	86.8	87.2

Power factor

50%	75%	100%
0.49	0.63	0.72

Frame	100L
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1750 rpm
Slip	2.78 %
Rated voltage	230/460 V
Rated current	8.22/4.11 A
L. R. Amperes	74.0/37.0 A
LRC	9.0
No load current	4.40/2.20 A
Rated torque	8.88 ft.lb
Locked rotor torque	380 %
Breakdown torque	370 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.2136 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	54.0 dB(A)
Approx. weight³	63.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.6	88.2	89.5

Power factor

50%	75%	100%
0.54	0.67	0.75

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM25x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
