/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/C-Face, Foot Mount/00218ET3E56C-S WEG 2HP General Purpose Electric Motor, 1800RPM

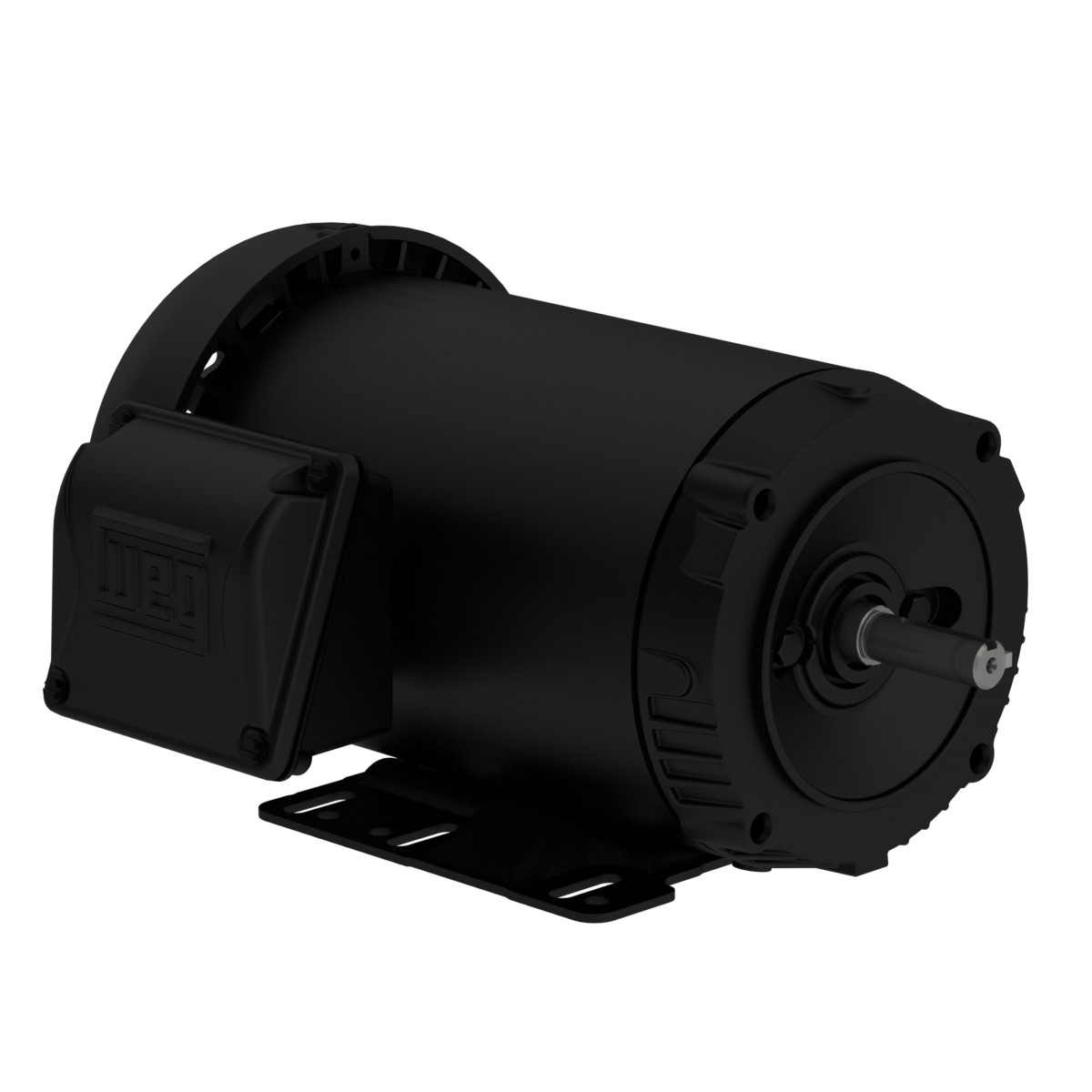

00218ET3E56C-S WEG 2HP General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00218ET3E56C-S

00218ET3E56C-S WEG 2HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218ET3E56C-S

Selected accessories will also be added to cart
$379.50 / Each
Quantity:
IC411 - TEFC, IP55, 56HC Frame, 208-230/460VAC 3-Phase 50/60Hz, 13484361, C-Face, Foot Mount, Rolled Steel, NEMA Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56HC
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1745 rpm
Slip 3.06 %
Rated voltage 208-230/460 V
Rated current 6.02-5.44/2.72 A
L. R. Amperes 49.3-44.6/22.3 A
LRC 8.2x(Code K)
No load current 2.41-2.80/1.40 A
Rated torque 5.94 ft.lb
Locked rotor torque 270 %
Breakdown torque 300 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.1296 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 42.6 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  87.5  86.5

Power factor

50% 75% 100%
0.60  0.73  0.80
Frame 56HC
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1415 rpm
Slip 5.67 %
Rated voltage 190/380 V
Rated current 6.50/3.25 A
L. R. Amperes 39.0/19.5 A
LRC 6.0x(Code H)
No load current 2.75/1.37 A
Rated torque 7.32 ft.lb
Locked rotor torque 210 %
Breakdown torque 240 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.1296 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 42.6 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.4  84.9  82.6

Power factor

50% 75% 100%
0.68  0.80  0.85
Frame 56HC
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1435 rpm
Slip 4.33 %
Rated voltage 220/415 V
Rated current 5.79/3.07 A
L. R. Amperes 41.1/21.8 A
LRC 7.1x(Code J)
No load current 3.09/1.64 A
Rated torque 7.22 ft.lb
Locked rotor torque 270 %
Breakdown torque 300 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.1296 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 42.6 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.2  85.1  84.0

Power factor

50% 75% 100%
0.60  0.73  0.81

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
