Product ID: 00218ES1RFD145T-S

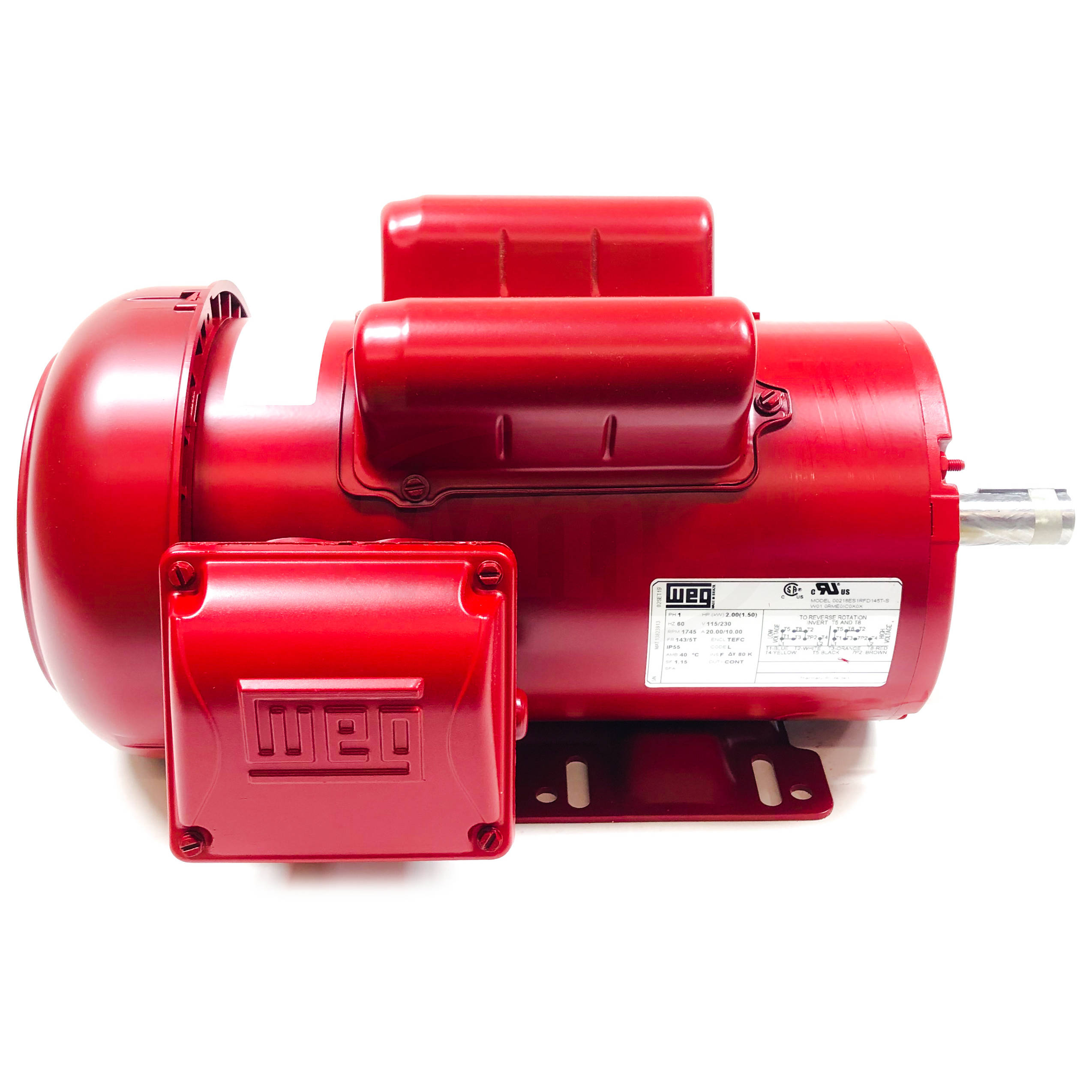

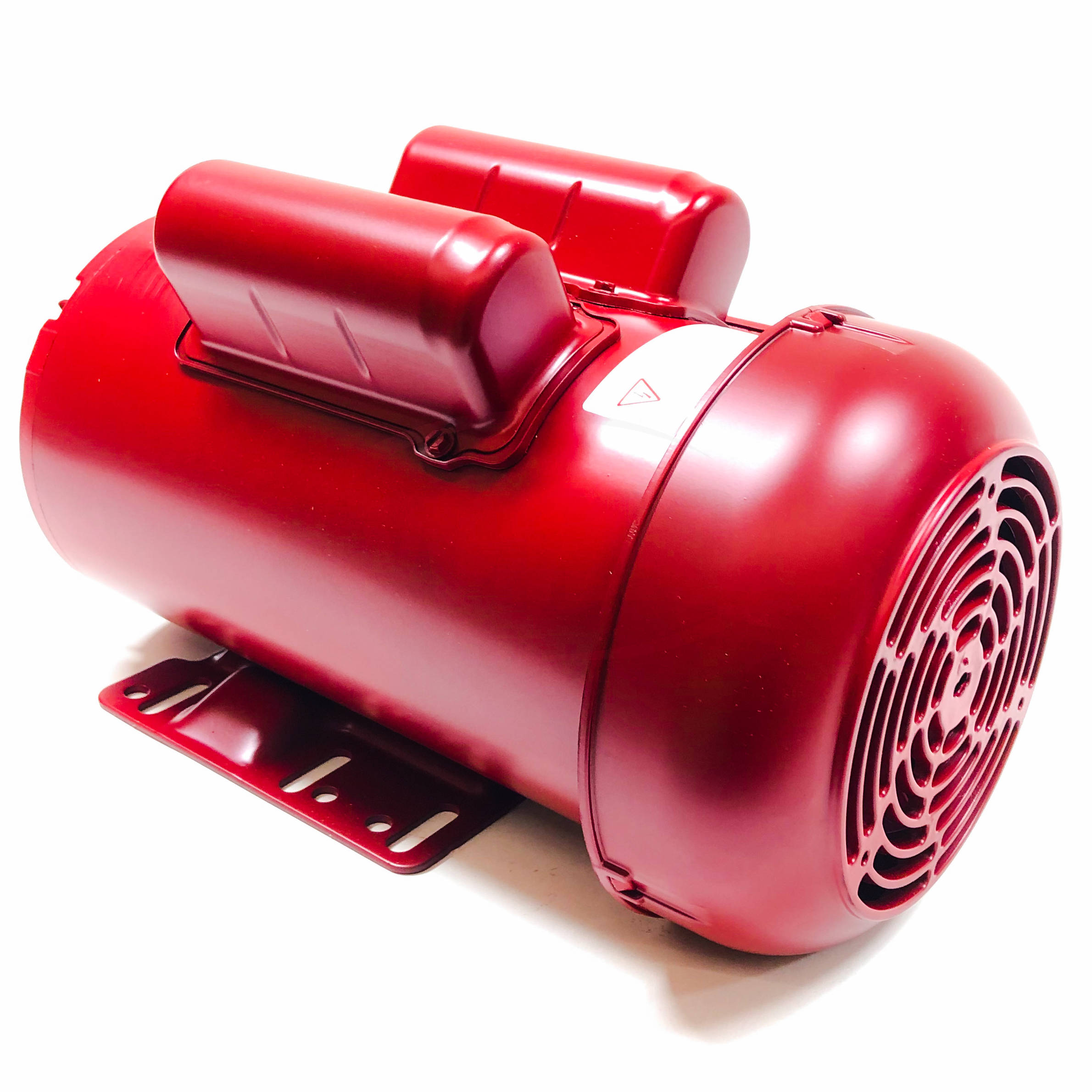

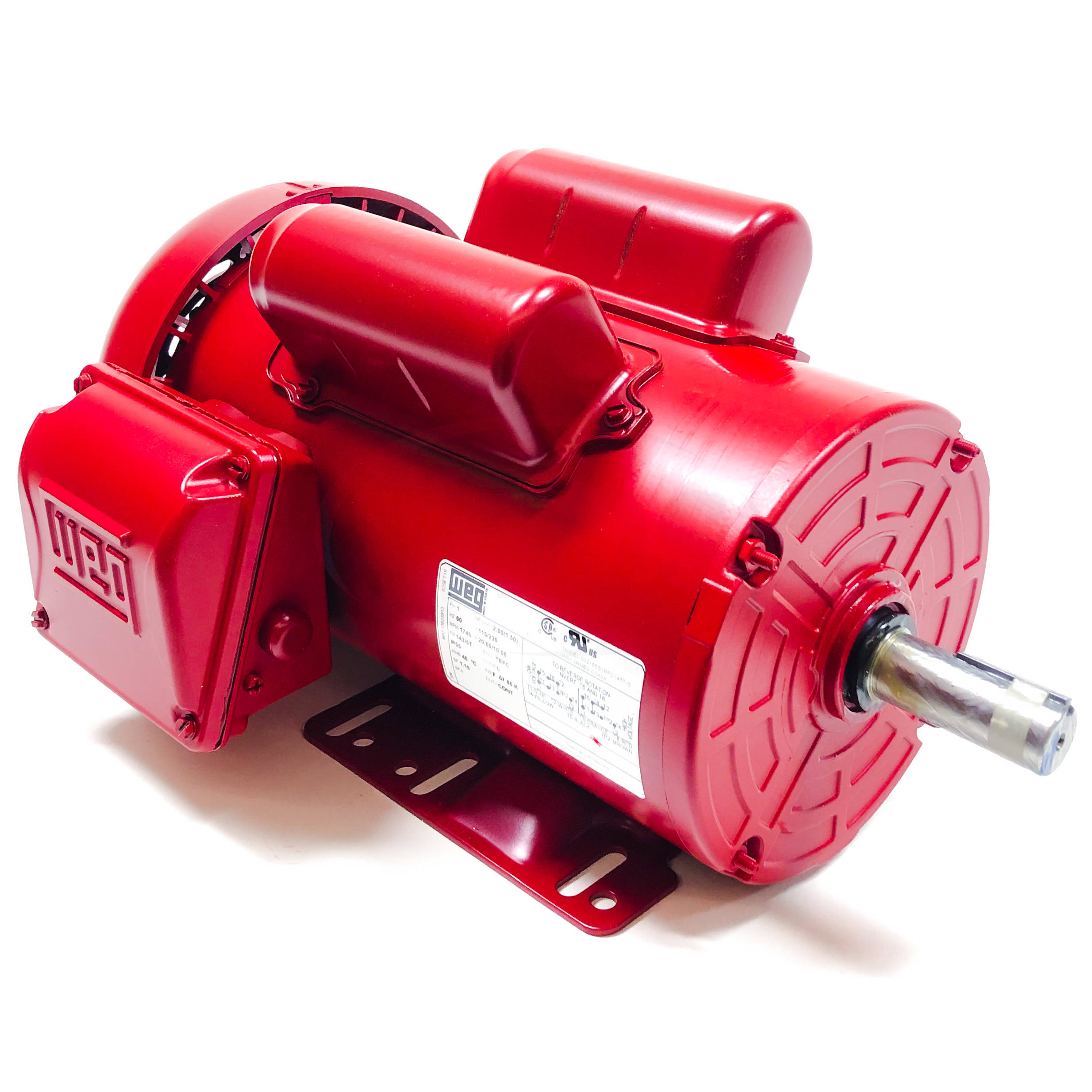

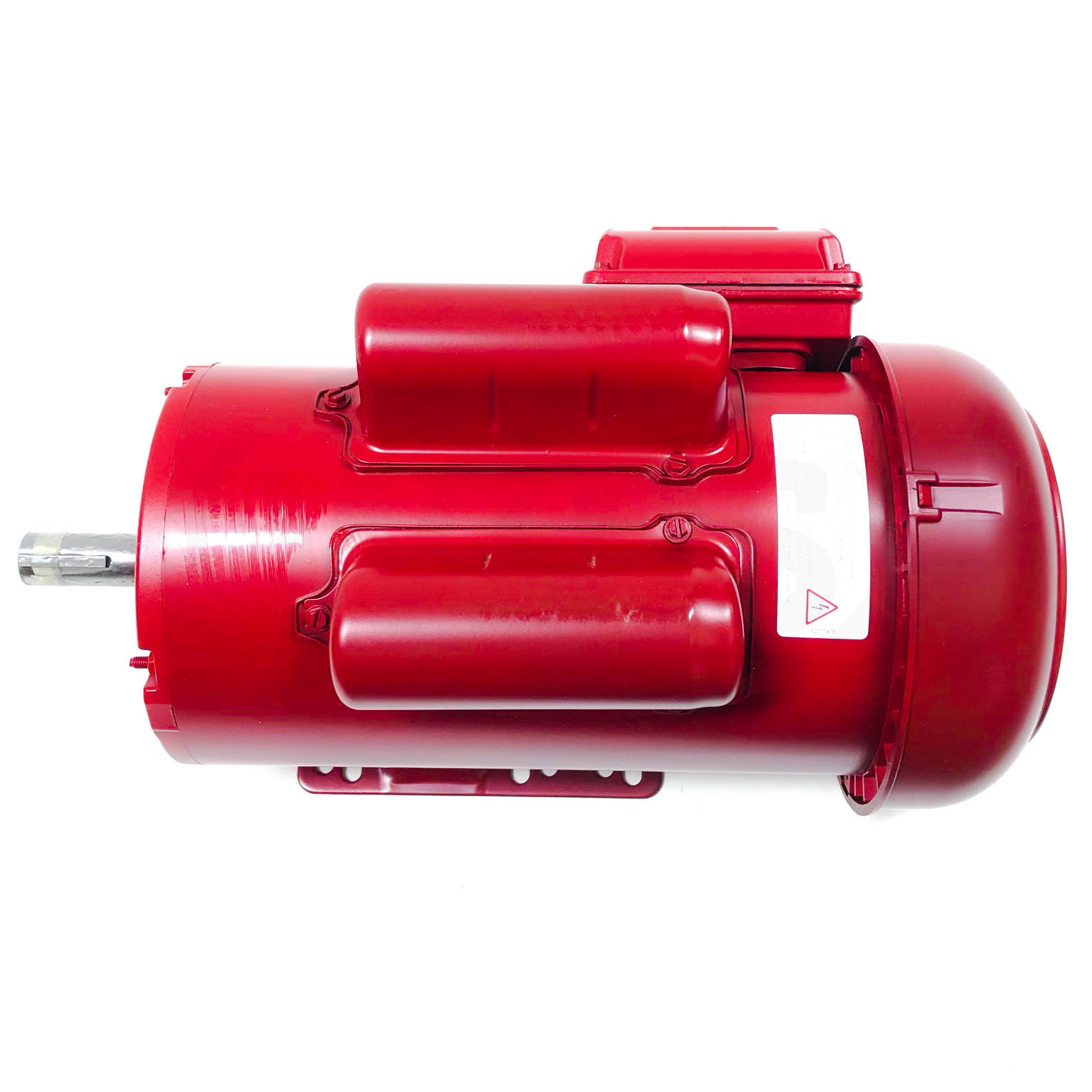

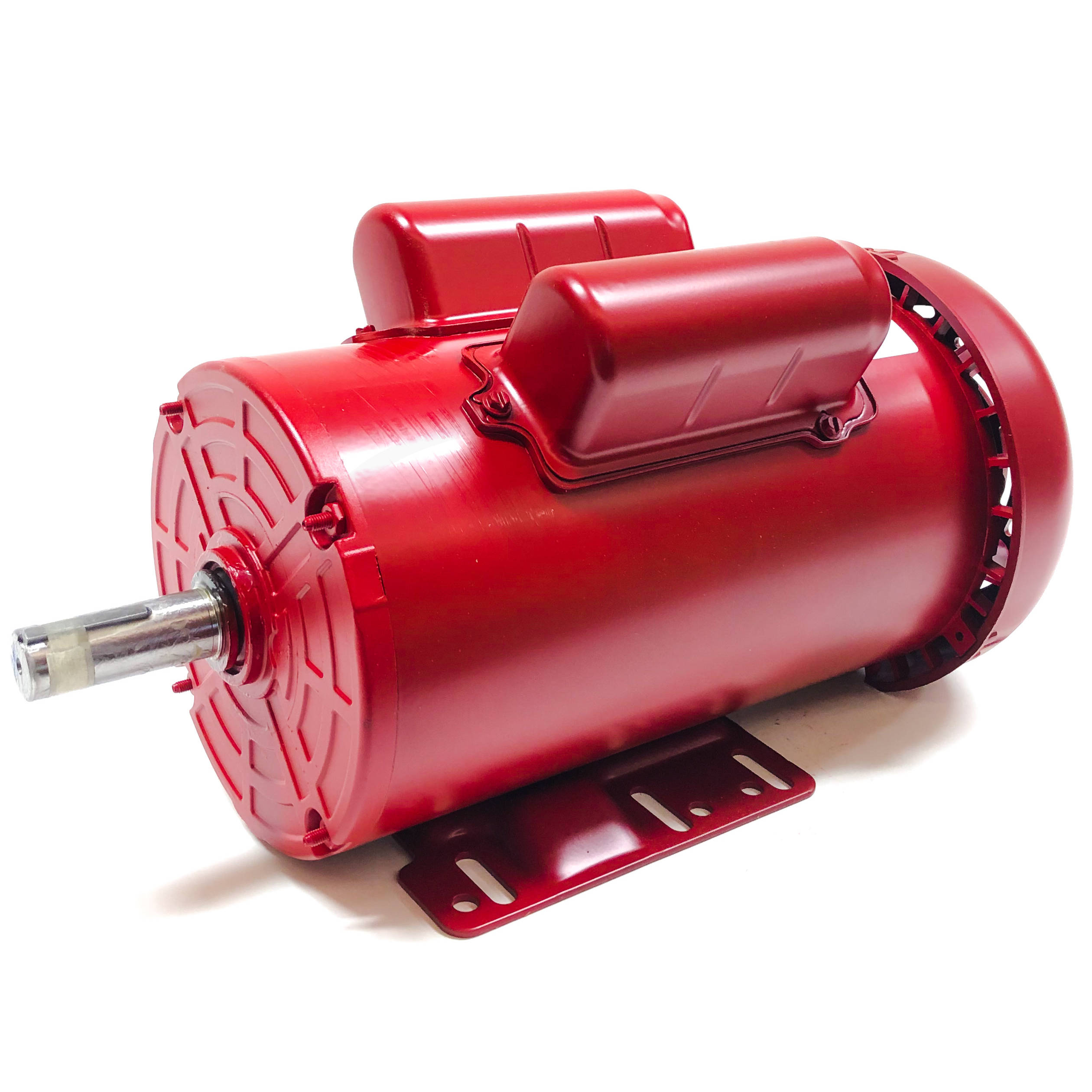

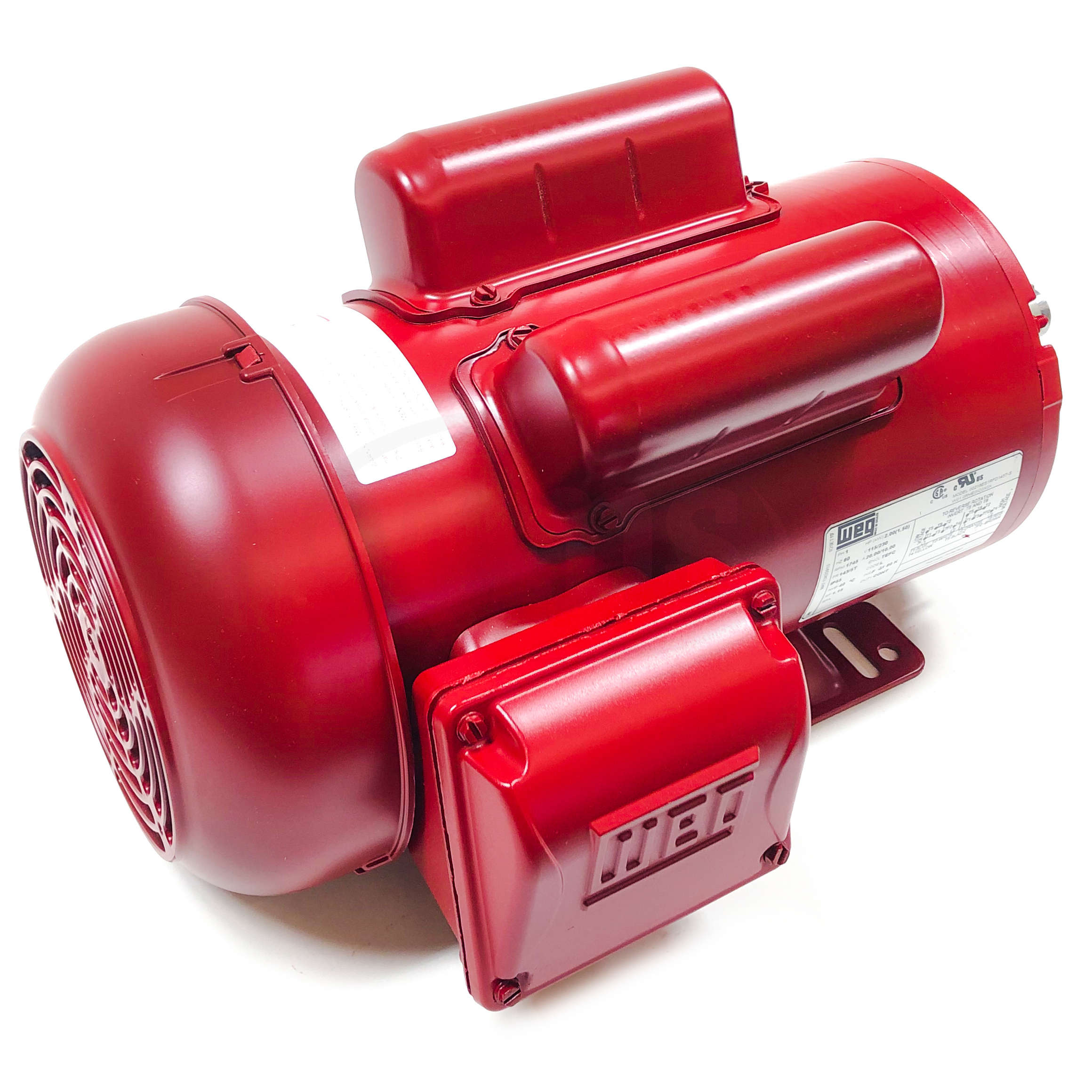

00218ES1RFD145T-S WEG 2HP Farm Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218ES1RFD145T-S

Selected accessories will also be added to cart
$433.50 / Each
Quantity:
IC411-TEFC Farm Duty, 143T-145T Frame, 115/230V Single Phase 60Hz, 13823913, Foot Mounted, Rolled Steel, 7/8" Keyed Shaft

Electric Motors

Frame 143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1745 rpm
Slip 3.06 %
Rated voltage 115/230 V
Rated current 20.0/10.0 A
L. R. Amperes 160/80.0 A
LRC 8.0x(Code L)
No load current 12.2/6.10 A
Rated torque 5.94 ft.lb
Locked rotor torque 260 %
Breakdown torque 260 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.1614 sq.ft.lb
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
Approx. weight³ 52.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
70.0  76.0  78.5

Power factor

50% 75% 100%
0.66  0.76  0.82

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6205 2RS   6203 2RS
Sealing V'Ring  V'Ring
Lubrication interval
Lubricant amount
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
108 lb  160 lb
