/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/00212ET3EAL132S-W22 WEG 3HP/2.2kW IEC TRU-Metric Electric Motor, 1200RPM

Product ID: 00212ET3EAL132S-W22

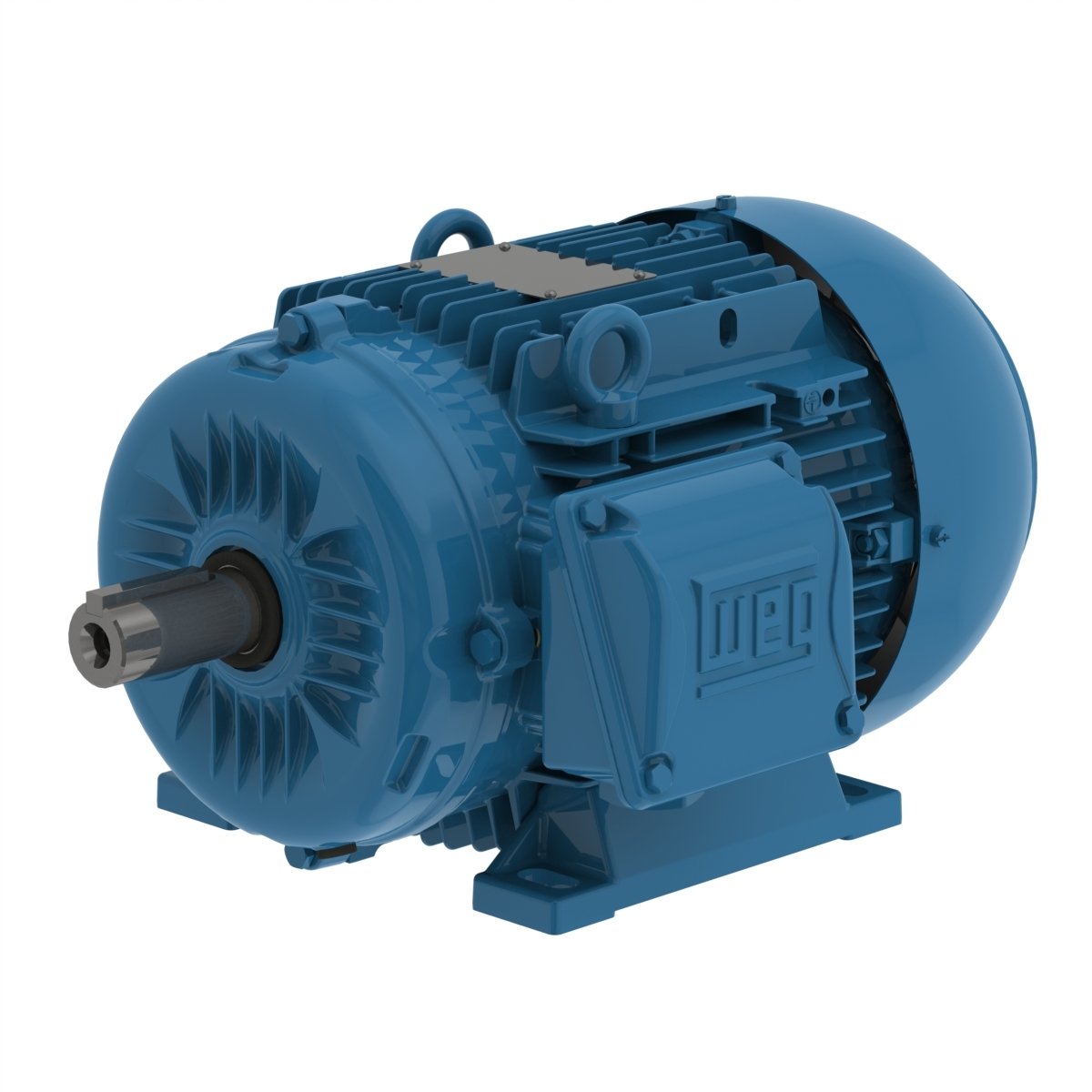

00212ET3EAL132S-W22 WEG 3HP/2.2kW IEC TRU-Metric Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00212ET3EAL132S-W22

Selected accessories will also be added to cart

$874.50 / Each

Quantity:

IC411-TEFC, IP55, 132S Frame, 230/460/190/380VAC 3-Phase 50/60Hz, 14428448, Foot Mount, Multimounting, Aluminum Frame, 38mm Keyed Shaft

Details
Purchase Components

190/380 V 50 Hz 6P
230/460 V 60 Hz 6P

Electric Motors

Frame	132S
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	965 rpm
Slip	3.50 %
Rated voltage	190/380 V
Rated current	10.4/5.19 A
L. R. Amperes	53.0/26.5 A
LRC	5.1
No load current	5.60/2.80 A
Rated torque	16.1 ft.lb
Locked rotor torque	150 %
Breakdown torque	240 %
Locked rotor time	54s (cold) 30s (hot)

Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	139 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	87.5	87.1

Power factor

50%	75%	100%
0.55	0.67	0.74

Frame	132S
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	230/460 V
Rated current	8.81/4.41 A
L. R. Amperes	53.7/26.9 A
LRC	6.1
No load current	5.60/2.80 A
Rated torque	13.2 ft.lb
Locked rotor torque	180 %
Breakdown torque	310 %
Locked rotor time	90s (cold) 50s (hot)

Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	55.0 dB(A)
Approx. weight³	139 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	87.5	89.5

Power factor

50%	75%	100%
0.49	0.62	0.70

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM32x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
