/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Foot Mount/00212ET3E184T-S WEG 2HP Electric Motor, 1200RPM

Product ID: 00212ET3E184T-S

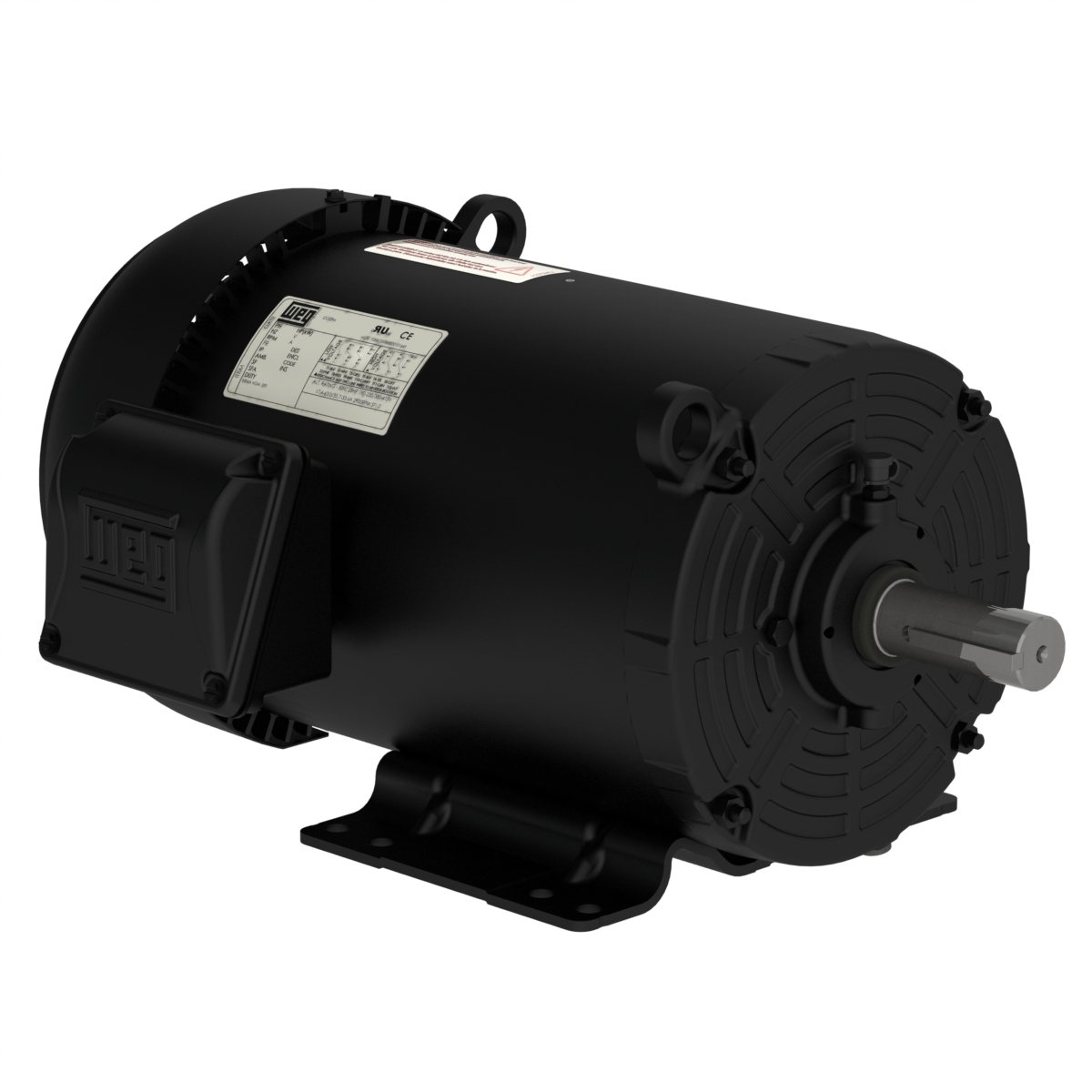

00212ET3E184T-S WEG 2HP Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00212ET3E184T-S

Selected accessories will also be added to cart
$534.75 / Each
Quantity:
IC411 - TEFC, 182T/184T Frame, 208-230/460VAC 3 Phase 50/60Hz, 12750583, Rolled Steel NEMA Premium Efficiency, Foot Mount, 1-1/8" Keyed Shaft

Electric Motors

Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 6.63-6.00/3.00 A
L. R. Amperes 49.8-45.0/22.5 A
LRC 7.5x(Code K)
No load current 3.23-3.74/1.87 A
Rated torque 8.86 ft.lb
Locked rotor torque 260 %
Breakdown torque 370 %
Locked rotor time 79s (cold) 44s (hot)
Moment of inertia (J) 0.3424 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 80.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  86.5  88.5

Power factor

50% 75% 100%
0.50  0.62  0.71
Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 955 rpm
Slip 4.50 %
Rated voltage 190/380 V
Rated current 7.00/3.50 A
L. R. Amperes 42.7/21.3 A
LRC 6.1x(Code H)
No load current 3.69/1.85 A
Rated torque 10.8 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.3424 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 80.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.3  86.4  85.7

Power factor

50% 75% 100%
0.57  0.69  0.76
Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 220/415 V
Rated current 6.43/3.41 A
L. R. Amperes 45.7/24.2 A
LRC 7.1x(Code K)
No load current 4.05/2.15 A
Rated torque 10.7 ft.lb
Locked rotor torque 280 %
Breakdown torque 350 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.3424 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 80.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
83.7  86.0  86.2

Power factor

50% 75% 100%
0.50  0.63  0.71

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C3)


Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

 Loading...

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6206 ZZ   6205 ZZ
Sealing V'Ring  V'Ring
Lubrication interval
Lubricant amount
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
203 lb  283 lb
