/Products/Electric Motors/3 Phase/WEG/IEEE 841/Foot Mount, C-Face/00209ST3QIE213TC-W22 WEG 2HP Severe Duty Electric Motor, 900RPM

Product ID: 00209ST3QIE213TC-W22

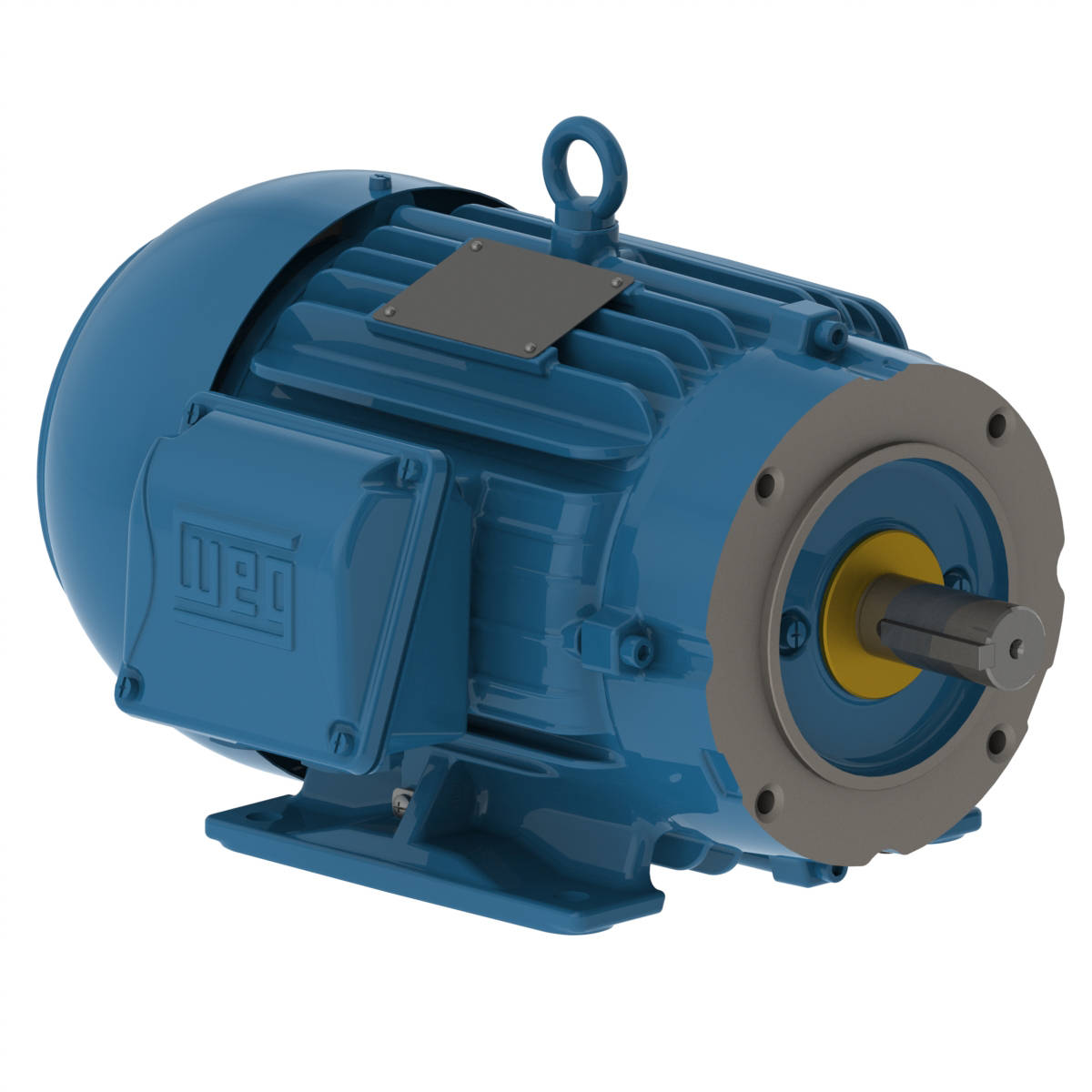

00209ST3QIE213TC-W22 WEG 2HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00209ST3QIE213TC-W22

Selected accessories will also be added to cart

$2,085.75 / Each

Quantity:

IC411 - TEFC, IP55 213TC/215TC Frame, 460VAC 60Hz 3 Phase, 12376315, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-3/8" Keyed Shaft, IEEE 841

Details
Purchase Components

Electric Motors

Frame	213/5TC
Output	2 HP (1.5 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	875 rpm
Slip	2.78 %
Rated voltage	460 V
Rated current	3.39 A
L. R. Amperes	25.7 A
LRC	7.6x(Code M)
No load current	2.30 A
Rated torque	12.0 ft.lb
Locked rotor torque	240 %
Breakdown torque	290 %
Locked rotor time	70s (cold) 39s (hot)

Moment of inertia (J)	1.79 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	175 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	84.0	85.5

Power factor

50%	75%	100%
0.45	0.55	0.65

Frame	213/5TC
Output	2 HP (1.5 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	715 rpm
Slip	4.67 %
Rated voltage	380 V
Rated current	3.91 A
L. R. Amperes	29.7 A
LRC	7.6x(Code L)
No load current	2.30 A
Rated torque	14.7 ft.lb
Locked rotor torque	190 %
Breakdown torque	210 %
Locked rotor time	70s (cold) 39s (hot)

Moment of inertia (J)	1.79 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	48.0 dB(A)
Approx. weight³	175 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.5	82.0	82.0

Power factor

50%	75%	100%
0.52	0.62	0.71

Frame	213/5TC
Output	2 HP (1.5 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	720 rpm
Slip	4.00 %
Rated voltage	400 V
Rated current	3.80 A
L. R. Amperes	28.9 A
LRC	7.6x(Code M)
No load current	2.42 A
Rated torque	14.6 ft.lb
Locked rotor torque	229 %
Breakdown torque	250 %
Locked rotor time	70s (cold) 39s (hot)

Moment of inertia (J)	1.79 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	48.0 dB(A)
Approx. weight³	175 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.5	82.5	82.5

Power factor

50%	75%	100%
0.49	0.59	0.69

Frame	213/5TC
Output	2 HP (1.5 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	720 rpm
Slip	4.00 %
Rated voltage	415 V
Rated current	3.78 A
L. R. Amperes	28.7 A
LRC	7.6x(Code M)
No load current	2.54 A
Rated torque	14.6 ft.lb
Locked rotor torque	270 %
Breakdown torque	280 %
Locked rotor time	70s (cold) 39s (hot)

Moment of inertia (J)	1.79 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	48.0 dB(A)
Approx. weight³	175 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.5	82.5	82.5

Power factor

50%	75%	100%
0.46	0.56	0.67

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 1"
Terminal Block	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
