/Products/Electric Motors/3 Phase/WEG/IEEE 841/Foot Mount, C-Face/00159ST3QIE184TC-W22 WEG 1.5HP Severe Duty Electric Motor, 900RPM

Product ID: 00159ST3QIE184TC-W22

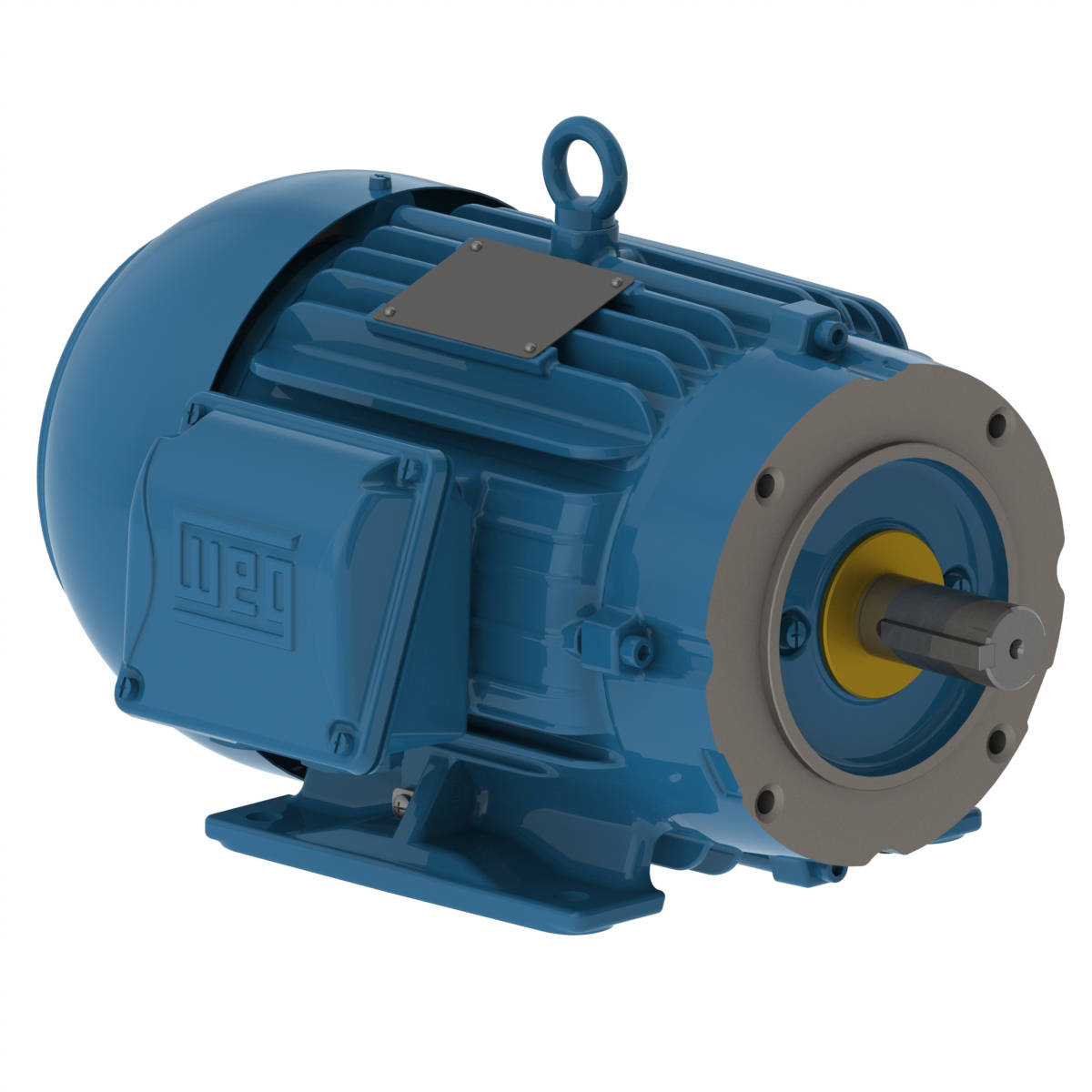

00159ST3QIE184TC-W22 WEG 1.5HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00159ST3QIE184TC-W22

Selected accessories will also be added to cart

$1,560.75 / Each

Quantity:

IC411 - TEFC, IP55, 182TC/184TC Frame, 460VAC 60Hz 3 Phase, 12575059, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, IEEE 841, 1-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	182/4TC
Output	1.5 HP (1.1 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	865 rpm
Slip	3.89 %
Rated voltage	460 V
Rated current	2.70 A
L. R. Amperes	15.9 A
LRC	5.9x(Code K)
No load current	2.00 A
Rated torque	9.11 ft.lb
Locked rotor torque	290 %
Breakdown torque	340 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.5766 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	111 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.0	82.5	82.5

Power factor

50%	75%	100%
0.43	0.54	0.62

Frame	182/4TC
Output	1.5 HP (1.1 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	705 rpm
Slip	6.00 %
Rated voltage	380 V
Rated current	3.04 A
L. R. Amperes	15.2 A
LRC	5.0x(Code H)
No load current	1.90 A
Rated torque	11.2 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.5766 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	46.0 dB(A)
Approx. weight³	111 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.0	80.0	78.5

Power factor

50%	75%	100%
0.51	0.62	0.70

Frame	182/4TC
Output	1.5 HP (1.1 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	710 rpm
Slip	5.33 %
Rated voltage	400 V
Rated current	3.01 A
L. R. Amperes	16.6 A
LRC	5.5x(Code J)
No load current	2.00 A
Rated torque	11.1 ft.lb
Locked rotor torque	260 %
Breakdown torque	290 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.5766 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	46.0 dB(A)
Approx. weight³	111 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
78.5	80.0	80.0

Power factor

50%	75%	100%
0.47	0.58	0.66

Frame	182/4TC
Output	1.5 HP (1.1 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	715 rpm
Slip	4.67 %
Rated voltage	415 V
Rated current	2.99 A
L. R. Amperes	17.9 A
LRC	6.0x(Code K)
No load current	2.10 A
Rated torque	11.0 ft.lb
Locked rotor torque	290 %
Breakdown torque	320 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.5766 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	46.0 dB(A)
Approx. weight³	111 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.0	80.0	80.0

Power factor

50%	75%	100%
0.44	0.55	0.64

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
