/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Foot Mount/00158OT1BO56-S WEG 1.5HP General Purpose Electric Motor, 1800RPM
Click Image to Expand

Product ID: 00158OT1BO56-S

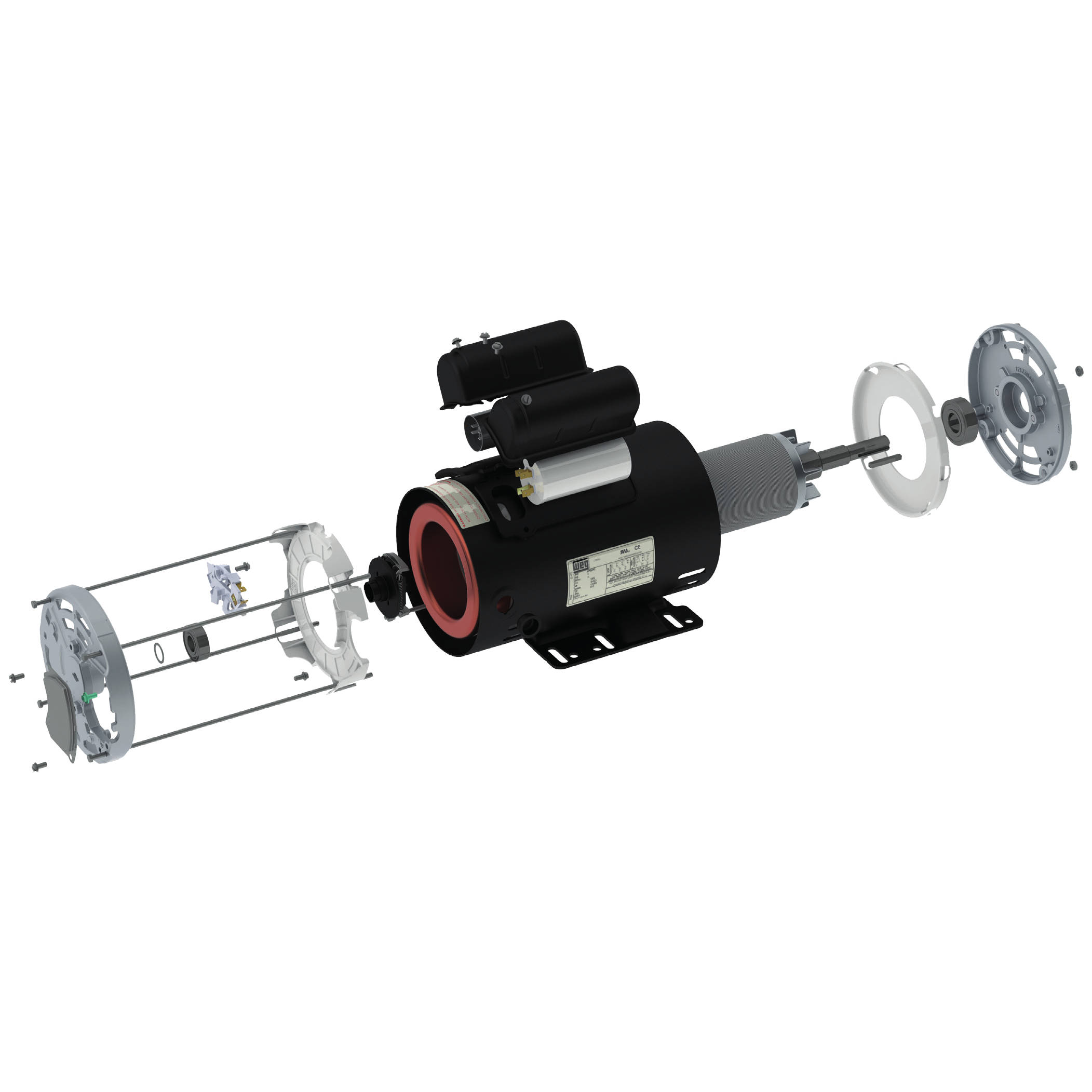

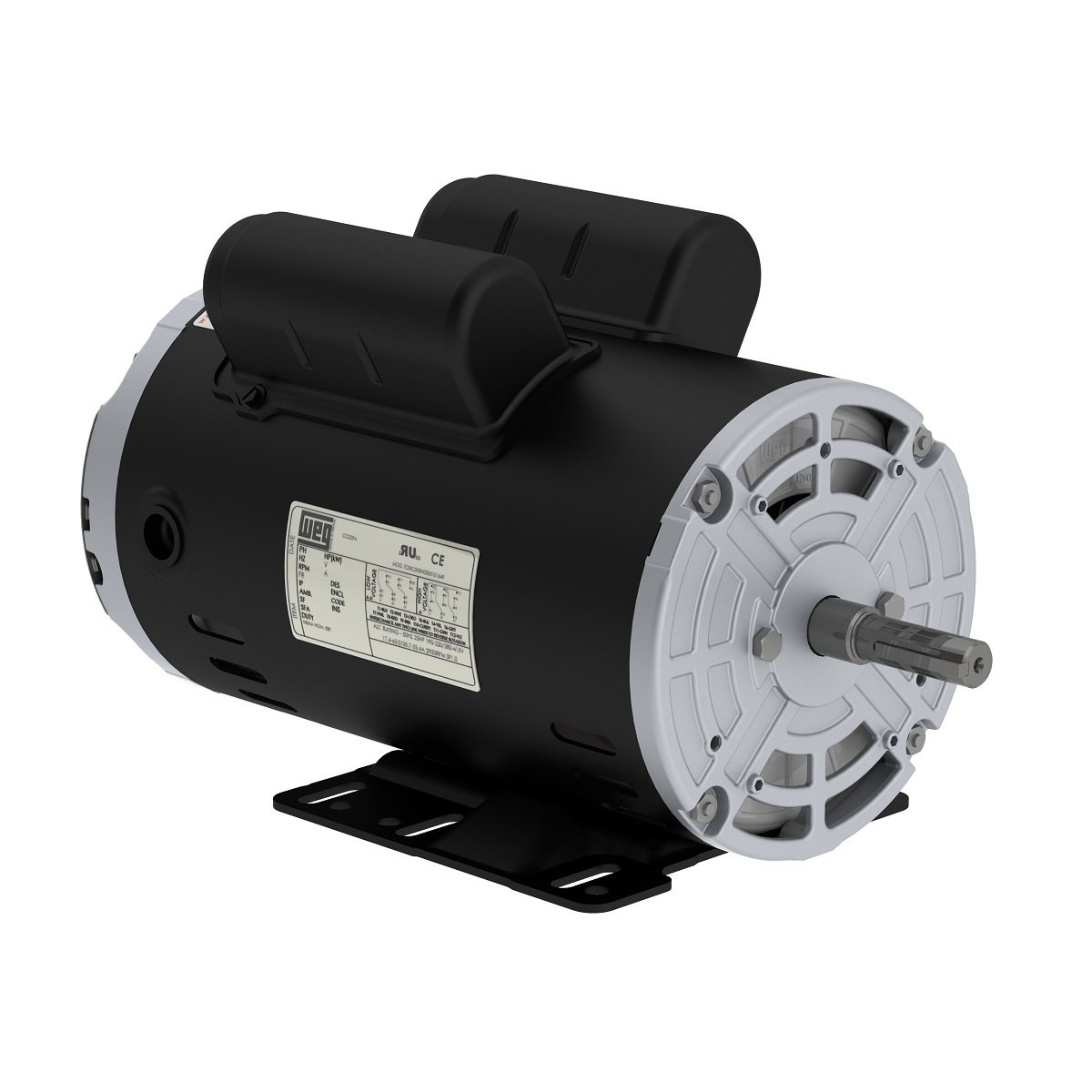

00158OT1BO56-S WEG 1.5HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158OT1BO56-S

Selected accessories will also be added to cart
$405.75 / Each
Quantity:
IC01 - ODP, 56H Frame, 115/208-230VAC Single Phase 60Hz, 13040606, Foot Mount, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56H
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 115/208-230 V
Rated current 13.0/7.52-6.49 A
L. R. Amperes 105/60.9-52.6 A
LRC 8.1x(Code K)
No load current 4.60/1.98-2.30 A
Rated torque 4.47 ft.lb
Locked rotor torque 320 %
Breakdown torque 229 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.1362 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 48.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
80.5  83.0  83.8

Power factor

50% 75% 100%
0.78  0.85  0.88

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
