/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/C-Face, Footless/00158OT1B56CFL-S WEG 1.5HP Electric Motor, 1800RPM

Product ID: 00158OT1B56CFL-S

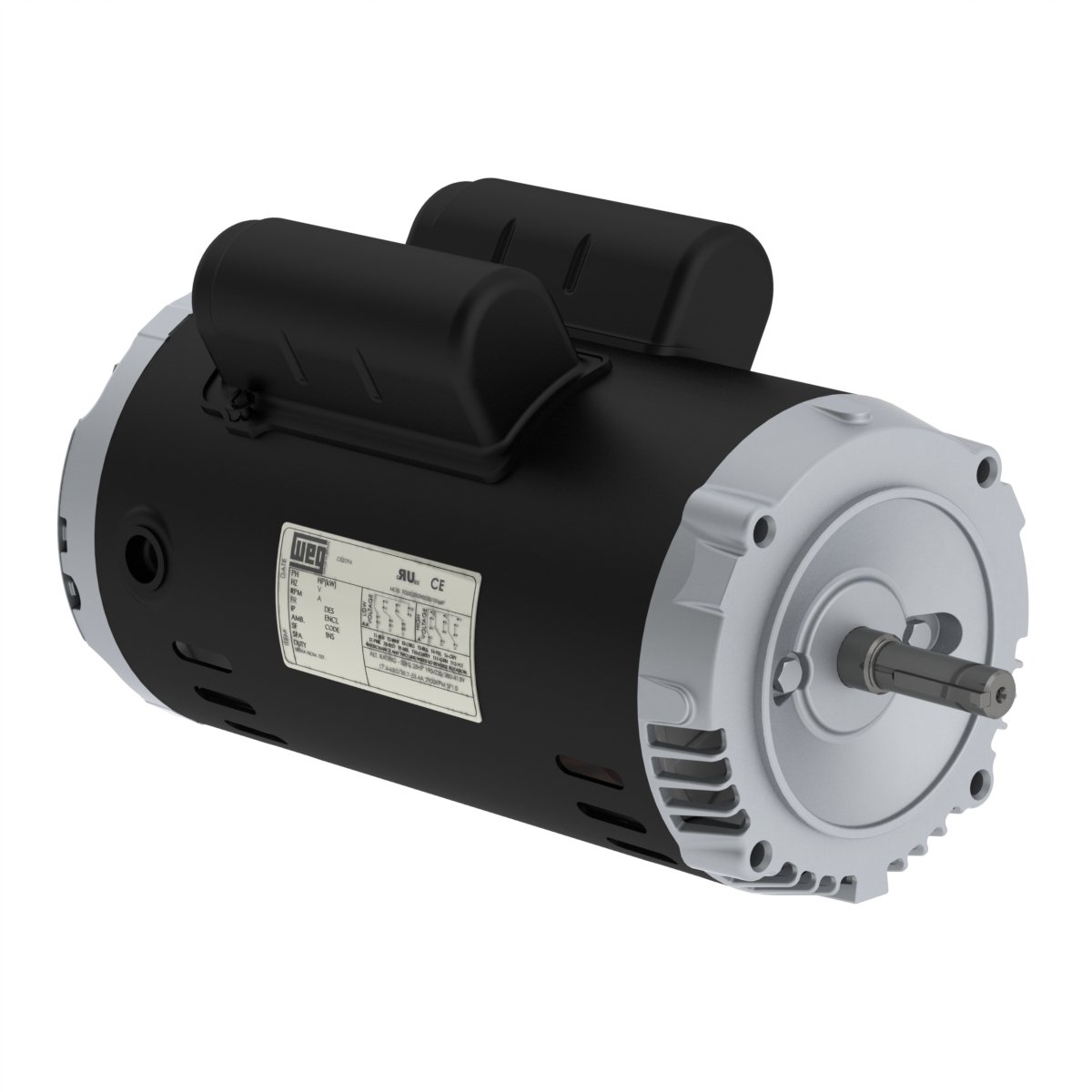

00158OT1B56CFL-S WEG 1.5HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158OT1B56CFL-S

Selected accessories will also be added to cart

$413.25 / Each

Quantity:

IC01 - ODP, 56C Frame, 115/208-230VAC Single Phase 60Hz, 13075826, C-Face, Footless, Rolled Steel, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	56C
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1740 rpm
Slip	3.33 %
Rated voltage	115/208-230 V
Rated current	13.0/7.52-6.49 A
L. R. Amperes	105/60.9-52.6 A
LRC	8.1x(Code K)
No load current	4.60/1.98-2.30 A
Rated torque	4.47 ft.lb
Locked rotor torque	320 %
Breakdown torque	229 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.1362 sq.ft.lb
Design	L
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	47.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.5	83.0	83.8

Power factor

50%	75%	100%
0.78	0.85	0.88

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
