/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/C-Face, Foot Mount/00158ET3E56C-S WEG 1.5HP General Purpose Electric Motor, 1800RPM

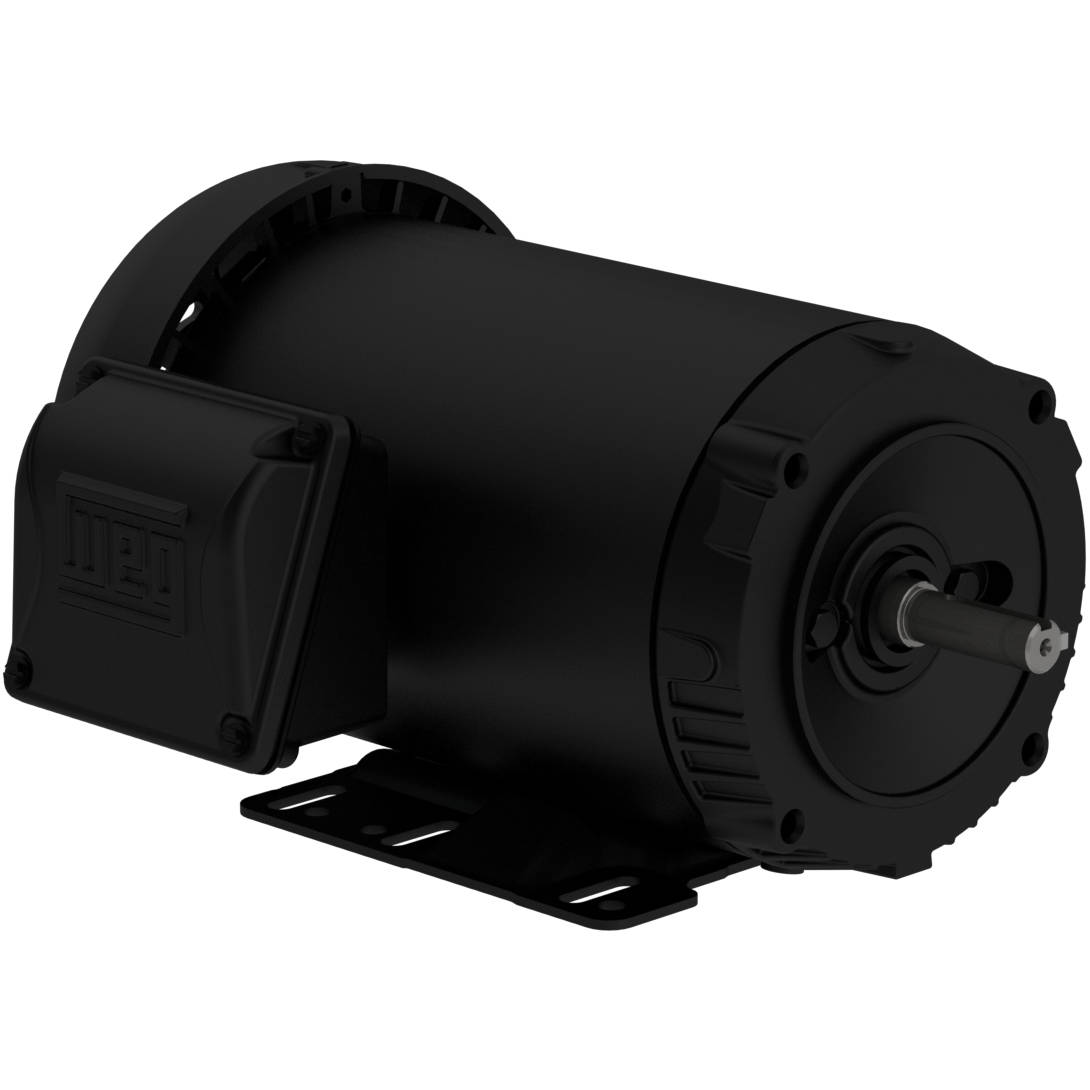

00158ET3E56C-S WEG 1.5HP General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00158ET3E56C-S

00158ET3E56C-S WEG 1.5HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158ET3E56C-S

Selected accessories will also be added to cart
$347.25 / Each
Quantity:
IC411 - TEFC, IP55, 56HC Frame, 230/460VAC 60Hz, 190-220/380-415VAC 50Hz 3 Phase, 13484358, 14799000, Rolled Steel, Foot Mounted, C-Face, 5/8" Keyed Shaft

Electric Motors

Frame 56HC
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 230/460 V
Rated current 4.04/2.02 A
L. R. Amperes 33.1/16.6 A
LRC 8.2x(Code K)
No load current 2.17/1.08 A
Rated torque 4.50 ft.lb
Locked rotor torque 270 %
Breakdown torque 300 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 0.1101 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 37.6 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  86.5  86.5

Power factor

50% 75% 100%
0.59  0.72  0.79
Frame 56HC
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1420 rpm
Slip 5.33 %
Rated voltage 190/380 V
Rated current 4.82/2.41 A
L. R. Amperes 29.4/14.7 A
LRC 6.1x(Code H)
No load current 2.13/1.07 A
Rated torque 5.55 ft.lb
Locked rotor torque 210 %
Breakdown torque 250 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.1101 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 37.6 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.7  84.7  82.7

Power factor

50% 75% 100%
0.67  0.78  0.84
Frame 56HC
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1430 rpm
Slip 4.67 %
Rated voltage 220/415 V
Rated current 4.38/2.32 A
L. R. Amperes 29.3/15.5 A
LRC 6.7x(Code J)
No load current 2.20/1.17 A
Rated torque 5.51 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.1101 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 37.6 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.2  84.9  83.6

Power factor

50% 75% 100%
0.62  0.75  0.82

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
